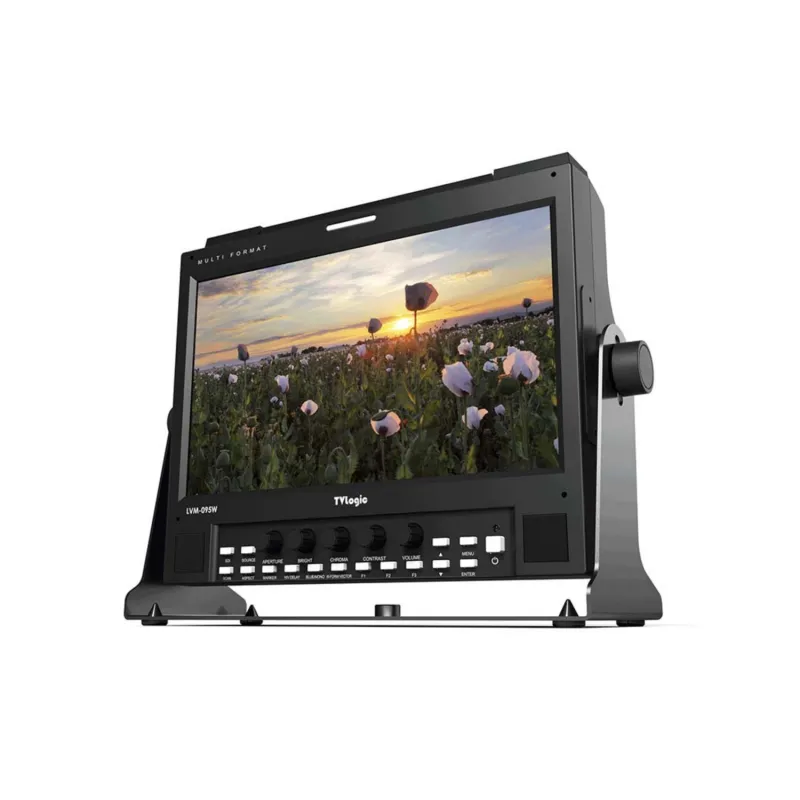

TVLogic 9 1080p LCD Production Monitor TVL-LVM-095W-N
SKU: 29070
Model: TVL-LVM-095W-N
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 3 435.44 su mokesčiais
The LVM-095W-N the new 9 released from TVLogic displays full HD resolution of 1920x1080. It also corresponds with a wide range of image sources (3G HD/SD-SDI, HDMI) and provides a wide viewing angle (176 degrees). For maximized efficiency and economic feasibility, LVM-095W-N is constructed from aluminum for an extra-light body weight and a holds a built-in V-Mount. Upgraded with new FHD panel with accurate color reproduction capability that exactly meets the HDTV standards, LVM-095W-N gives super clear picture quality with powerful features.
| Type of Product | LCD Monitor |
| Type of Product | Studio Accessories |
| Type of Product | LCD Hood |
| LCD monitors | rakstītājs |
| LCD monitors | monitors |
| Connector | 3,5mm |
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Displays the Luma(Y) level of the input image in colors. Each pixels Y analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Analyzes the input signals Luma (Y) and chroma (C) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
