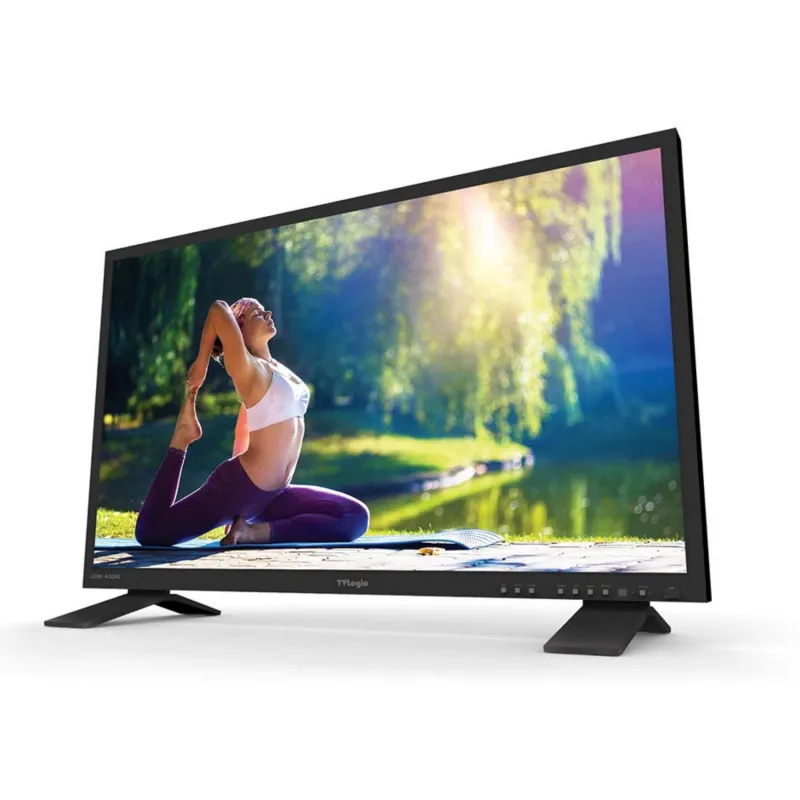

TVLogic 42.5 UHD 4K HDR Emulation Monitor TVL-LUM-430M2
SKU: 29061
Model: TVL-LUM-430M2
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 6 579.45 su mokesčiais
The LUM-430M2 is a 4K/UHD monitor with a 42.5 True UHD(3840x2160) resolution and True 10-bit drivers. It supports 12G/6G/3G-SDI inputs and an HDMI 2.0 input. It supports various professional functions including Waveform/Vectorscope, CC-608, 708 and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
| Type of Product | LCD Monitor |
A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as HDR Emulation monitor in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
