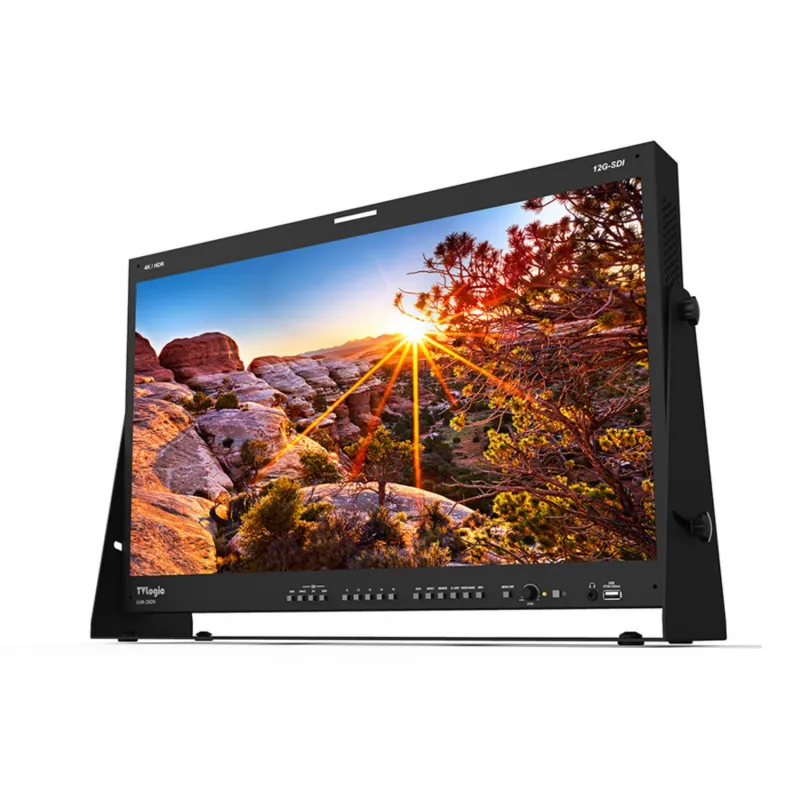

TVLogic 24 4K/UHD High Brightness HDR Emulation Monitor TVL-LUM-242H
SKU: 29035
Model: TVL-LUM-242H
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 7 099.45 su mokesčiais
- 24" Monitor with 3840 x 2160 Resolution
- 500 cd/m² Brightness, 178° Angle of View
- HDMI Input, 12G-SDI Input/Output
- Emulates HDR Brightness, PQ & HLG
- 1200:1 Contrast Ratio, Video Tools
- Speaker & Headphone Output
- Calibration, Closed-Caption Support
| Type of Product | LCD Monitor |
The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,000cd/, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle. The LUM-242H supports various standard color gamuts including 90% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0 input.
A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as HDR Emulation monitor in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
