TVLogic 18.5 Wide Viewing LCD Monitor TVL-LVM-180A
SKU: 29034
Model: TVL-LVM-180A
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 2 709.44 su mokesčiais
- 1920 x 1080 Resolution IPS LCD Screen
- Composite, 3G-SDI A/B, HDMI & DVI Inputs
- 1 x Composite & 1 x 3G-SDI Output
- 500 cd/m² Brightness, 178° Viewing Angle
- 3.5mm Audio Headphone Output
- GPI & Ethernet Control
- Waveform, Vectorscope, Audio Meter
- Focus Assist, H/V Delay, Key Lock, Zoom
- TVLogic Color Calibration Utility & More
| Type of Product | LCD Monitor |
| Type of Product | Studio Accessories |
| Type of Product | LCD Hood |
| LCD monitors | rakstītājs |
| LCD monitors | monitors |
| Connector | 3,5mm |

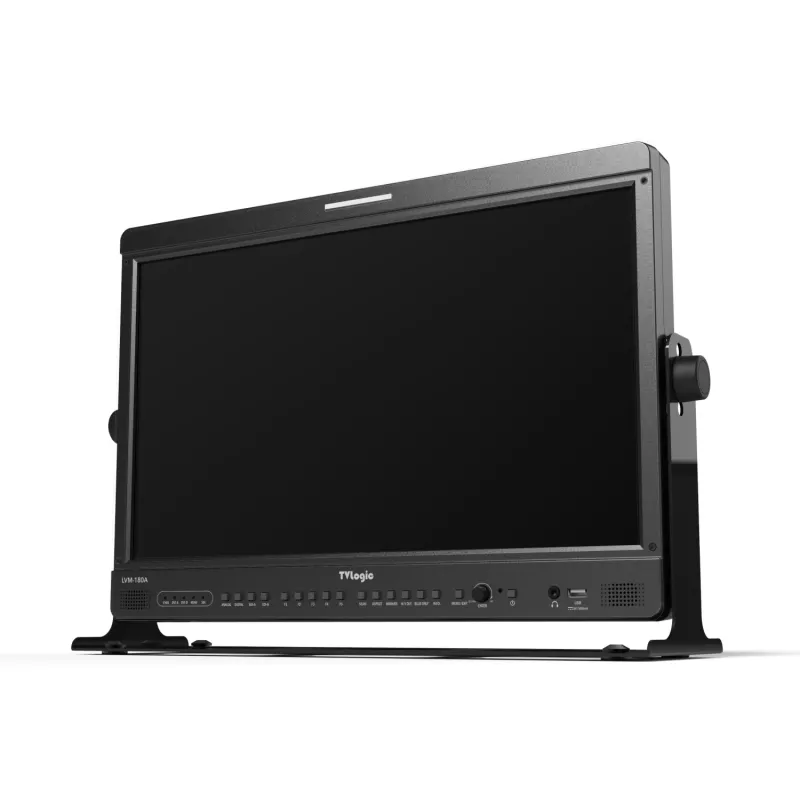

The 18.5" 3G-SDI/HDMI Wide-View LCD Broadcast Monitor from TVLogic features a 1920 x 1080 IPS LCD screen and HDMI, DVI, 3G-SDI, and composite BNC inputs, as well as 3G-SDI and composite outputs. It also features a 3.5mm headphone output and both LAN and GPI ports for remote control. A stand is also supplied for desktop-mounting the monitor.
The monitor has a slim design with fairly small bezels. Built-in software features include waveform, vectorscope, closed caption, audio meter, and numerous broadcast image tools. The monitor has a brightness of 500 cd/m² and a wide viewing angle of 178°.
Key Features
- 18.5" IPS LCD screen
- 1920 x 1080 native resolution
- 3G-SDI level A/B, HDMI, composite BNC, and DVI inputs
- 3G-SDI and composite BNC outputs
- 3.5mm headphone output
- 500 cd/m² brightness
- 178° viewing angle
- LAN and GPI remote control ports
Software Features
- Waveform/vectorscope
- Audio level meter display
- Blue only
- Focus assist
- H/V delay
- Key lock
- Marker
- Mono
- Range error
- Timecode display
- UMD
- User aspect
- Various scan modes
- Zoom
- 3D LUT
- Adjustable gamma
- CC-608 ANC
- CC-608 LINE 21
- CC-708
- OP42
- OP47
- TVLogic color calibration utility
