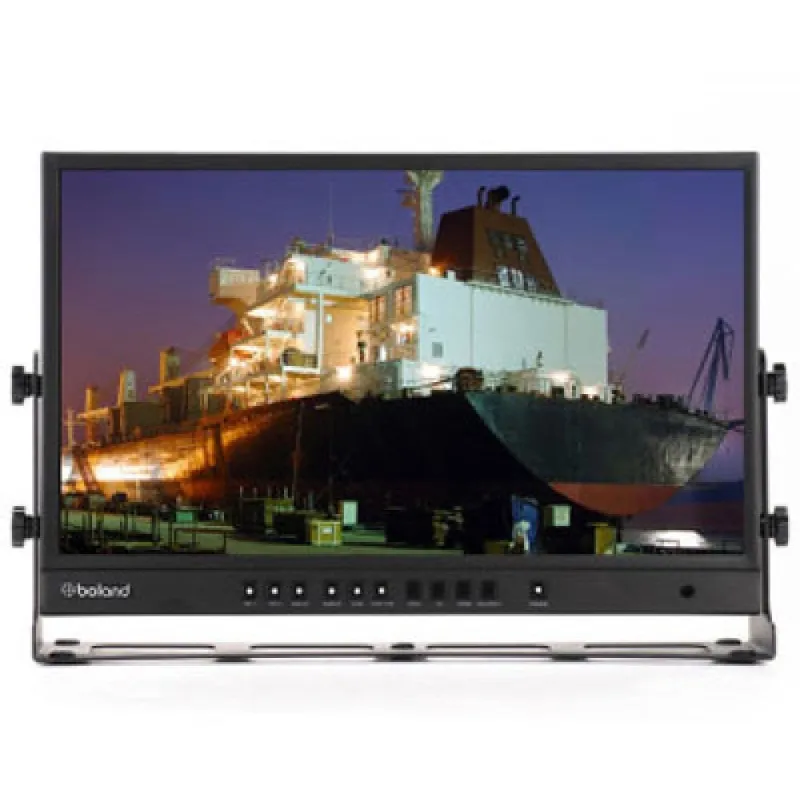

Boland LVB21 LED Broadcast Monitor 21 inch

Boland LVB21 LED Broadcast Monitor 21 inch (LVB21)

Boland Communications, established in 1979 and headquartered in Lake Forest, California, USA provides premium quality LCD and LED monitors available in world wide formats. Boland Broadcast Monitors stand for amazing images with enhanced Ultra Pixel picture quality in varying light and viewing conditions.

Boland LVB21 LED Broadcast Monitor 21 inch Features

21 HD & SD SDI Digital, Analog, HD HDMI/DVI (+HDCP)
High & Standard Definition Video LCD Monitors 1080/720/576/480(@60/59.94/50)
3G includes 2x3G HD/SD SDI-Digital input/ HD HDMI/DVI (+HDCP)
HDMI/DVI inputs accepts up to 1080p HD
Modes: EGA to UXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
Analog Inputs are Composite, Y/C, Component, RGB(SOG), DVI I(Analog PC)
Aspect Ratio: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1:
Marker Display
UMD Support

Specifications

Active Area (Diagonal): 21.5
Color Temperature User, VAR, 11000K, 9300K, 6500K, 5400K, 3200K

Modes

High & Standard Definition Video Modes: 1920x1080p(50/60/30psf/25psf/24psf/30/25/24),1920x1080i(50/60), 1280x720p(50/59.94/60), 480i(59.94),576i(50)
Digital, VESA VGA, DVI/HDMI
*24psf/23.98psf signal format is not supported in UNDERSCAN Mode
PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA
Standard Definition Video Modes: NTSC/PAL/SECAM/NTSC4.43/PAL-M
Scanning Modes: Under/Over/Zero/Pixel to Pixel Scanning

Inputs

Digital Video Inputs: 3G HD SDI (@50/59.94/60), HD HDMI/DVI (+HDCP)
Digital Video Inputs: Digital Visual Interface, VESA & SMPTE Rates
Analog Video Inputs: Composite, Y/C, Component, RGB(SOG), DVI I(Analog PC)


Aspect Ratios: Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
Picture-in-Picture : Analog (Composite1, 2, 3, Y.Pb.Pr, GBR, PC),SDI 1 inputs + SDI 2, Digital (DVI, HDMI) input PIP
Picture-by-Picture: Side by Side split screen display
Pixel (RGB Trio) Arrangement: 1920 H x 1080 V Pixels RGB strip arrangement(2,073,600 Pixes, 16:9)
Pixel (RGB Trio) Pitch, Depth: 0.08265 x 0.24795mm
Brightness, typical, 0: 250 cd/m2
Contrast Ratio, 0 1000:1
Color Processor: 10 bit color Processor
Viewing Angle Horizontal: 178(Typ),Vertical 178(Typ), 1000:1
Response Time: 5 MS

Controls

User Controls: STANDBY, SDI 1, SID 2, ANALOG, MARKER, FUNCTION, MENU, UP, DOWN, SEL/INPUT
Remote Controls: IR, TCP/IP, RS-422, RS-232

Backlight

Light Source (standard): LED backlight system
LED Life: 12,000 Hrs

Connectors

Video Connectors: BNC x 2 SDI 2 Channel Input, BNC x 3 Composite, YC(S-Video), Component(YPbPr/RGB) Input
HDMI/DVI Connectors: DVI-I x 1 DVI & Analog RGB Input, HDMI x 1 HDMI Input

Power

DC Power: 12 VDC 10%, 40 watts
DC Connector: XLR-4M (pin 1=Gnd, pin 4=+volts)
AC Power (detached power supply included): 90-264 VAC, 50/60 Hz
AC Power Connector: IEC 320-C14 3 pin Male

Display

Cabinet Dimensions: 20.197 x 12.551 x 2.165
Weight: 20.7 lbs
Mounting / Rack Mounting: VESA (100 x 100)
Operating (full spec): 0 ~ +50C, no condensation, 0 ~ 10,000 feet (3,048m)
Storage: -20 ~ +60C, no condensation, 0 ~ 40,000 feet (12,192m)
Available Options:

For further technical data go to download section.
