Atomos Shogun AV-19

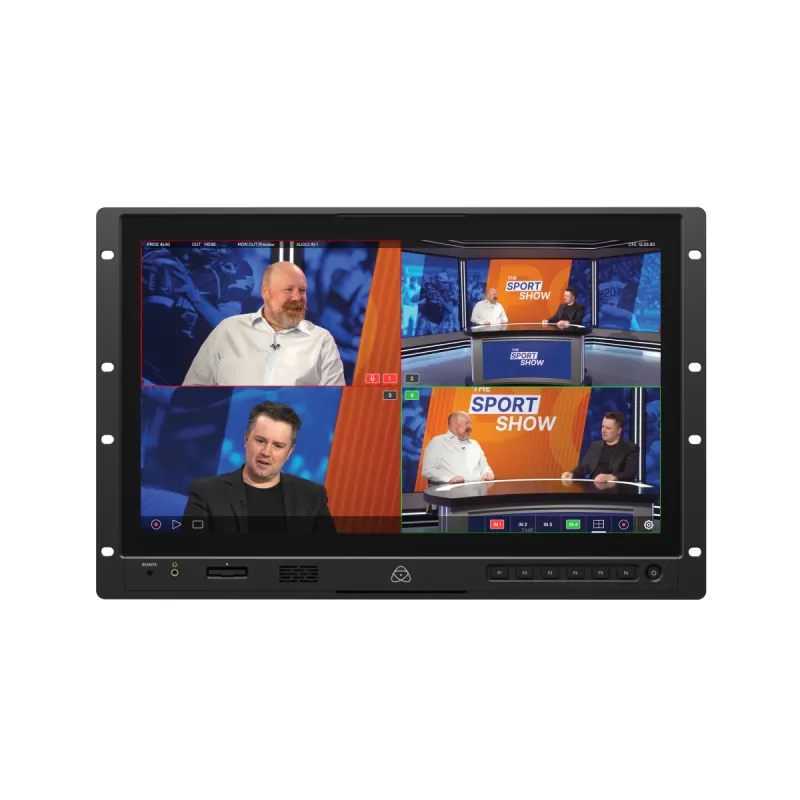

The ATOMOS Shogun AV-19 isa powerful19" 4K HDR DCI-P3 monitor-recorder-switcher designed for professional live production, broadcast, and video village environments.
With 4 SDI inputs, ISO recording, live multi-camera switching, NDI HX3 over Ethernet, ProRes/DNx/ProRes RAW formats, XLR audio, and advanced monitoring tools, it provides a complete monitoring, recording, and switching workflow for modern studio and outdoor broadcast environments.
Its rugged rackmount design (7RU) and sharp DCI-P3 display make it the ideal central hub for multi-camera monitoring and recording. It offers built-in live switching with four ISO inputs and a fifth program channel for smooth real-time operation.
Key features:

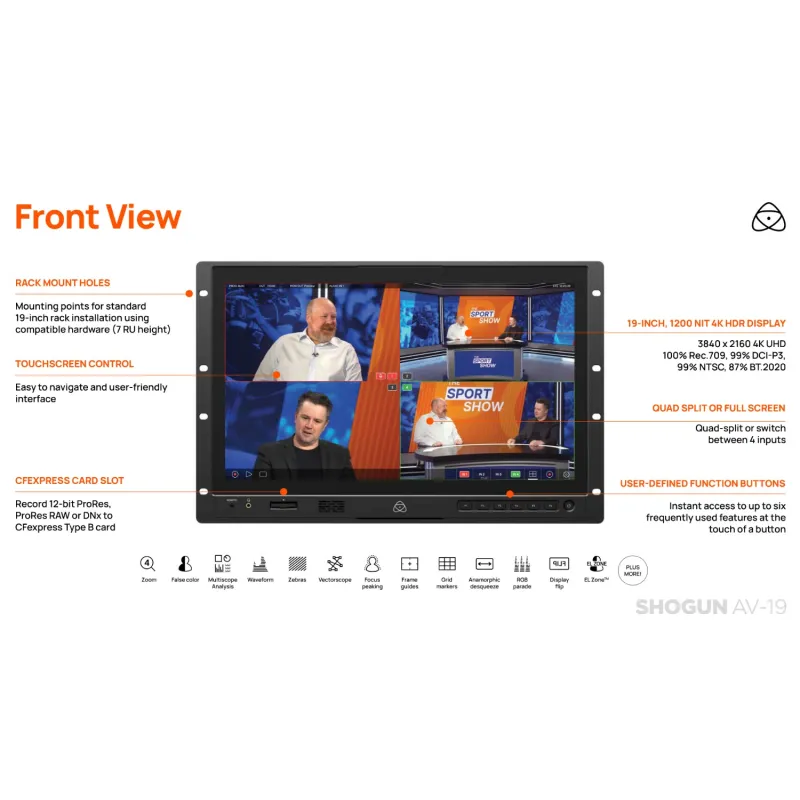

- 19" 4K HDR DCI-P3 monitor in a 7RU rack
- Recording of up to four separate camera inputs (ISO) plus a fifth program output
- Live switching of multiple cameras: 4× ISO + 1× Program

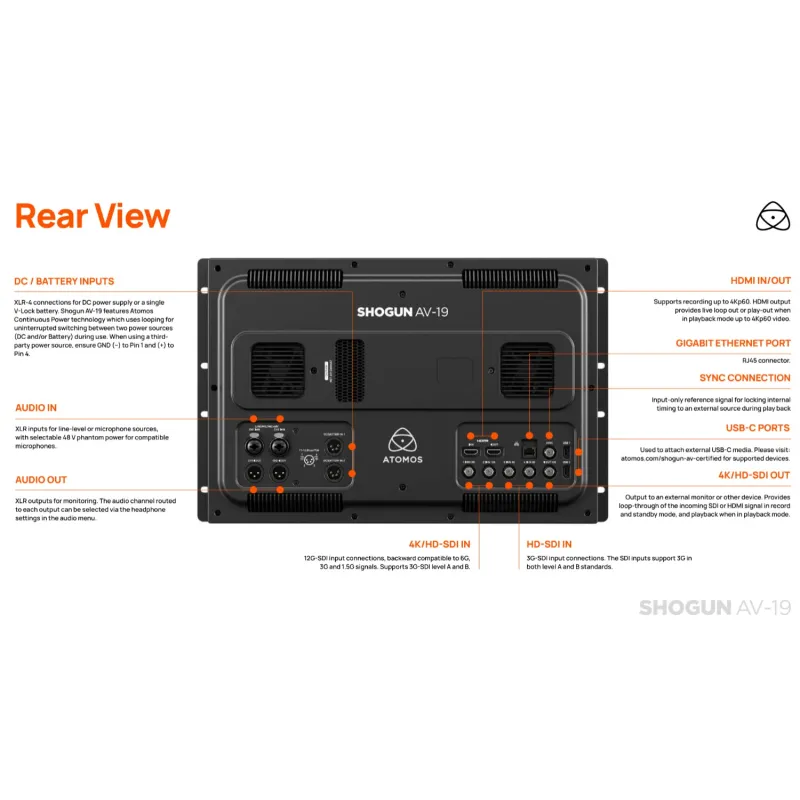

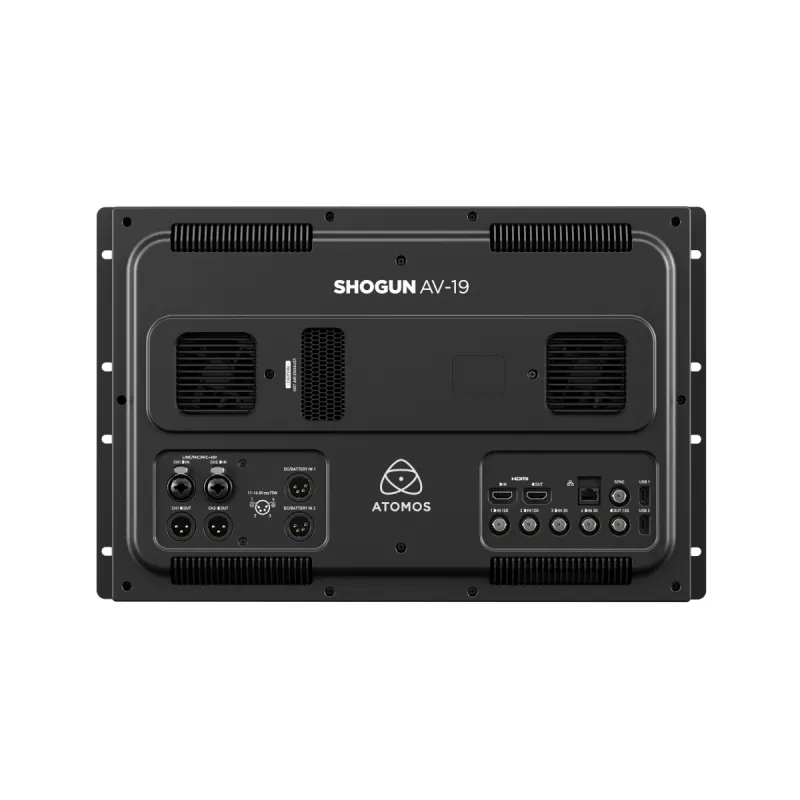

- 2× 12G-SDI + 2× 3G-SDI inputs, 12G-SDI output, HDMI input/output with XLR audio
- Professional monitoring: EL Zone™, waveform, vectorscope, focus peaking, LUT support
- Log → LUT display with 3D and .cube LUT support
- Recording via SDI or HDMI: Apple ProRes, ProRes RAW, and Avid DNx up to 10-bit 4:2:2
- Recording to ProRes, ProRes RAW, and Avid DNx on CFexpress or external storage via USB-C
- Camera control (including key exposure settings) and touch focus on supported cameras
- Flexible media: internal CFexpress or recording via USB-C
- Native NDI HX3 + Ethernet: high-quality, low-latency IP video over a single RJ45 cable
- Professional calibration support for accurate HDR / Rec.709
- NDI® HX3 transmission and reception via Ethernet
- User-definable function buttons
- Backup recording for redundancy
- Comprehensive technical monitoring tools including EL Zone™ (false color), focus peaking, waveform, and more
- Integrated audio system: dual balanced XLR I/O with 48V phantom power, embedded SDI/HDMI audio, speakers, and headphone monitoring
Package contents:
- Shogun AV-19 monitor-recorder-switcher
- 4-pin XLR power supply
- 5× international IEC power cable
- Rack nuts and screws (×10)
- Screen cleaning cloth
- Quick Start Guide
| Type of Product | LCD Monitor |
| LCD monitors | monitor mount |
| LCD monitors | accessories |
| Connector | XLR |
| Connector | USB-C įkrovimas/ryšys |
| Connector | USB-C |
| Connector | HDMI |
| Connector | SDI |
The ATOMOS Shogun AV-19 isa powerful19" 4K HDR DCI-P3 monitor-recorder-switcher designed for professional live production, broadcast, and video village environments.
With 4 SDI inputs, ISO recording, live multi-camera switching, NDI HX3 over Ethernet, ProRes/DNx/ProRes RAW formats, XLR audio, and advanced monitoring tools, it provides a complete monitoring, recording, and switching workflow for modern studio and outdoor broadcast environments.
Its rugged rackmount design (7RU) and sharp DCI-P3 display make it the ideal central hub for multi-camera monitoring and recording. It offers built-in live switching with four ISO inputs and a fifth program channel for smooth real-time operation.
Key features:
- 19" 4K HDR DCI-P3 monitor in a 7RU rack
- Recording of up to four separate camera inputs (ISO) plus a fifth program output
- Live switching of multiple cameras: 4× ISO + 1× Program
- 2× 12G-SDI + 2× 3G-SDI inputs, 12G-SDI output, HDMI input/output with XLR audio
- Professional monitoring: EL Zone™, waveform, vectorscope, focus peaking, LUT support
- Log → LUT display with 3D and .cube LUT support
- Recording via SDI or HDMI: Apple ProRes, ProRes RAW, and Avid DNx up to 10-bit 4:2:2
- Recording to ProRes, ProRes RAW, and Avid DNx on CFexpress or external storage via USB-C
- Camera control (including key exposure settings) and touch focus on supported cameras
- Flexible media: internal CFexpress or recording via USB-C
- Native NDI HX3 + Ethernet: high-quality, low-latency IP video over a single RJ45 cable
- Professional calibration support for accurate HDR / Rec.709
- NDI® HX3 transmission and reception via Ethernet
- User-definable function buttons
- Backup recording for redundancy
- Comprehensive technical monitoring tools including EL Zone™ (false color), focus peaking, waveform, and more
- Integrated audio system: dual balanced XLR I/O with 48V phantom power, embedded SDI/HDMI audio, speakers, and headphone monitoring
Package contents:
- Shogun AV-19 monitor-recorder-switcher
- 4-pin XLR power supply
- 5× international IEC power cable
- Rack nuts and screws (×10)
- Screen cleaning cloth
- Quick Start Guide
