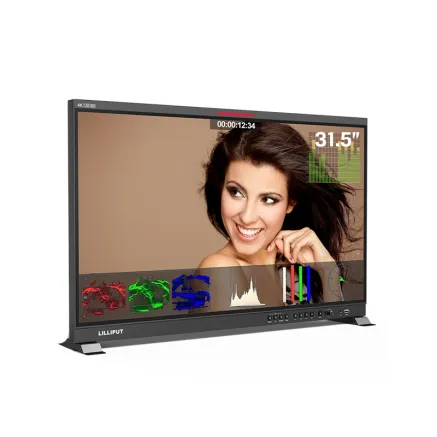

Lilliput 31.5 12G-SDI/HDMI Broadcast Studio Monitor LILLI-Q31
SKU: 10867
Model: LILLI-Q31
Ean: 6950821601877
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 2 765.46 su mokesčiais
The Lilliput 31.5" 12G-SDI/HDMI Broadcast Studio Monitor is a 31.5" native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single-, dual-, and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical color work, the monitor supports the PRO/LTE version of LightSpace CMS (not included).
Features
- Display: 31.5 inch
- 3840X2160,330 cd/m2,1300:1
- Viewing Angle: 176°/176° (H/V)
- Input:2X12G-SDI , 2X3G-SDI, 1XHDMI 2.0, 1X12G SFP (option)
- Output:2X12G-SDI , 2X3G-SDI, 1XHDMI
- 2.0 Software
- Remote control application by LAN /RS232 - Color Temp, color Gamut, 3D-LUT, HDR, Gamma, UMD, Time code etc
Contents
- 15V DC Adapter
- VESA mount Plate
- V-mount Battery PLate
- Base bracket
- USB Flash Disk
| Audio In / Out (48 kHz PCM Audio) | |
| Built In Speakers | 2x |
| Ear Jack | 3.5mm |
| Display | |
| Aspect Ratio | 16:9 |
| Brightness | 350cdm² |
| Contrast Ratio | 1300:1 |
| Resolution | 3840 x 2160 |
| Technology | Calibration to REC.709 with optional calibration unit |
| Viewing Angle | 178° / 178° (H/V) |
| HDR | ST2084 - 300/ 1000/10000/HLG |
| LUT Support | 3D LUT (.cube format) |
| Screen Size | 31.5" |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / Arrilog / JLog / User |
| Remote Control | |
| GPI | 1 |
| LAN | 1 |
| Supported Formats | |
| HDMI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 |
| SDI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| SFP Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| Video Loop Output | |
| HDMI Video Loop Output | 1x HDMI 2.0 |
| SDI Video Loop | 2x12G, 2x3G (Supported 4K-SDI Formats Single / Dual / Quad Link) |
| Connections | |
| HDMI Video Input | 1x HDMI 2.0 |
| SFP | 1x 12G SFP+ (Fiber module optional) |
| SDI Video Input | 2x12G, 2x3G (Supported 4K-SDI Formats Single / Dual / Quad Link) |
| Size | |
| Dimensions | 567 x 377 x 46mm |
| Weight | 7.4Kg |
| Power | |
| Battery | V-Lock or Anton Bauer Compatible (Battery not included - requires 14.8V) |
| Input Voltage | DC 12-24V |
| Power Consumption | =< 32.5W (15v) |
| Environment | |
| Operating Temperature | 0°c - 40°c |
| Storage Temperature | -20°c - 60°c |
