StudioKing Truss Triangle 90 Degree Corner Piece Flat Side Up

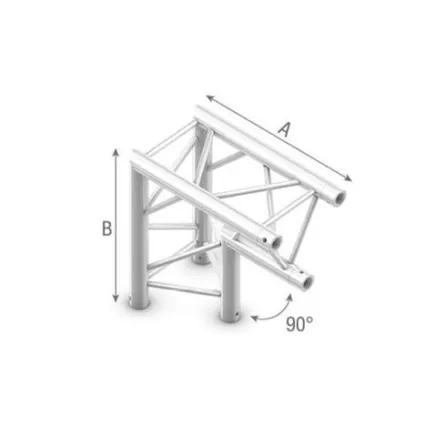

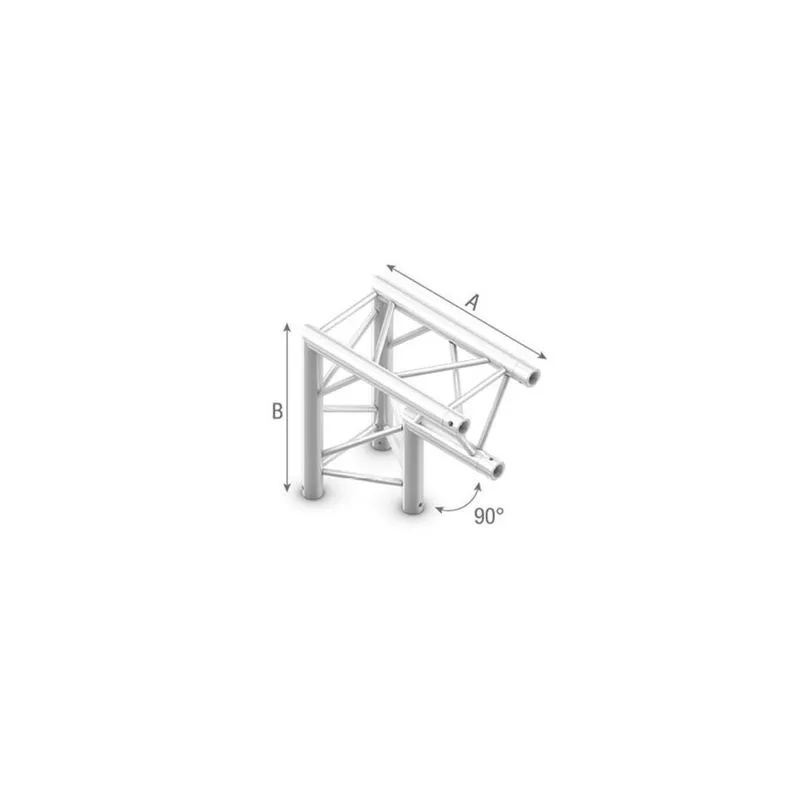

Are you looking for high quality Truss systems? The StudioKing Truss Triangle 90 Degree Corner Piece Flat Side Up is a versatile and sturdy truss component perfect for professional events and installations. With a length of 400 mm pictured (A) and a height of 400 mm (B), this corner piece provides a solid foundation for creating strong and stable truss structures.

Key features

• High-quality Polish: For a professional appearance.
• Lightweight: Compact and lightweight.
• Carrying load: Suitable for high load.

Weighing only 2.2 kg, this corner piece is convenient and easy to handle when setting up and taking down truss setups. The main tube has a diameter of 32 x 1.5 mm, while the brace tube has a diameter of 10 x 1.5 mm.

The corner piece is finished with a high-quality polish, giving it a professional look and perfect fit for various event themes and styles. The silver color adds a touch of elegance to the truss structure and makes it easy to combine the corner piece with other truss components.

Designed specifically as a corner joint, this corner piece has a truss angle of 90°. It provides the ability to build and reinforce truss structures in various configurations.

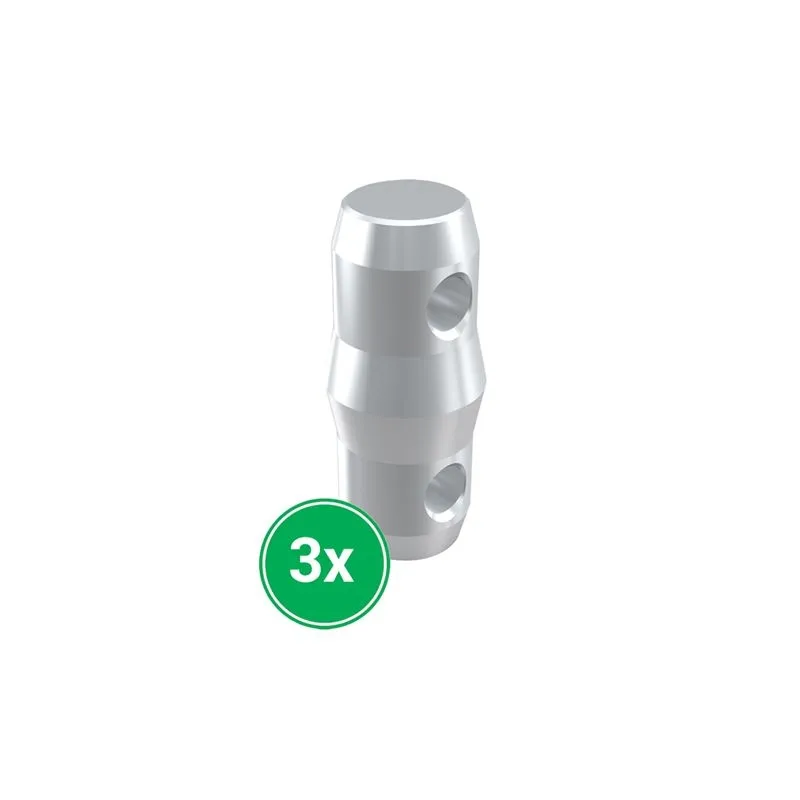

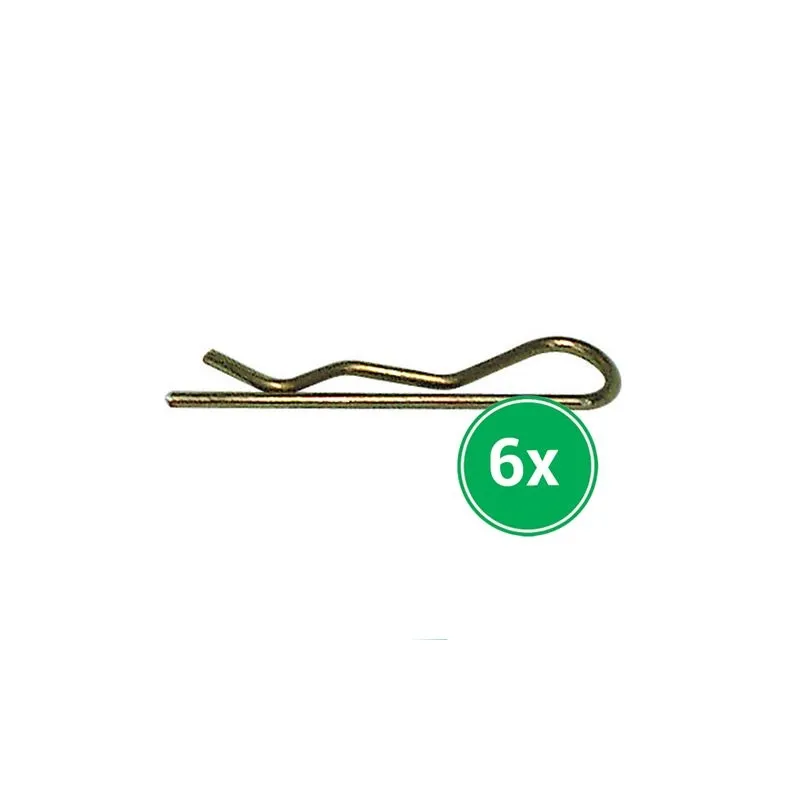

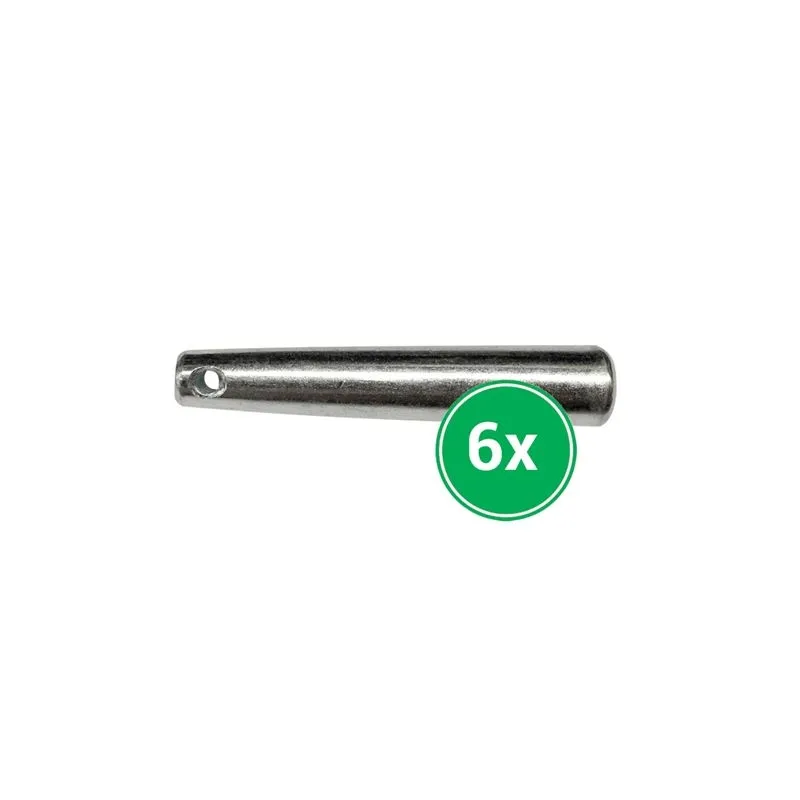

When you purchase the StudioKing Truss Corner Piece Flat Side Up, you will also receive a set of useful accessories, including 3x Spigot, 6x Safety Pin and 6x Lock Pin. These accessories provide secure attachment of the triangle truss to other truss components. They are also available separately and can be found under optional accessories. The trusses and couplers are made of aluminum, while the locking pins are made of galvanized steel. Because trusses are made of aluminum, they have better resistance to water, making them suitable for outdoor use. However, it is important to note that aluminum is susceptible to rust. Therefore, we do not recommend long-term outdoor use. Nevertheless, it is often observed in practice that they do get used outdoors.

In short, the StudioKing Truss Triangle 90 Degree Corner Piece Flat Side Up offers the perfect combination of functionality and durability. With this corner piece, you can create solid and secure truss structures for a wide range of events and installations.
