Blackmagic Design Blackmagic PYXIS 12K EF Digital Film Camera with 12K Sensor CINECAMCPYXN12LFEF

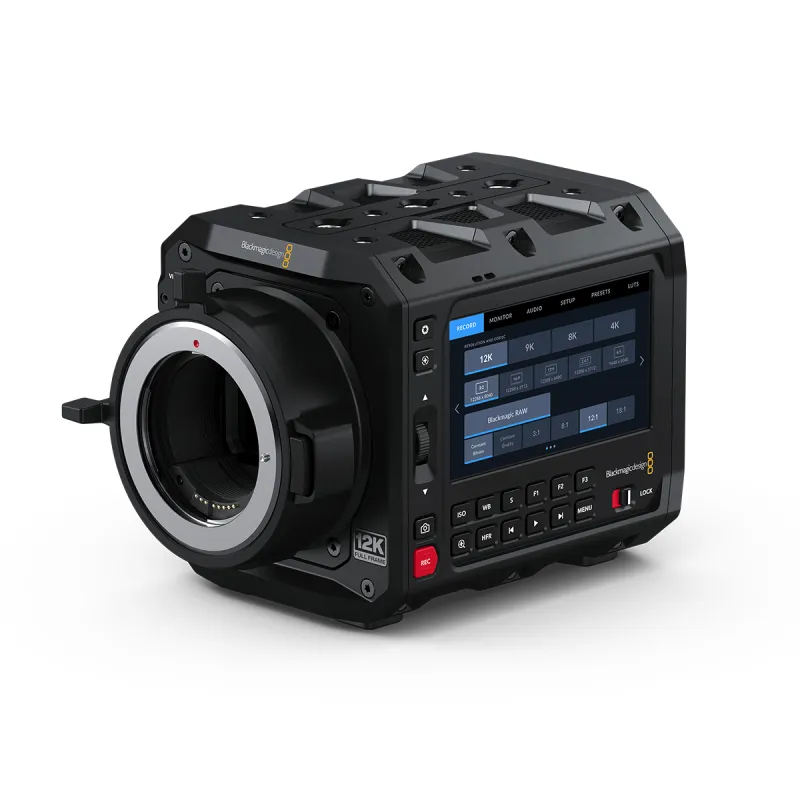

Introducing the Blackmagic PYXIS Digital Film Camera

The Blackmagic PYXIS is a cutting-edge digital film camera featuring a 12K RGBW sensor and a customizable design. It utilizes the same sensor as the URSA Cine 12K LF, boasting a remarkable 16-foot dynamic range and 10G Ethernet connectivity, with availability expected in July 2025.

Key Specifications

• Supports resolutions from HD to 12K
• Full-frame sensor with native resolutions of 6048 x 4032 or 12288 x 8040
• Records up to 40 fps at full resolution and 112 fps at 4K
• Built-in 4 HDR touchscreen display for easy monitoring
• Two CFexpress card slots for high-speed recording
• Records in Blackmagic RAW and HD H.264 proxies
• Streaming capabilities via RTMP and SRT

Enhanced Features

The PYXIS allows for true cinematic shots with shallow depth of field and supports anamorhpic lenses without cropping. Its built-in hardware streaming engine enables real-time uploads to Blackmagic Cloud, facilitating immediate access for post-production teams.

Versatile Connectivity

With a range of connectors for audio, monitoring, and power, the PYXIS includes a 12G-SDI output for extended cable runs. Users can choose between L-Mount, EF, or PL lenses, making it compatible with a wide array of film and photography lenses.

Key Features Summary

• 36 x 24 mm full-frame RGBW 12K sensor
• Open gate 32 and full height 65 anamorphic formats
• Fast recording on CFexpress cards
• Mobile streaming via Ethernet or cellular data
• Professional mini XLR input with phantom power
