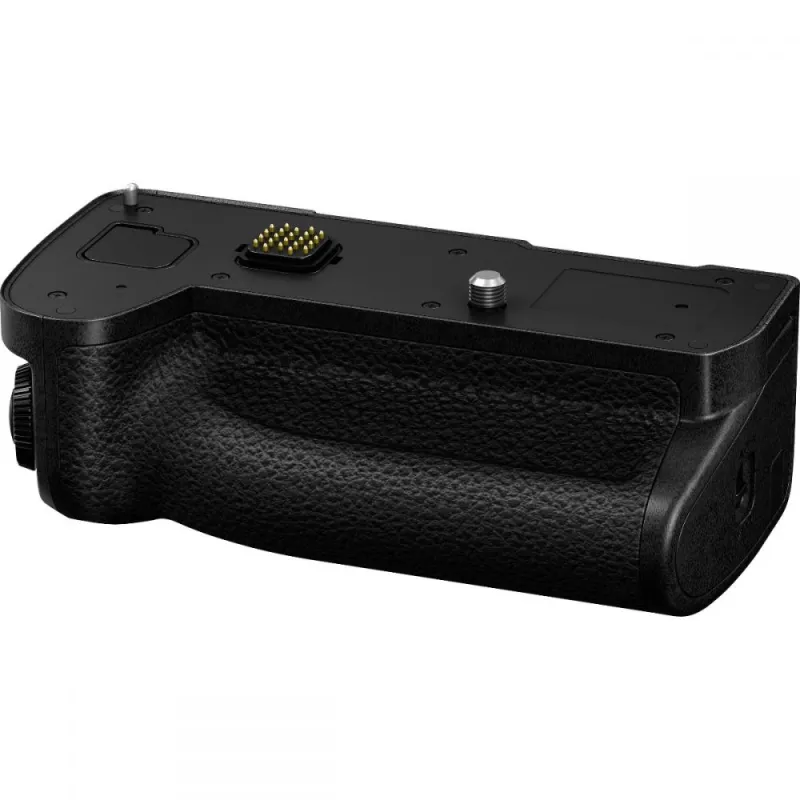

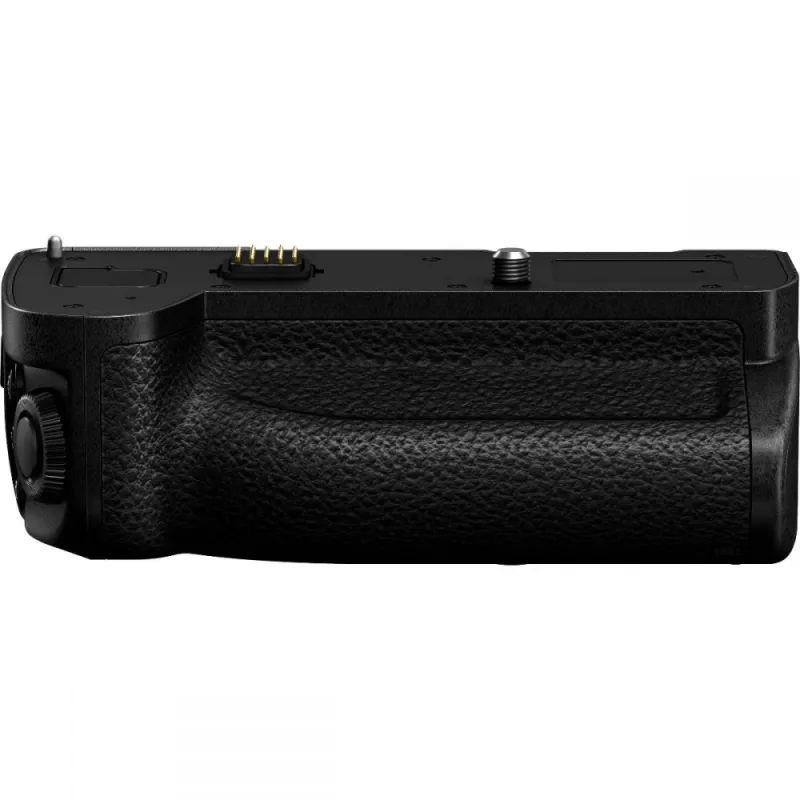

Panasonic DMW-BGS5E Battery Grip for LUMIX S5

Extended Battery Life for Active Outdoor Shooting
By using two batteries — one in the camera and the other in the grip*, the DMW-BGS5 doubles the battery life for extended shooting.
* A battery pack is not included in the DMW-BGS5.

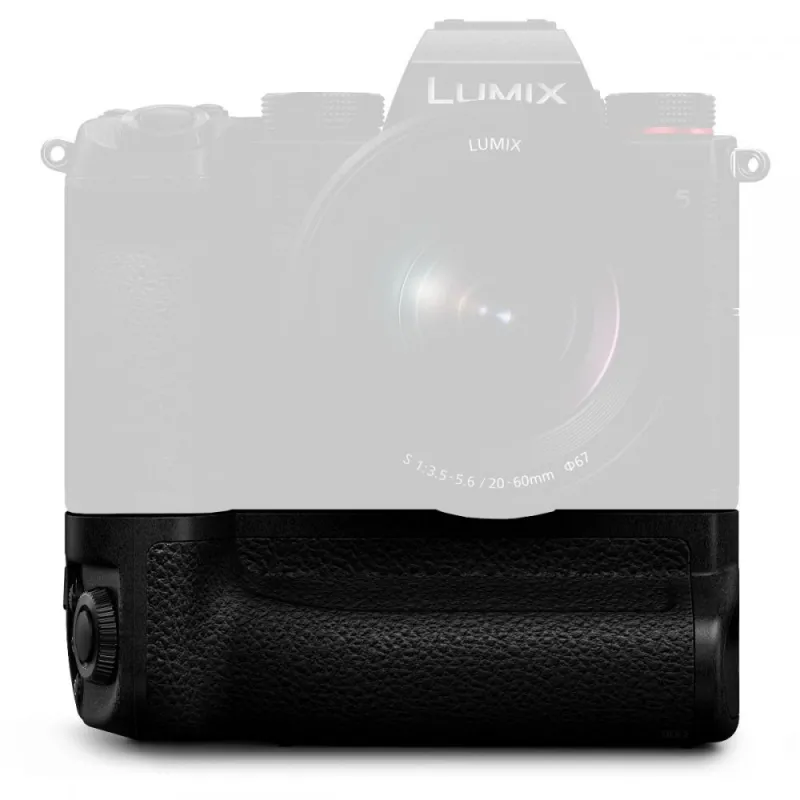

Exclusively designed for the LUMIX S5
This accessory extends the ergonomics of the camera, even when shooting vertically. It perfectly matches the camera, featuring the same style of buttons and intuitive joystick control.

Dust and splash-resistant
Splash Resistant works in conjunction with the lenses that were specifically designed to support this feature. Dust and Splash Resistant does not guarantee that damage will not occur if this battery grip is subjected to direct contact with dust and water.

Technical Specifications

Dimensions (W x H x D)

Approx. 132.4 x 45.2 x 67.6 mm / 5.21 x 1.78 x 2.66 inch
(excluding the projecting parts)

Weight

Approx. 321 g / 0.708 lb (main unit, terminal cap and battery)
Approx. 240 g / 0.530 lb (main unit and terminal cap)

Battery

DMW-BLK22 (li-ion battery pack: 7.2V, 2200mAh, 16Wh) (sold separately)

Battery Life* (CIPA standard)

Approx. 840 images (rear monitor) with DC-S5 and S-R2060
* One in the camera and another in the battery grip.

Operation

Operation ON/OFF Switch
Shutter Button
Joystick
AF ON Button
White Balance Button
ISO Sensitivity Button
Exposure Compensation Button
Front Dial
Rear Dial
Fn Button

Dust and Splash Resistant

Yes
*Dust and Splash Resistant does not guarantee that damage will not occur if this battery grip is subjected to direct contact with dust and water.

Operating Temperature

0 - 40 °C / 32 - 104 °F

Operating Humidity

10 - 80 %RH (no condensation)

Standard Accessory

Terminal Cap
