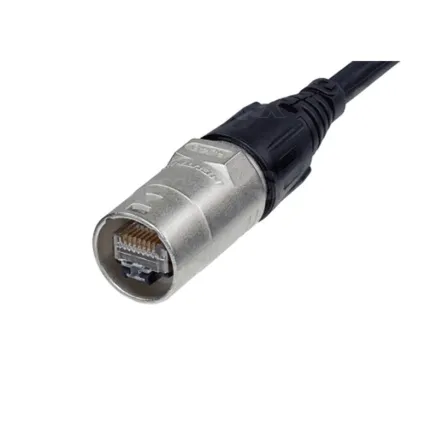

Neutrik NE8MX RJ45 cable connector carrier NE8MX
Produkto numeris: 49090
Pagal išankstinį užsakymą, pristatymo terminas nežinomas
| Type of Product | Cables |
| Type of Product | Selfie stick |
| Type of Product | Wireless Video Transmission Systems |
| Type of Product | Cable organizer |
| Type of Product | Other Accessories |
| Type of Product | Card reader |
| Connector | USB-C |
| Connections | USB-C to Micro-B |
| Connections | HDMI to HDMI |
| Color | Black |
Neutrik NE8MX - RJ45 cable connector carrier for preassembled RJ45 plugs consists of shell, fixing disk, chuck, bushing and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.
Attention! Does not intermate with CAT6 chassis connectors.
- The RJ45 system for harsh and demanding environment
- Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
- Rugged diecast shell and unique chuck type strain relief
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
- Allows assembly of preassembled conventional RJ45 cables
- Accessories include color coded boots in 9 standard colors
Technical Information
- Product
- Title - NE8MX
- Gender - male
Mechanical
- Cable O.D. - max. 8 mm 0.315'
- Insertion force - ? 20 N
- Withdrawal force - ? 20 N
- Lifetime - > 1000 mating cycles
Material
- Boot - Polyamide (PA 6)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Nickel
- Strain relief - Polyacetal (POM)
Environmental
- Temperature range - -30 °C to +80 °C
Product specific
IMPORTANT!
Cable connectors do not include RJ 45 plug. RJ 45 cable assembly must be provided by end-user!
