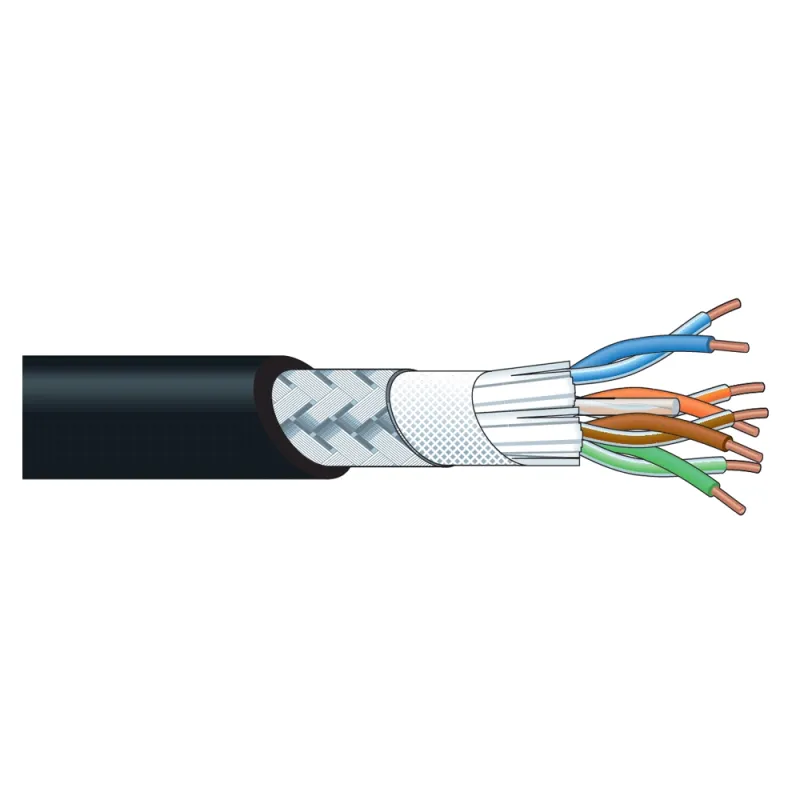

Canare RJC5ES-4P-BS Flexible and durable CAT5e STP cable for short distance
Canare RJC5ES-4P-BS Flexible and durable CAT5e STP cable for short distance
Ethernet cables are being used not only for computer networking, but also recently for digital audio networking, network camera, HDBaseT transmission, and so on.
Newly - developed Flex and Rugged CAT5e Cables will meet the wide range of needs such as for temporary cabling.
Insulation: polyethylene (RJC5ES-4P-BS: Cross-linked polyethylene). Jacket: PVC. Dielectric strength: 350V AC/min. Jacket color orange and white are production by order> Please ask us for ordering lot.
RJC5ES-4P-BS
?Flexible and durable CAT5e STP cable.
?Stranded conductor and a overall braided shield.
?Superior flexibility for easy routing and repeated bending.
?Recommended maximum length for CAT5e is 50m.
| Model | Characteristic Impendence ohm | Attenuation (Insertion Loss) | ||||
| RJC5ES-4P-BS | 100 | 2.2.0 dB/50m | ||||
| Model | Std. Lng. ft. (m) | Nom. O.D. in. (mm) | Wt Std. Lng. lbs (kgs)/100m | Unit Composition Cross Sec. Area Conductor Comp. mm2/(AWG) Q'ty/mm | Unit Composition Shield Coverage & Comp. mm/ends/carriers | Electrical characteristics Cond. D.C.R. ohm/100m | |
| RJC5ES-4P-BS | 656 (200) | 0.26 (6.7) | 13.45 (6.1) | 0.22(24) 7/0.20A | 0.10TA/10/16 (90% or more) | 9.5 | |
Abbreviations
CAT5e: Enhanced Category 5.
UTP: Unshielded Twisted Pair.
STP: Shielded Twisted Pair.
