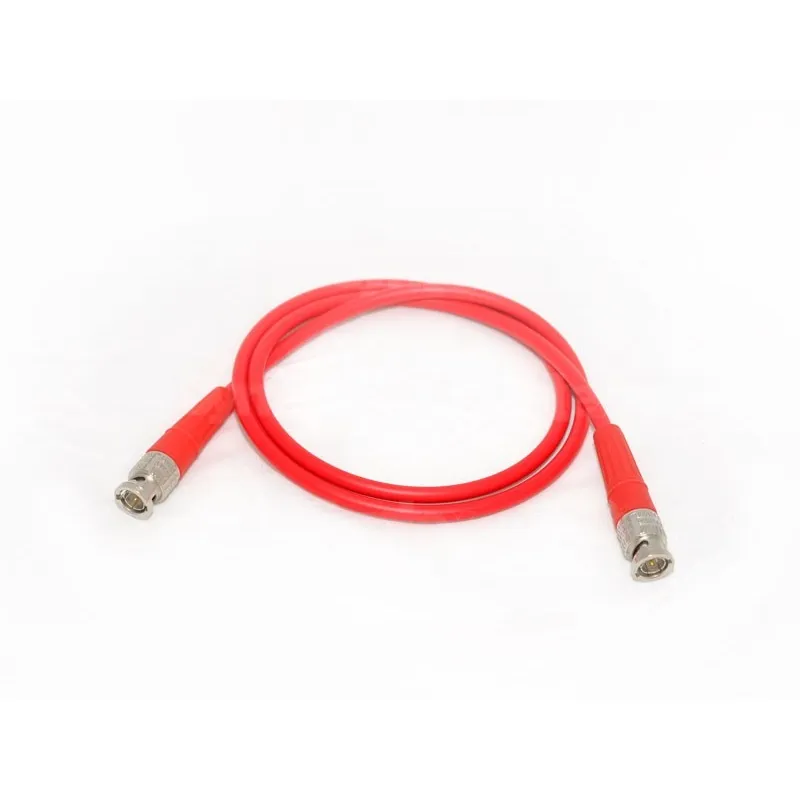

Canare L-3C2VS RED BNC 10m CV-3-M/M-RED-10
SKU: 15235
Model: CV-3-M/M-RED-10
Ean: 0000000000000
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 39,45 su mokesčiais
Canare L-3C2VS is a very lightweight and extremely flexible 5.5 mm HD/SD-SDI coaxial cable with a braided center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. Both ends have crimp-on BNC (M) connectors type BCP-A3.
| Type of Product | Cables |
| Connector | USB-C |
| Connections | HDMI to HDMI |
| Color | Red |
| Color | Black |
Applications
- HD/SD-SDI video
- PAL and NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Patch cables for video
Cable Specifications
- Sheath diameter (overall diameter) in mm: 5.5
- Cable weight in kg/100 m: 4.5
- Medium conductor - number and diameter of cores in mm: 7/0.18
- Total diameter of the middle conductor in mm: 0.54
- Foam dielectric - diameter in mm: 3.1
- Resistance of the middle conductor in ohms/100 m: 10.5
- Resistance of the outer conductor in Ohm/100m: 1.9
- Static capacitance in pF/m: 67
- Attenuation in dB/100m: 4.5
- Impedance in ohms: 75
Connector Specifications
- Tensile strength in kg: >24.9
- Insulation resistance at 500 V DC in Ohms: 24.5 mm >1000M
- Rated voltage for 1 min: 1500 V AC (effective value)
- Center contact resistance: 1.5 mm <6m ohms
- External contact resistance contact strength: <3m ohm
- Impedance in ohms: 75
- Connector body - material/surface: brass/nickel
- Center contact - material/surface: brass/gold
- Outer contact - material: Beryllium copper
- Dielectric - material: Material - polytetrafluoroethylene PTFE
- Crimp sleeve - material/surface: copper/tin
