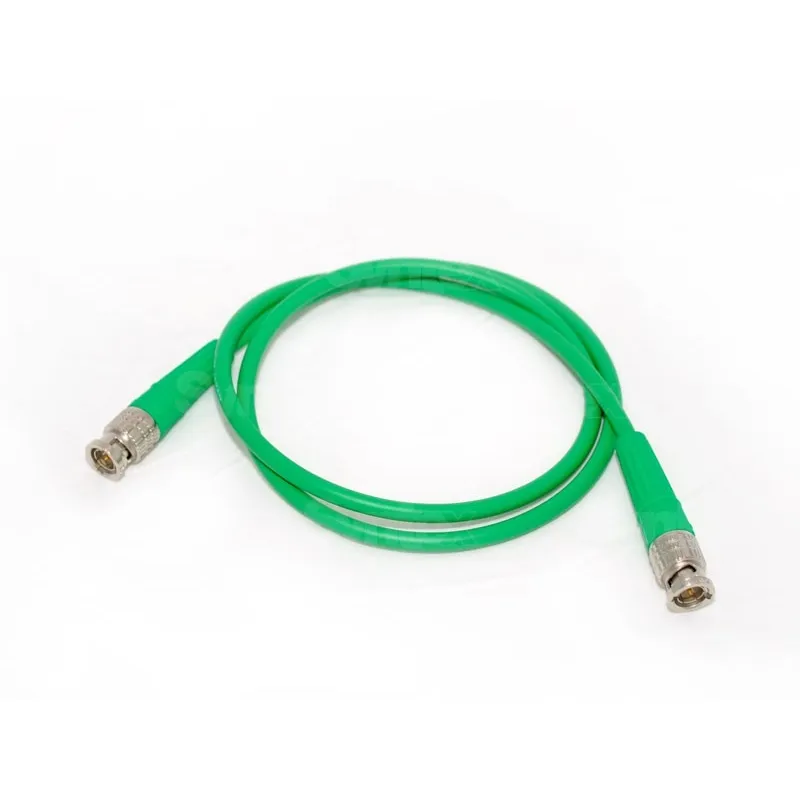

Canare L-3C2VS GRN BNC 0,3m CV-3-M/M-GRN-03

Canare

SKU: 15225

Model: CV-3-M/M-GRN-03

Ean: 0000000000000

Būklė: Naujas produktas

Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 16,46 su mokesčiais

Canare L-3C2VS is a very lightweight and extremely flexible 5.5 mm HD/SD-SDI coaxial cable with a braided center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. Both ends have crimp-on BNC (M) connectors type BCP-A3.

Daugiau detalių

Type of ProductOther Accessories
Type of ProductCard reader
Type of ProductCables
Type of ProductSelfie stick
Type of ProductWireless Video Transmission Systems
Type of ProductCable organizer
Battery typeCharger
CampaignHollyland akcija
ConnectorUSB-C
ConnectionsUSB-C to Micro-B
ConnectionsHDMI to HDMI
ColorGreen
ColorBlack

Application

  • HD/SD-SDI video
  • PAL and NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Patch cables for video

Cable Specifications

  • Sheath diameter (overall diameter) in mm: 5.5
  • Cable weight in kg/100 m: 4.5
  • Medium conductor - number and diameter of cores in mm: 7/0.18
  • Total diameter of the middle conductor in mm: 0.54
  • Foam dielectric - diameter in mm: 3.1
  • Resistance of the middle conductor in ohms/100 m: 10.5
  • Resistance of outer conductor in Ohm/100m: 1.9
  • Static capacitance in pF/m: 67
  • Attenuation in dB/100m: 4.5
  • Impedance in ohms: 75

Connector specifications - mains connector

  • Tensile strength in kg: >24.9
  • Insulation resistance at 500 V DC in Ohms: 24.5 mm >1000M
  • Rated voltage for 1 min: 1500 V AC (effective value)
  • Center contact resistance: 1.5 mm <6m ohms
  • External contact resistance contact strength: <3m ohm
  • Impedance in ohms: 75
  • Connector body - material/surface: brass/nickel
  • Center contact - material/surface: brass/gold
  • Outer contact - material: Beryllium copper
  • Dielectric - material: Material - polytetrafluoroethylene PTFE
  • Crimp sleeve - material/surface: copper/tin
