Canare L-3C2VS BLU BNC 30m CV-3-M/M-BLU-30
SKU: 15222
Model: CV-3-M/M-BLU-30
Ean: 0000000000000
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 89,46 su mokesčiais

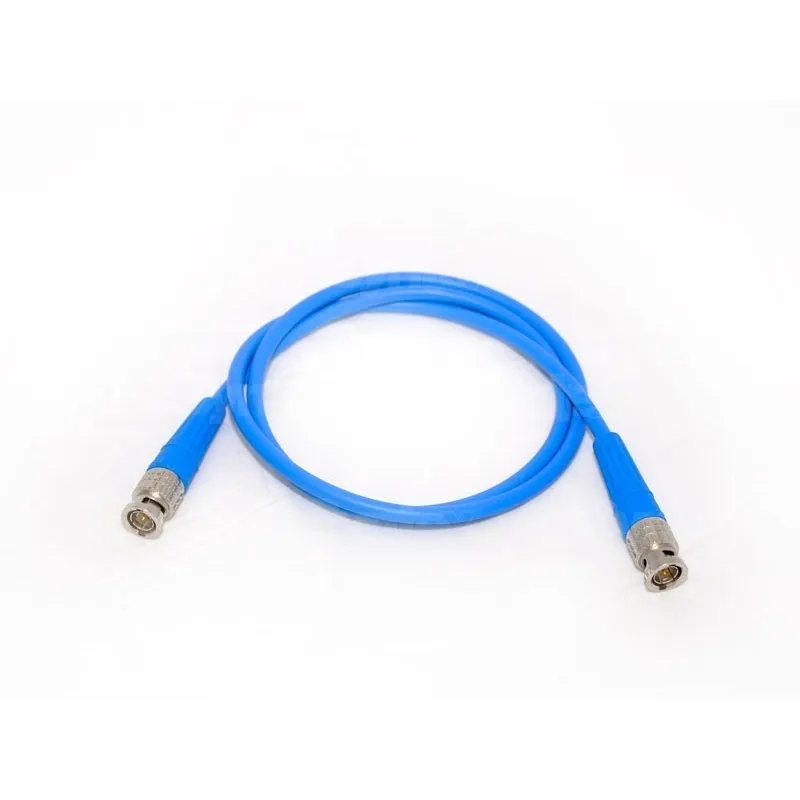

Canare L-3C2VS is a very lightweight and super flexible 75 ohm 5.5mm HD/SD-SDIcoaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. There are crimp-on BNC (M) connectors typeBCP-A3 at both ends.
| Type of Product | Cables |
| Color | Blue |
Usage
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Video Patch Cables
Cable Specifications
- Sheath diameter (overall diameter) in mm: 5.5
- Cable weight in kg/100m: 4.5
- Central conductor - number and diameter of strands in mm: 7/0.18
- Total diameter of central conductor in mm: 0.54
- Foam dielectric - diameter in mm: 3.1
- Resistance of the central conductor in Ω/100m: 10.5
- Outer conductor clearance in Ω/100m: 1.9
- Static capacitance in pF/m: 67
- Attenuation in dB/100m: 4.5
- Impedance: 75
Connector Specifications
- Cable pull in kg: >24.9
- Insulation resistance at 500V DC: >1000M
- Rated voltage for 1min: 1500V AC (rms)
- Resistance of central contact: <6m ohm
- Resistance of outer contact: <3m ohm
- Impedance: 75
- Connector body - material/surface: Brass / Nickel
- Central contact - material/surface: Brass / Gold
- External contact - material: Beryllium Copper
- Dielectric - material: PTFE polytetrafluoroethylene
- Crimp sleeve - material/surface: Copper / Tin
