RGBLink TAO 1Pro 5.5" FullHD preview monitor and 4-channel FullHD video switcher/recorder.

The extremely affordable RGBLink TAO 1Pro is a universal talent - preview monitor, switcher, recorder, streamer and NDI encoder combined in a very compact design. Intuitively controllable via touchscreen - streaming from anywhere to everywhere at anytime!

Preview monitor:
With its 5.5" Full-HD display and 450 nit brightness, the TAO 1Pro has the most important functions for image assessment. Brightness waveform, RGB waveform, vectorscope and histogram - In addition, all analyses run transparently over the live video and in 3 selectable sizes.

Switcher:
Two Full-HD HDMI inputs enable the input of a camera or notebook signal. In addition, the two USB 3.0 inputs ensure the operation of webcam or UVC-compatible cameras. - You can switch between the four video inputs using the touch screen. In addition, the programme stream is played back live at the HDMI output.
In addition, the TAO 1Pro can display six different stereo levels: Four for the video inputs, and one each for the 3.5mm microphone and jack outputs.

Recording:
With the TAO 1Pro it is possible to record programme streams on external USB media with up to 2 TB capacity. The codec used is H.264 at a maximum resolution of 1920x1080 at 30 fps.

Streaming:
The TAO1 Pro enables a unique streaming experience. Stream simultaneously to up to 4 platforms of your choice - without a PC. All you need is a network cable and an internet router. All parameters for the most important streaming platforms are already stored. The individual streaming keys can be easily transferred to the TAO 1Pro via USB stick, so that events can then be planned in advance. In addition, individual RTMP streams can also be created. Optionally, the screen and the video stream can also rotated in portrait format for optimal presentation on smartphones.

NDI encoder:
The NDI encoder makes the programme stream available as a latency-free NDI signal on the network. Currently NDI 5.0 is supported, the output is as NDI|HX stream.

Further functions:
In order to create adapted streams for mobile devices as well, the display of the TAO1 Pro can optionally be shown in portrait format.

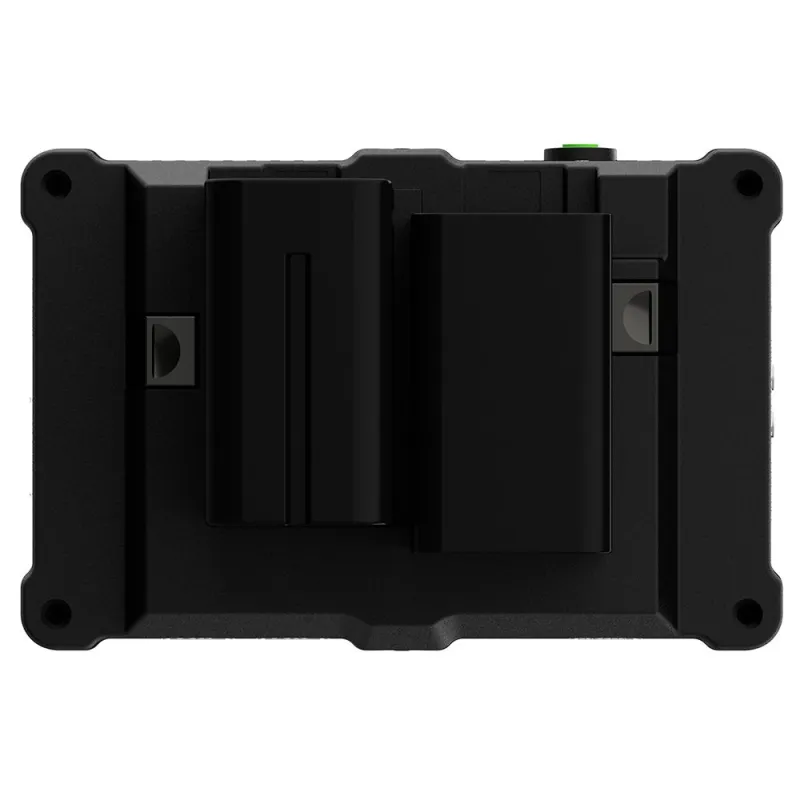

Power is supplied via the included USB adapter cable, but can also be supplied via an NPF-compatible or Panasonic D54-compatible battery.
A ventilation system with automatic speed control is built in, but can also be adjusted manually in four stages.
Firmware updates for future functions can be easily uploaded via USB stick.
Mounting on cameras is made possible by the included ¼" tripod screw.

Included in delivery:
1 x RGBLink TAO 1 Pro
1 x USB-C power supply unit with cable
1 threaded screw for assembly

Specifications

Connections

HDMI

2x HDMI 1.3 Input 1x HDMI 2.0 Output

USB

2x USB 3.0 Input, USB 2.0 record

Audio

Audio In/Out 3,5mm

Network

RJ45 LAN

Power

USB-C power supply

Resolution Input HDMI

SMPTE

720@50/60 | 1080p@23/24/60

VESA

1024x768@60 |1280x720@50/60 | 1280x800@60 | 1280x1024@60 |1360x768@60 | 1600x1200@60 | 1680x1050@60 |1920x1080@60

Resolution Output HDMI

SMPTE

720p@50/60 | 1080p24/25/50/60 | 2160p@60

VESA

1024x768@60 | 1280x72050/60 | 1280x800@60 | 1280x1024@60 | 1920x1080@50/60 | 3840x2160@60

Display

Screen dimension

5,5" TFT

Resolution

1920x1080

Dot Pitch

0,63(H) x 0,021(W) (mm)

Aspect Ratio

16:9

Brightness

450cd/m²

Contrast

1000:1

Blacklight

LED

View Angle

80°/80°(L/R) 80°/80° (U/D)

Power Supply

Input voltage

9V/2A

Max power

18W

Physical specifications

Weight without Batteries

350g

Dimensions

161mmx106mmx36mm
