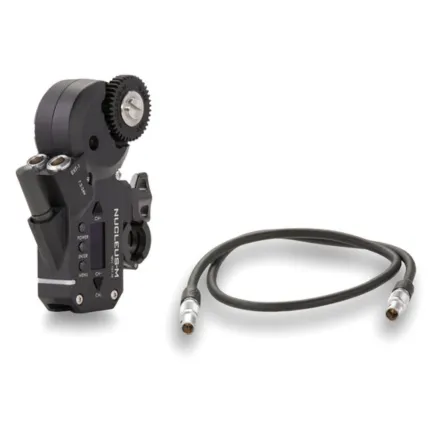

Tilta Nucleus-M Motor Kit I WLC-T03-M1
SKU: 215
Model: WLC-T03-M1
Ean: 0631384550852
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 395,95 su mokesčiais
- Nucleus-M FIZ Brushless Motor, 0.8 MOD
- 22" 7-Pin to 7-Pin Nucleus-M Motor Cable
- Automatic and Manual Calibration
- High, Medium, and Low Torque Settings
| Type of Product | Follow Focus |
| Compatible | Sony |
| Follow focus | Manual |
TheNucleus-M Motor Kit IfromTiltaincludes the compact Nucleus-M focus/iris/zoom brushless lens motor and a 22 7-pin to 7-pin power cable. The motor also comes with a 19mm rod adapter that secures on the side and a 19-to-15mm bushing. The Nucleus-M motor features the cinema lens standard 0.8 MOD and offers high, medium, and low torque settings. Other features include automatic and manual calibration and a status window display.
Key Features:
- Brushless motor with integrated motor drive
- Standard gear 0.8 Mod, 35 teeth, 32 pitch
- Motor clamps onto 19mm or 15mm rods (with included bushing)
- Power supply via separately available D-Tap cable or chain connection to other motors
- Automatic and manual calibration
- For focus, aperture or zoom control
- High, medium and low torque settings
Package Contents:
- Nucleus-M motor
- 55 cm 7-pin cable to 7-pin Nucleus-M motor
- Gearbox modification: 0.8
- Gear pitch: 32
- Number of gears: 35
- Face Width: 0.4 / 10 mm
- Operating Frequency: 2.4 GHz
- Maximum Range 1640 / 500 m (unobstructed)
- Emission Power 30-100 MW
- Voltage 7.2-24 V
- Rod compatibility 19, 15 mm
- Noise level 15 dB
