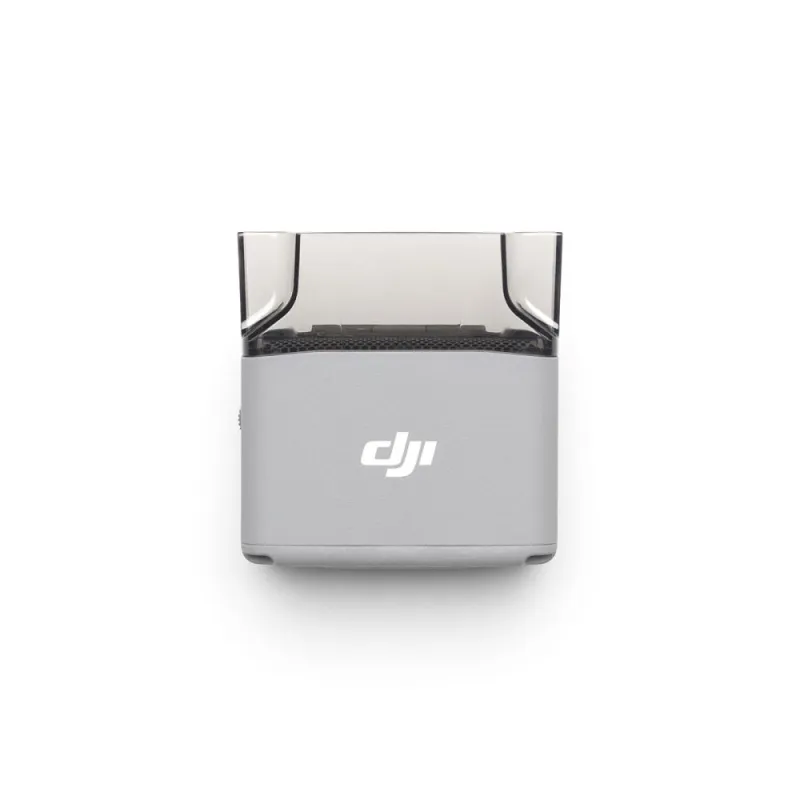

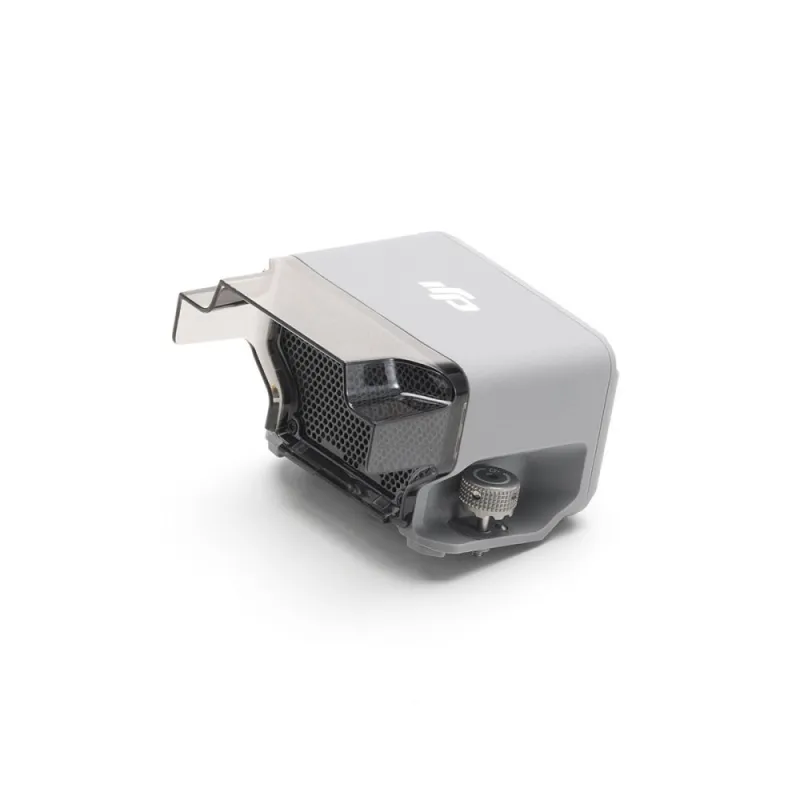

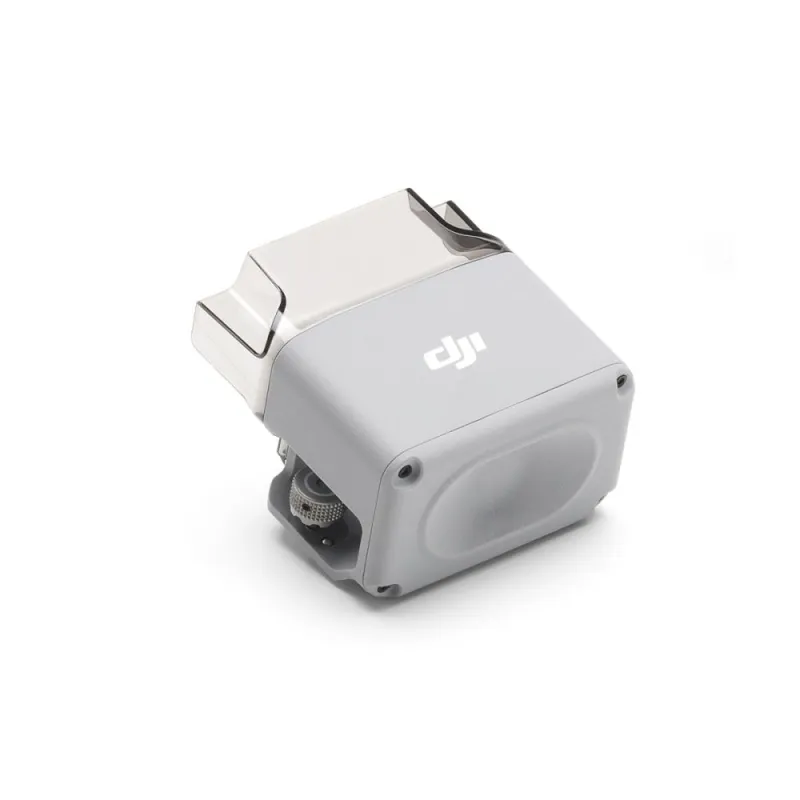

DJI AS1 Speaker

DJI AS1 Speaker

Louder Volume, Further Reach

The DJI AS1 Speaker delivers a powerful 114 decibels at 1 meter, with a broadcast range of up to 300 meters. It supports recorded messages, media imports, and text-to-speech conversion, along with real-time broadcasting and echo suppression. The spotlight and speaker can operate independently or together, catering to various operational needs.

Installation Guidelines

• Tighten screws for secure installation using the included hex key.
• Remove the speaker adapter bracket when using the speaker and spotlight together.
• Activate the speaker and calibrate the aircraft compass post-installation.
• Avoid using the speaker near people or in noise-sensitive areas to prevent accidents.
• Do not play single-frequency sounds to avoid damaging the speaker.

Compatibility

Compatible with DJI Matrice 4 Series aircraft.

In the Box

• 1 Speaker
• 1 Spare Adapter Bracket
• 1 Hex Key

Specifications

• Weight: 92.5 g (with bracket), 90 g (without bracket)
• Dimensions: 737052 mm (with bracket), 737047 mm (without bracket)
• Max Power: 15 W
• Max Volume: 114 dB at 1 meter
• Effective Broadcast Range: 300 m
• Broadcast Modes: Real-time, recorded, media import, text-to-speech
• Operating Temperature: -20 to 50C (-4 to 122F)
• Mounting Method: Quick-release hand-tightened screws

Notes:
1. Performance may vary based on conditions and software versions.
2. Text-to-speech currently supports Mandarin Chinese and English.
3. Ensure firmware is updated to the latest version.
