| Type of Product | Other Accessories |
| Compatible | other |
| Range distance | 15 km |

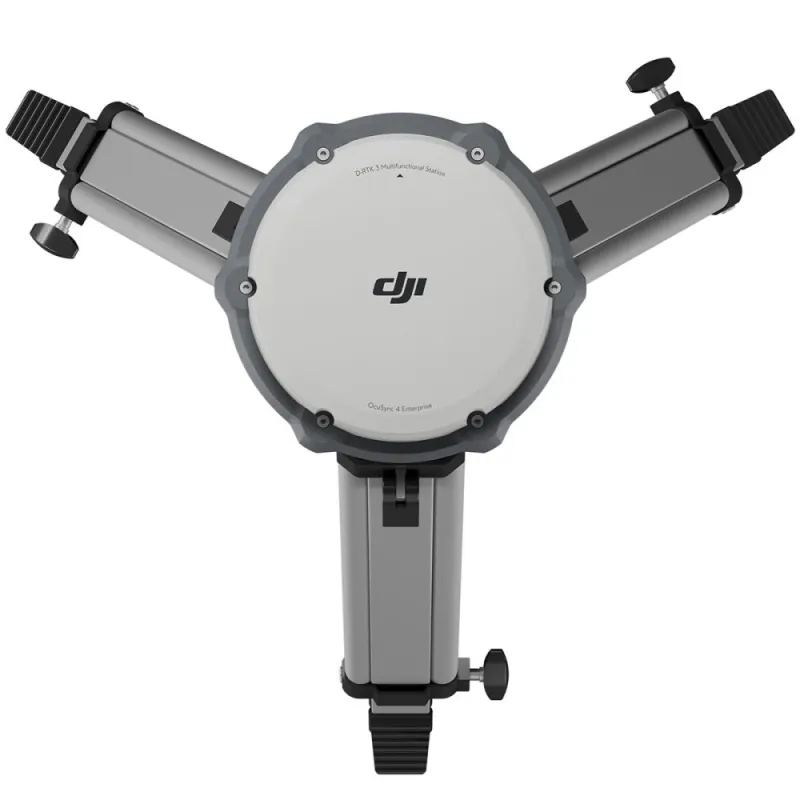

DJI D-RTK 3 Multifunctional Station
The D-RTK 3 Multifunctional Station features high-performance antennas and receivers, enabling it to track data from major global satellite navigation systems. It supports multiple data transmission links and utilizes a built-in inertial measurement unit for precise device positioning and orientation. This station can function as a base for centimeter-level positioning of multiple drones or as a relay to extend their operational range. The new rover station mode, in conjunction with the DJI ENTERPRISE app and DJI Terra, provides a comprehensive solution for high-precision aerial surveying.
Key Features
- Base station for centimeter-level positioning of multiple drones.
- Relay station to extend drone range.
Important Notes
- Measurement accuracy is influenced by environmental factors.
- Vibrations and rapid rotations may affect inertial measurement accuracy.
- Relay stations should be placed in high, unobstructed locations.
- Ensure all rubber plug interfaces are properly installed.
In the Box
- 1 D-RTK 3 Multifunctional Station
- 4 Spare OcuSync Directional Antennas
- 1 USB-A to USB-C Cable
*DJI D-RTK 3 Survey Pole and Tripod Kit not included. Order here.
Specifications
- GNSS Frequency: GPS, BDS, Galileo, GLONASS, QZSS, L-Band
- Rover Station Mode Accuracy: Horizontal: 0.8 cm + 1 ppm, Vertical: 1.5 cm + 1 ppm
- Max Transmission Distance: Up to 15 km (FCC), 12 km (SRRC), 8 km (CE)
- Protection Rating: IP67
- Dimensions: 163 x 89 mm, Weight: 1.26 kg
