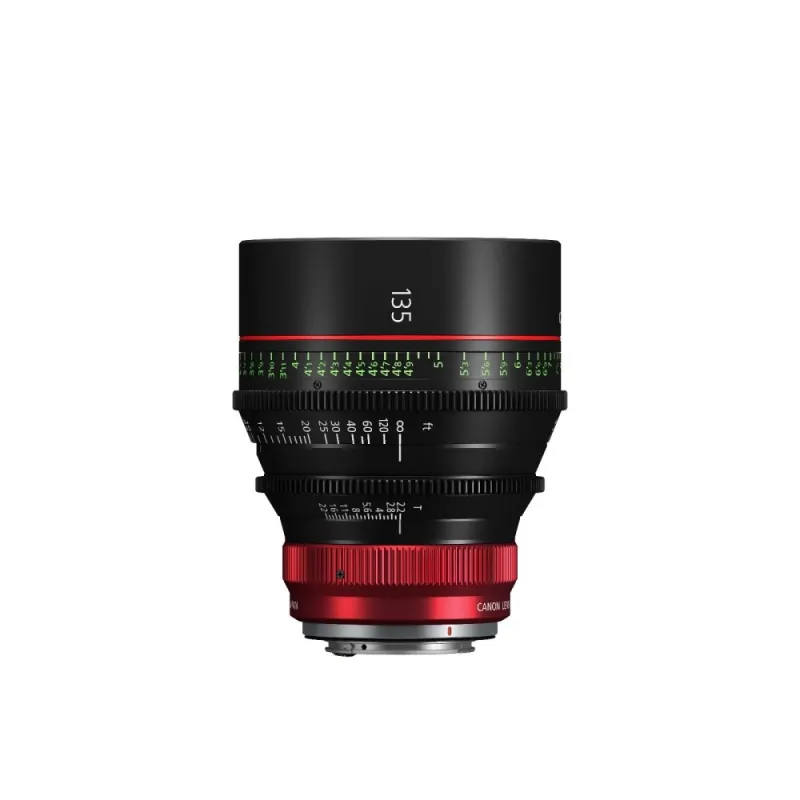

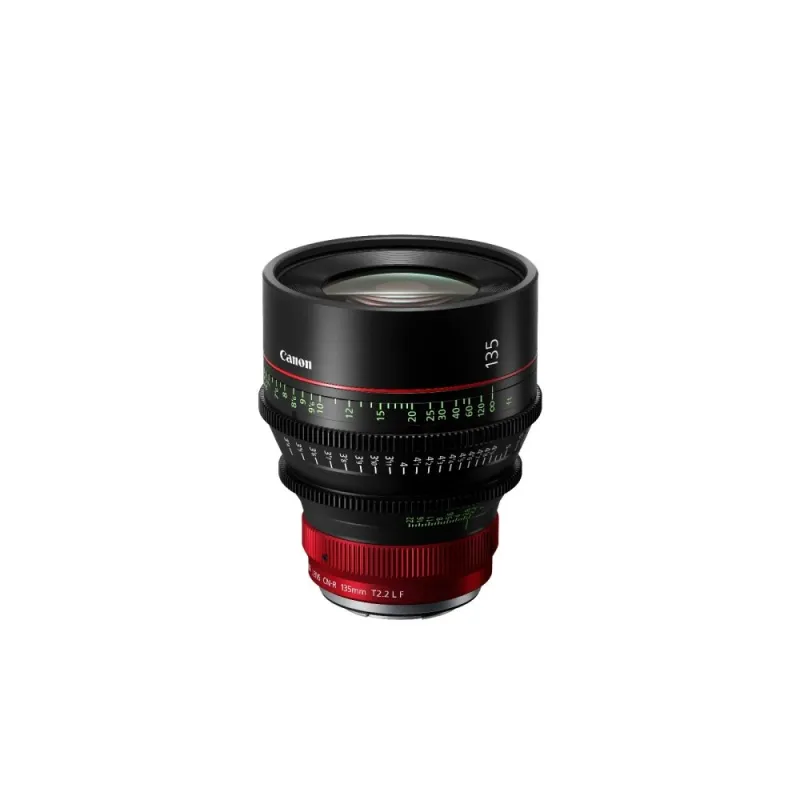

Canon CN-R135MM T2.2 L F (6404C006)

Canon CN-R135MM T2.2 L F (6404C006)

The compact and robust lenses combine all the advantages of the RF bayonet with state-of-the-art optical performance, shallow depth of field and precise color reproduction. With the Canon CN-R prime lenses, the whole world is ready for the cinema.

• Cine lenses with RF bayonet for professional productions
• Uncompromising full-frame creativity
• Exceptional image quality
• Mechanical precision in a compact design
• Optimized ergonomics and even better handling

Technical Specifications

Image Circle

Φ43.3 mm

Mount

RF Mount

Focal Length

CN-R 135mm T2.2 L F

Maximum Diameter Ratio (T-Number)

T 2.2 (CN-R 135mm T2.2 L F X)

Number of Iris Blades

11 blades

Angle View

Aspect ratio 1.5:1 // Screen dimensions 36.0 × 24.0mm // 15.2° x 10.2°
Aspect ratio 1.78:1 // Screen dimensions 24.6 × 13.8mm // 10.4° x 5.9°

Minimum Shooting Distance

1 m / 3’4 (CN-R 135mm T2.2 L F X)

Shooting Range at Closest Approach

Aspect ratio 1.5:1 // Screen dimensions 36.0 × 24.0mm // 21.1 x 14.1 cm
Aspect ratio 1.78:1 // Screen dimensions 24.6 × 13.8mm // 14.4 x 8.1 cm

Front Lens Diameter (mm)

Φ114 mm

Outer Dimensions (W x D x H)

118.4 x 118.4 x 139.6 mm

Weight

1.5 kg

Delivery Content:

1x Canon CN-R135MM T2.2 L F (6404C006)

1x Manual
