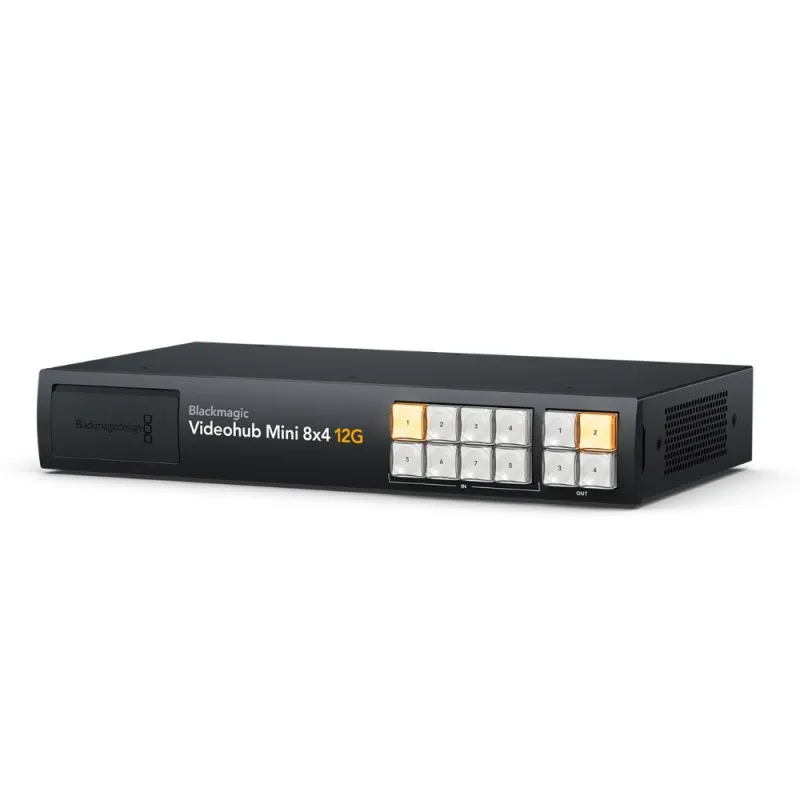

Blackmagic Design Blackmagic Videohub Mini 8x4 12G Video Router VHUBSMTK12G0804

Blackmagic Videohub Mini 8x4 12G

Compact, Zero-Latency Video Router supporting SD, HD, and Ultra HD signals simultaneously.

Key Features

• 8 12G-SDI Inputs and 4 12G-SDI Outputs in a 2/3 rack width design.
• Loop output for each input.
• Supports video standards up to 2160p60.
• Reference input and clean switch for flexible routing.
• Front panel control for quick routing and emergency 12G-SDI input.
• USB-C output for webcam use and Ethernet remote control.

Compatibility

Connects to devices with SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI outputs. Supports high frame rates in Ultra HD over a single BNC cable, ensuring seamless switching between video inputs.

Video Quality

Routes 422 video in 8-bit and 10-bit quality, supporting 444 12-bit SDI video up to 2160p30 resolution, ideal for feature films.

Remote Control

Can be controlled remotely, essential for large broadcast studios. Choose between two hardware control panels: Videohub Master Control Pro and Videohub Smart Control Pro.

Connection

• SDI Video Inputs: 8 (front input overrides rear input)
• SDI Video Outputs: 4
• SDI Speeds: 270 Mbps, 1.5G, 3G, 6G, 12G
• Webcam Output: USB-C
• Ethernet: 10/100/1000 BASE-T support

Package Includes

• Blackmagic Videohub Mini 8x4 12G
• Welcome pack with QR code for software download
