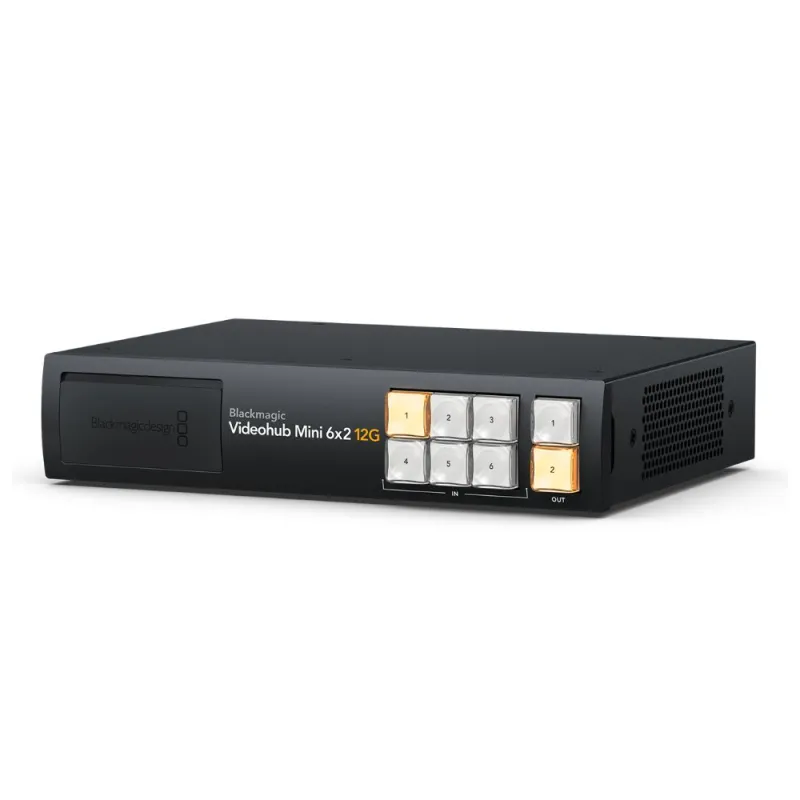

Blackmagic Design Blackmagic Videohub Mini 6x2 12G Video Router, 6 Inputs, 2 Outputs VHUBSMTI12G0602

Blackmagic Videohub Mini 6x2 12G

Compact, Zero-Latency Video Router supporting SD, HD, and Ultra HD signals simultaneously. It features 6 12G-SDI inputs and 2 12G-SDI outputs in a 1/2 rack width design, with loop outputs for each input.

This device is ideal for clients in confined spaces looking to expand their SDI equipment inputs. It supports video standards up to 2160p60 and includes a reference input and a clean switch for flexible routing. A front panel allows for quick signal routing and includes an emergency 12G-SDI input and a USB-C output for webcam use.

Compatible with devices having SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI outputs, it provides high frame rates in Ultra HD over a single BNC cable. The router supports all video standards, including 525 NTSC, 625 PAL, 720p, 1080i, 1080p, 2K, 4K, and all Ultra HD formats.

Designed for the highest quality video, it can route 422 video in 8-bit and 10-bit quality, and even supports 444 12-bit SDI video up to 2160p30. Remote control is available, making it suitable for large broadcast studios.

Connection

• SDI video inputs: 6 (front input overrides rear input 6)
• SDI video outputs: 2 (front panel output mirrors rear output 2)
• SDI speeds: 270 Mbps, 1.5G, 3G, 6G, 12G
• Video input resynchronization: on all 6 inputs for clean switch
• SDI signal re-clocking: on all outputs
• Tri-Sync: or Black Burst
• Loop output with termination
• Webcam Output: USB-C
• Ethernet: 10/100/1000 BASE-T support
• Computer Interface: 1x USB-C 3.1 Gen 1 for webcam output, software updates, and connection to Videohub Setup Utility

Package Includes

• Blackmagic Videohub Mini 6x2 12G
• Welcome pack with QR code for software download
