Blackmagic Design Blackmagic Streaming Decoder 4K - Live Streaming Processor BDLKWEB/J/DES4K

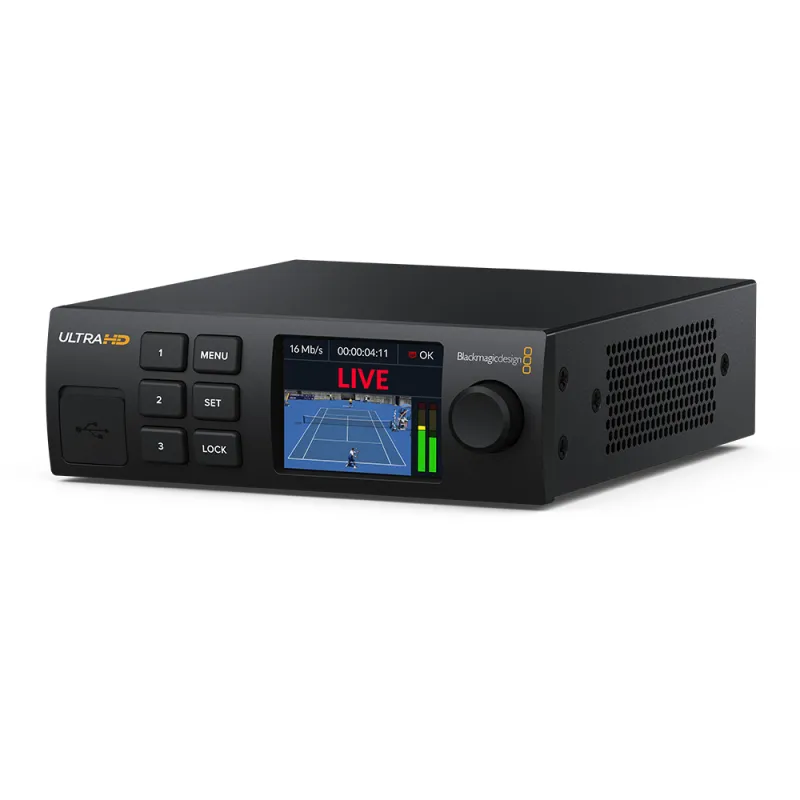

Blackmagic Streaming Decoder 4K

The Blackmagic Streaming Decoder 4K is a powerful streaming processor that decodes live H.264 and H.265 streams from an encoder or camera, converting them to SDI or HDMI with features like talkback, tally, and camera control.

This standalone hardware encoder allows live streaming to platforms like YouTube and Facebook. It can receive H.264 or H.265 streams from a Blackmagic Streaming Encoder, ATEM switcher, or Blackmagic camera, converting them back to SDI and HDMI video for direct point-to-point transmission.

For creating broadcast streaming links, the decoder supports Blackmagic Cloud streaming and includes a 12G-SDI reference input for connecting SDI tally, camera control, and talkback, enabling seamless remote collaboration.

Connectivity

• SDI reference inputs: 1
• SDI video outputs: 1
• SDI reference outputs: 1
• SDI bit rates: 1.5G, 3G, 6G, 12G
• HDMI 2.0 video outputs: 1
• Audio inputs/outputs: 2 channels of embedded Live Stream audio on output; 2 channels of embedded Program audio on input; 2 channels of embedded Talkback audio on input
• SDI audio inputs: 16 channels of embedded audio per 12G-SDI Ref In
• SDI audio outputs: 16 channels of embedded audio on 12G-SDI Ref Out; 2 channels of embedded audio on 12G-SDI Out
• HDMI audio outputs: 8 channels of embedded audio on Monitor Out
• Webcam outputs: 1 USB-C up to 2160p60 resolution
• Ethernet: 10/100/1000 BASE-T for live streaming, configuration, and software updates

Package Includes

• Blackmagic Streaming Decoder 4K
• Welcome envelope with QR code for software download
