Blackmagic Design Blackmagic 2110 IP UpDownCross 12G Standards Converter CONVNVIPJ/STD/12G

Blackmagic 2110 IP UpDownCross 12G

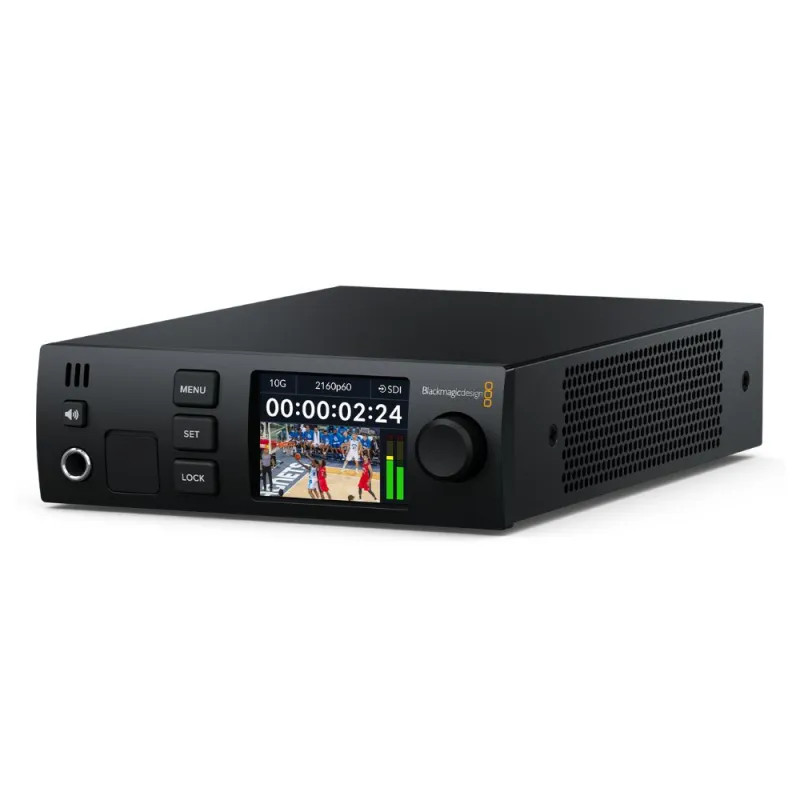

The Blackmagic 2110 IP UpDownCross 12G is a professional standards converter for SMPTE-2110 IP video, 12G-SDI, and HDMI connections, expected to be available in June 2025.

It delivers high-quality conversion across SD, HD, and Ultra HD standards, featuring a reference input for re-synchronization and a redundant power supply. The front panel includes a USB port that functions as an HD webcam.

This high-end converter is ideal for live production and broadcast, equipped with an LCD display, built-in speaker, and headphone output. It integrates SDI devices into SMPTE-2110 IP technology, with rack-mount options for easy installation.

Key Features

• 12G-SDI video connectors for versatile connectivity
• Supports 720p HD, 1080i HD, 1080p HD, and Ultra HD (2160p)

Connectivity

• SDI inputs: 1
• SDI loop outputs: 1
• SDI outputs: 2
• HDMI 2.0 video outputs: 1
• SMPTE 2110 I/O: 1x 10G Ethernet
• SDI audio inputs/outputs: 16-channel embedded audio
• Webcam output: 1x USB-C up to 1080p60
• Reference input/output: 1 each
• Ethernet Support: 10/100/1000/10G BASE-T

Package Includes

• Blackmagic 2110 IP UpDownCross 12G
• Welcome pack with QR code for software download
