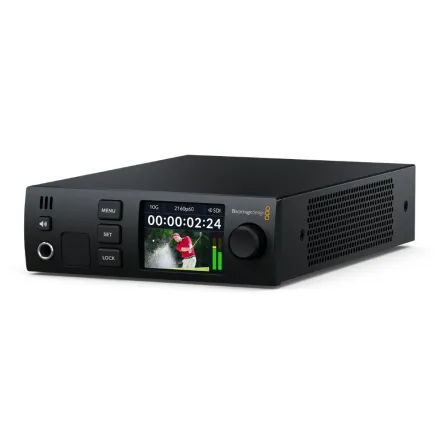

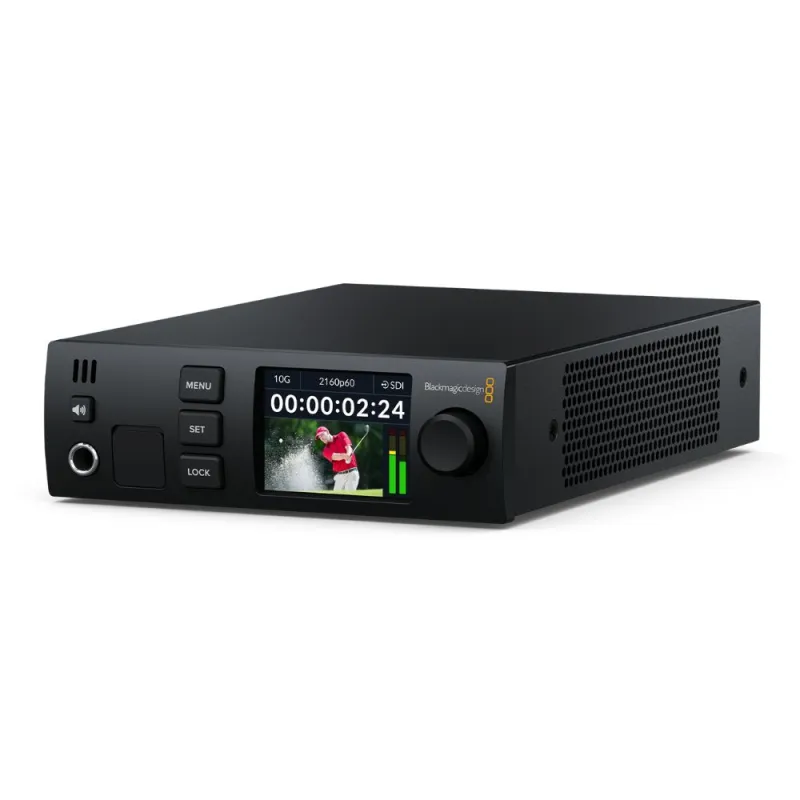

Blackmagic Design Blackmagic 2110 IP SDI to HDMI 12G Converter CONVNVIPM/12G/HDMI02

Blackmagic 2110 IP SDI to HDMI 12G

The Blackmagic 2110 IP SDI to HDMI 12G converts 12G-SDI or SMPTE-2110 video to HDMI in a rack mount design, ensuring high-quality conversion across SD, HD, and Ultra HD standards. It supports 3D LUT for precise calibration of HDMI displays, with availability expected in June 2025.

This model is ideal for OLED TVs in color grading and editing environments. It features two channels of XLR analog audio output for monitoring, remote volume control, and custom delay settings for active speakers. The unit includes a front LCD display for video preview, audio levels, and menus, along with speaker and headphone outputs.

Designed for integrating SDI devices into SMPTE-2110 IP broadcast systems, it easily mounts in racks. The model adheres to the SMPTE-2110 standard, supporting PTP clock and NMOS protocol for seamless connections via a video router control panel.

Connectivity

• SDI inputs: 1
• SDI loop outputs: 1
• SDI speeds: SD, 1.5G, 3G, 6G, 12G
• HDMI 2.0 video outputs: 1
• SMPTE 2110 input/output: 1x 10G Ethernet
• SMPTE ST 2110 IP audio: 16-channel embedded audio
• SDI audio inputs: 16-channel embedded audio
• HDMI audio inputs: 8-channel embedded audio
• Analog audio outputs: 2 channels with XLR connectors; 1x headphone output
• Webcam output: 1x USB-C up to 1080p60
• Ethernet: 10/100/1000/10G BASE-T for SMPTE 2110 IP video
• Computer Interface: USB-C for webcam output and updates

Package Includes

• Blackmagic 2110 IP SDI to HDMI 12G
• Welcome pack with QR code for software download
