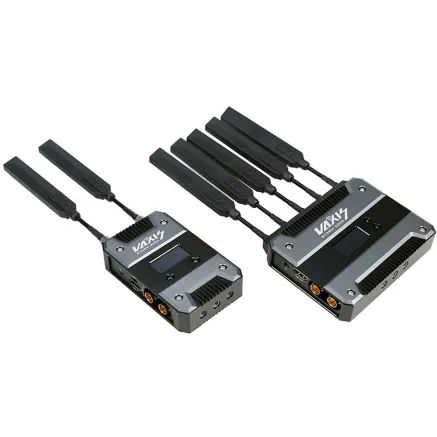

Vaxis Storm 3000 Wireless Kit (V-Mount) VAX-STORM-3000KIT
Produkto numeris: 54519
Galima įsigyti iš tiekėjo: 1 prekė
The Vaxis Storm 3000 HDMI/SDI wireless transmission system can transmit uncompressed 1080p60 video with near zero latency, and in the 5 GHz range. Included are seven antennas, two on the transmitter and five on the receiver, helping to transmit to a range approx. 1000 m (line of sight).
The transmitter supports multicast, allowing it to transmit a single video signal to multiple receivers, including other Vaxis models such as the Storm 058, 800, 1000S, and 5000. Each unit can be powered using its 2-pin LEMO type connector with a separately available cable and an AC or DC source. The receiver can also be powered by a V-Mount battery plate.
| Type of Product | Wireless Video Transmission Systems |
- Wireless Range: 1000 m (Line-of-Sight)
- Number of Channels: 20
- Frequency Band: 5,1-5,9 GHz
- Bandwidth: 40 MHz
- Compression: none
- Latency: < 1 ms (supports ARRI 0S delay functionality)
- Video Format: 1080p24/23,98, 1080p60/59,94, 1080p50, 1080i60/59,94, 1080i50, 1080PsF30/29,97, 1080PsF24/25/23,98, 720p60/59,94, 720p50, 525i, 625i
- DC Input Power: 7 - 36 V= (2-Pin LEMO Input)
- Battery: Receiver 1x V-Mount
- Video I/O: Transmitter: 1x BNC (3G-SDI) Input, 1x BNC (3G-SDI) Loop Output, 1x HDMI Type A Input; Receiver: 2x BNC (3G-SDI) Output, 1x HDMI Type A Output
- Dimensions: Transmitter 113 x 70 x 27 mm, Receiver 125 x 94 x 40 mm
- Weight: Transmitter 268 g, Receiver: 405 g
