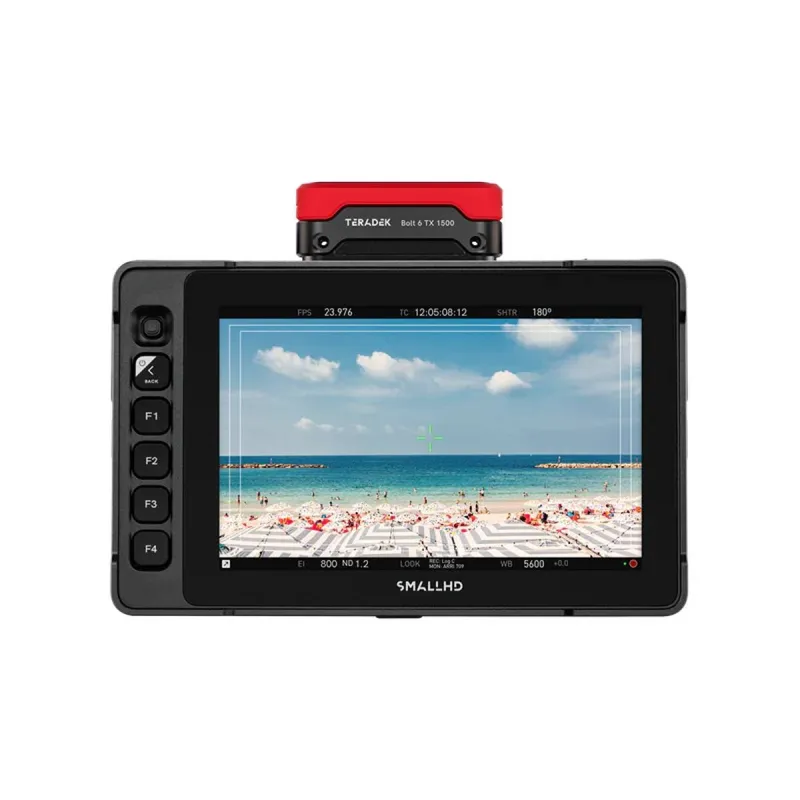

SmallHD Ultra 7 + Bolt 6 TX 1500 (V-Mount) SHD-16-0731

Wirelessly transmit up to 4K video and wirelessly control your cinema camera from a touchscreen monitor from up to 1500' away with the Bolt 6 Monitor Module 1500 TX from Teradek. The transmitter module mounts onto the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor and can wirelessly transmit up to UHD 4K30 HDR video to any Bolt 4K receiver. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

You can wirelessly control supported cameras by connecting to an optional Bolt 4K RX monitor module on a similar monitor with installed camera control software. The I/O signal connection between the two units allow you to control the camera wirelessly right from the screen of the RX module monitor, or locally from the TX module monitor, with zero delay. The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The monitor inputs up to 4K30 video from the camera for a high-resolution preview, and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support. It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters. Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.

It can be powered using the 2-pin DC power input or with a separately available battery plate. It runs on PageOS 5, the same software running on the monitors, for compatibility with the SmallHD monitors. The camera control option requires a specific camera control license to be purchased separately.
