Lilliput 3 Gb/s Video SFP Optical Receiver 3G-SFP-LC-RX
SKU: 53714
Model: 3G-SFP-LC-RX
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 179.95 su mokesčiais
- PIN photodetector
- Metal enclosure for lower EMI
- Supports video pathological patterns for SD-SDI, HD-SDI, and 3G-SDI
- Non-MSA pinout
- Digital diagnostic functions available through the I2C interface
- Compatible with SFP Multi-Source Agreement (MSA) and SFF-8472
- RoHS compatible
- 3.3V single power supply
| Type of Product | Wireless Video Transmission Systems |

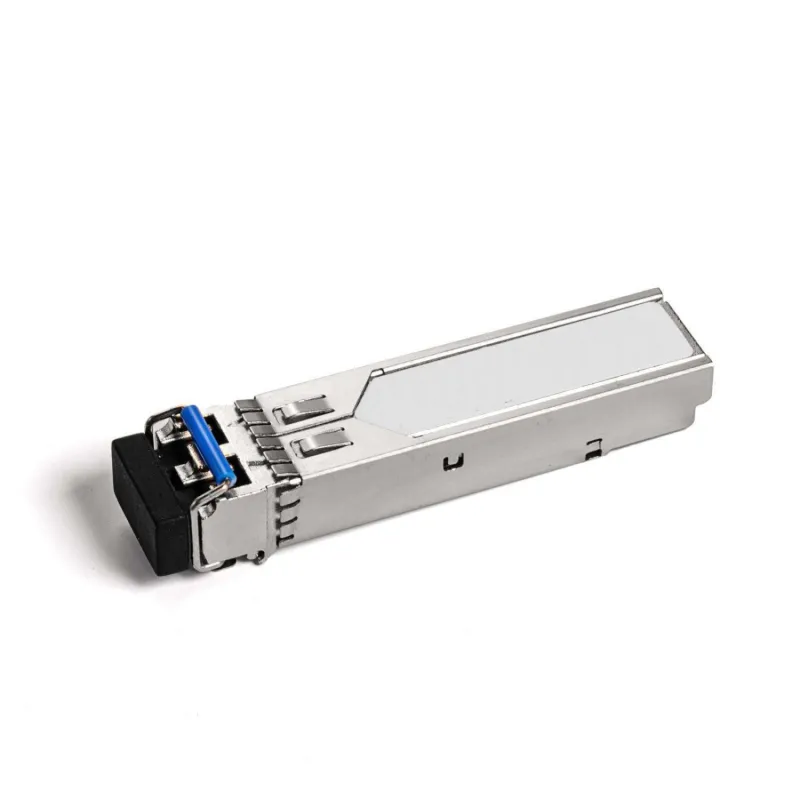

The Lilliput 3 Gb/s Video SFP Optical Receiver is an SFP module designed to accept an optical SDI signal and convert it to an electrical signal. It's built to deliver high performance in the presence of SDI pathological patterns for SMPTE 259M, 344M, 292M, and 424M serial rates. It pairs with an optional corresponding transmitter to achieve duplex video transmission via single-mode fiber over distances up to 12.4 miles. It accepts data rates from 50 Mb/s to 2.97 Gb/s and is fully compliant with the SMPTE 297M-2006 standard, which relates to fiber/SDI transmission.
Consisting of two sections, the 3 Gb/s Video SFP Optical Receiver features an MCU control unit and a PIN photodiode integrated with a trans-impedance preamplifier (TIA), with both modules satisfying class I laser safety requirements
