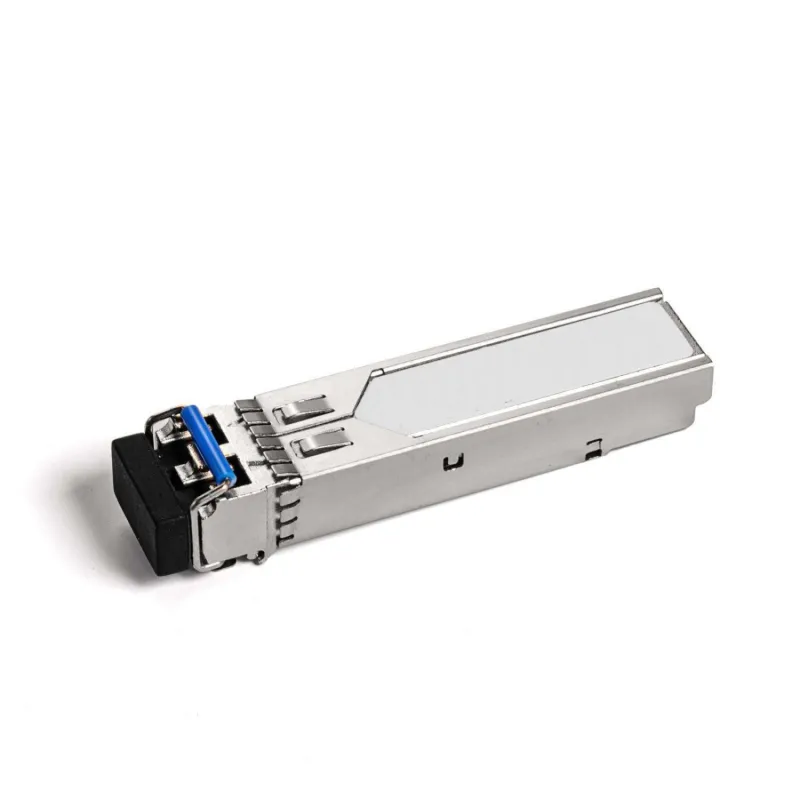

Lilliput 12 Gb/s Video SFP+ Optical Receiver 12G-SFP-LC-RX
SKU: 53713
Model: 12G-SFP-LC-RX
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 265.45 su mokesčiais
- Hot pluggable SFP+ footprint LC connector interface
- Operating data rate up to 11.88 Gb/s
- Accepts single-mode fiber transmission from up to 6.2 miles
| Type of Product | Wireless Video Transmission Systems |
The Lilliput 12 Gb/s Video SFP+ Optical Receiver is an SFP+ module designed to accept an optical SDI signal and convert it to an electrical signal. It supports SD/HD/3G/6G/12G-SDI signals and SDI pathological pattern transmission. Pairing with an optional corresponding transmitter, the receiver supports single-mode fiber transmission at 11.88 Gb/s from distances up to 6.2 miles. The receiver features a PIN photodiode with an integrated trans-impedance preamplifier (TIA).
Standards and Compliance
- Compliant with SFP+ MSA / SFF-8472
- RoHS compliance
- SMPTE 424M/297M (2.97 Gb/s, 1080p60/59.94/50)
- SMPTE 292M/297M (1.485 Gb/s)
- SMPTE 259M/297M (270/360 Mb/s)
- SMPTE ST-2081(6 Gb/s, 4K30)
- SMPTE ST-2082 (12 Gb/s, 4K60)
