Monacor ATS-80T 42-Channel Digital PLL Transmitter System
SKU: 52183
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 179,46 su mokesčiais
| Connection type | Wireless |
| Accessories for microphones | Raidītāji |
| Connector | 3,5mm |
| Headphone type | Intercom |

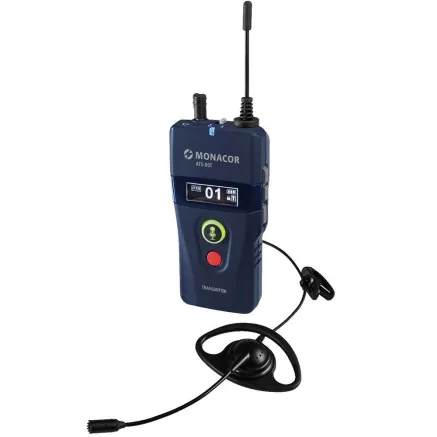

Monacor ATS-80T
42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz.
- As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
- High resistance to interference due to digital transmission
- High operating range
- Frequency range optimised for voice transmissions
- Interference-free parallel operation of up to 42 different channels possible
42-channel PLL transmitter, for microphone operation and audio line signals.
- 3 different operating modes: guiding, lecturing and discussions for versatile applications
- Integrated microphone, adjustable gain
- Supplied with additional earphone microphone
- Audio line input via 3.5 mm stereo jack
- High-contrast OLED display
- Battery status indication
- Priority assignment
- Alarm function
- Talk/mute button
- Call button
- Channel lock
- Full-duplex communication
- Attendance monitoring
- Belt clip
- Lanyard
- Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
- Operating range: approx. 100 m
- Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
- Dimensions: 47 x 97 x 35 mm
- Weight: 53 g
Technical Specifications
| Description | 42-channel digital PLL transmitter |
| Carrier frequency range | 823-832 MHz, 863-865 MHz |
| Admiss. ambient temp. | 0-40 °C |
| Transmitting power | ≤ 20 mW/≤ 10 mW |
| Operating range | 100 m |
| Power supply transmitter | 2 x 1.2 V NiMH rech. batt. AA size |
| Width transmitter | 47 mm |
| Height transmitter | 97 mm |
| Depth transmitter | 35 mm |
| Weight transmitter | 53 g |
| Connections transmitter | 3.5 mm jack (microphone/headset), 3.5 mm jack (line in) |
