Monacor ATS-80ST 42-Channel Digital PLL Transmitter System
SKU: 52178
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 689,45 su mokesčiais
| Connection type | Wireless |
| Connector | XLR |
| Connector | USB-C |
| Connector | other |
| Connector | 6.35mm |
| Connector | 3,5mm |
| Headphone type | Intercom |

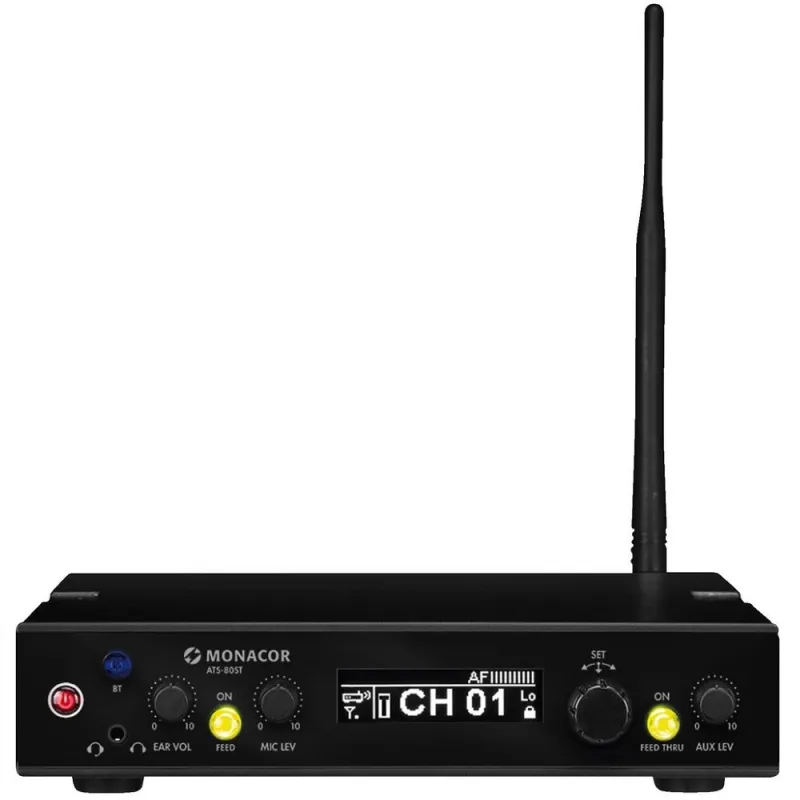

Monacor ATS-80ST
42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz.
- As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
- High resistance to interference due to digital transmission
- High operating range
- Frequency range optimised for voice transmissions
- Interference-free parallel operation of up to 42 different channels possible
42-channel stationary PLL transmitter, for microphone operation and audio line signals. In combination with ATS-80R, also suitable for interpretation systems.
- Stereo audio line input via RCA L/R
- Microphone input via comb. jack (XLR/6.3 mm jack)
- Mono audio line output via RCA
- Loop input and loop output via 6.3 mm jack
- Adjustable headphone output for monitoring
- Removable antenna (TNC)
- Supports Bluetooth
- USB audio programming interface
- High-contrast OLED display
- Channel name and ID can be edited
- Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
- Operating range: approx. 100 m
- Power is provided via encl. plug-in power supply
- Dimensions: 215 x 51 x 210 mm
- Weight: 1.25 kg
Technical Specifications
| Description | 42-channel digital PLL transmitting unit |
| Carrier frequency range | 823-832 MHz, 863-865 MHz |
| Channels | 1 |
| Admiss. ambient temp. | 0-40 °C |
| Transmitting power | ≤ 20 mW/≤ 10 mW |
| Operating range | 100 m |
| Power supply transmitter | via encl. power supply |
| Width transmitter | 215 mm |
| Height transmitter | 51 mm |
| Depth transmitter | 210 mm |
| Weight transmitter | 1.25 kg |
| Connections transmitter | 1 x XLR/6.3 mm jack (mic in), 1 x RCA L/R (line in), 1 x RCA L/R (line out) 1 x 6.3 mm jack (loop in), 1 x 6.3 mm jack (loop out), 3.5 mm jack (headphones) |
