Neutrik NC3MXX-B XLR Cable Connector, 3-Pole, Black, Gold Contacts NC3MXX-B
SKU: 50841
Model: NC3MXX-B
Ean: 7613187000362
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 9.45 su mokesčiais
| Type of Product | Cables |
| Connector | XLR |
| Color | Black |
NeutrikNC3MXX-B

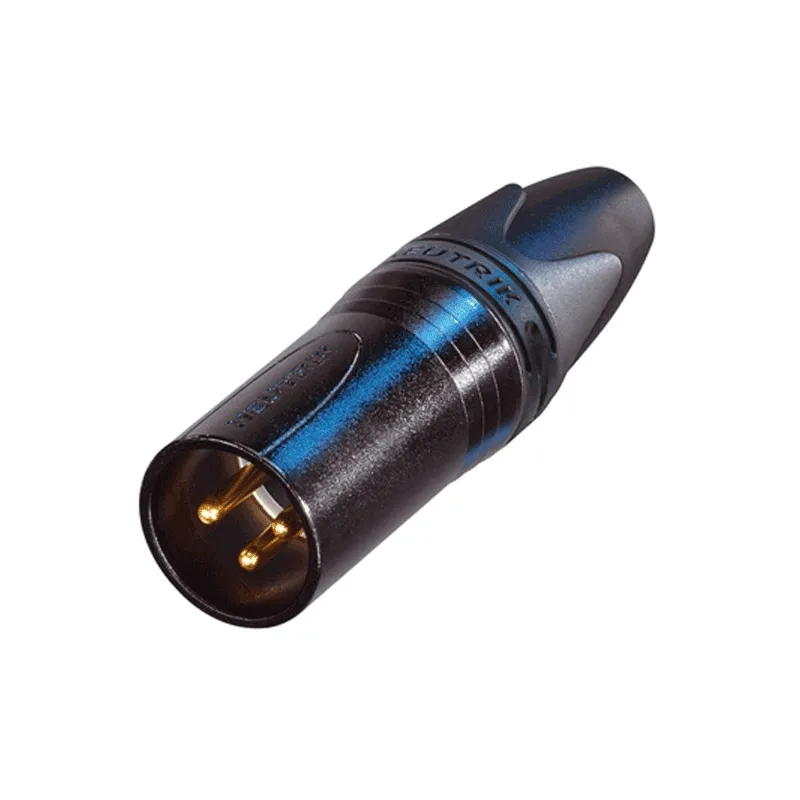

3 pole male cable connector with black metal housing and gold contacts.
The new generation of the globally recognized XLR cable connector standard. The successor to the X series offers several new features, more reliable, easier assembly, and better contact and cable clamp integrity.
Technical Specifications
- Capacitance 4 pF
- Contact resistance 3 m
- Rated voltage 1min 1.5 kVdc
- Insulation resistance > 10 G
- Rated current per 1 contact 16 A
- Rated voltage 50 V
- Cable diameter 3.5 - 8.0 mm
- Force required to connect connectors 20 N
- Force required to disconnect connectors 20 N
- Lifetime > 1000 connection cycles
- Conductor max. 2.5 mm, max. 14 AWG
- Soldering
- Cable cap polyurethane
- Contact surface treatment 0.2 m Au layer on 2 m Ni
- Contact material Bronze (CuSn8)
- Polyamide (PA 6.6 30 GR)
- Lock Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Connector body Zinc diecast (ZnAl4Cu1)
- Connector body finish black chrome
