Neutrik NC3FXX-B XLR Cable Connector - Black Metal, Gold Contacts
SKU: 49080
Model: NC3FXX-B
Ean: 7613187000201
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 14.45 su mokesčiais
| Type of Product | Cables |
| Connector | XLR |
| Color | Black |

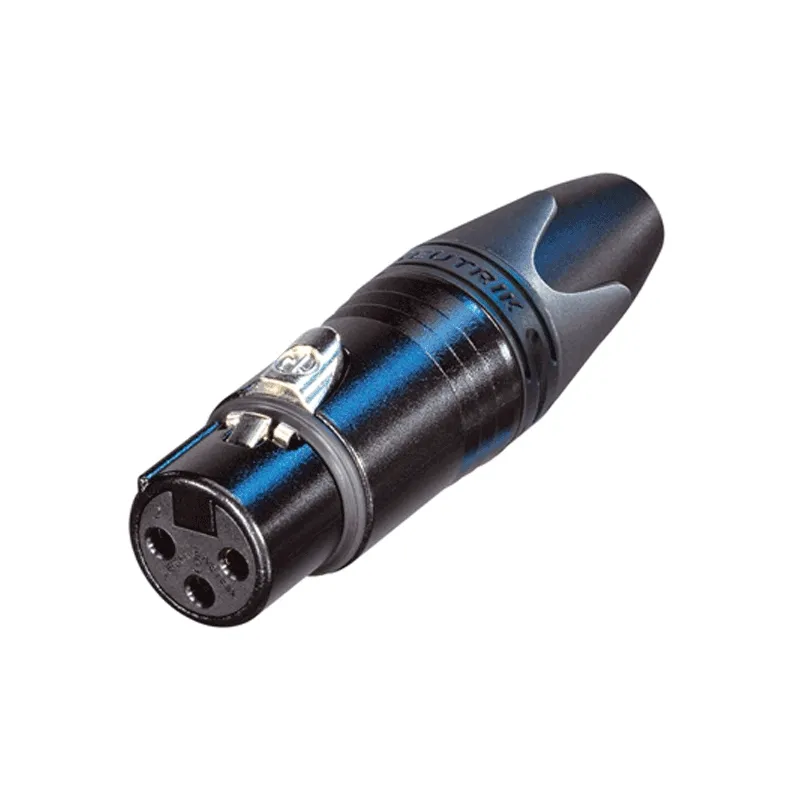

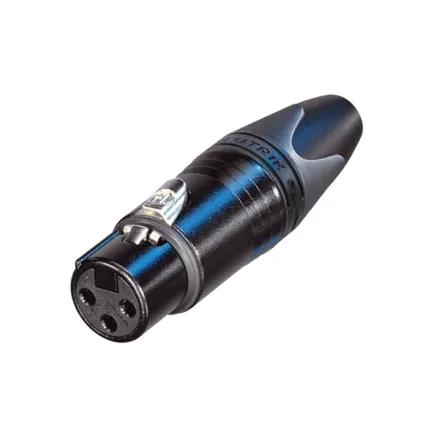

Neutrik NC3FXX-B -3 pole female cable connector with black metal housing and gold contacts.
The new generation of the globally recognized XLR cable connector standard. The successor to the X series offers several new features, more reliable, easier assembly and better contact and cable clamp integrity.
Technical Specifications:
- Capacitance:≤ 4 pF
- Contact resistance:≤ 3 mΩ
- Rated voltage 1min:1.5 kVdc
- Insulation resistance:> 10 GΩ
- Rated current per 1 contact:16 A
- Rated voltage:50 V
- Cable diameter: 3.5 - 8.0 mm
- Force required to connect connectors:≤ 20 N
- Force required to disconnect connectors:≤ 20 N
- Lifetime:> 1000 connection cycles
- Conductor: max. 2.5 mm², max. 14 AWG
- Soldering
- Cable cap:polyurethane
- Contact surface treatment:0.2 µm Au layer on 2 µm Ni
- Contact material:Bronze (CuSn8)
- Polyamide (PA 6.6 30% GR)
- Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Connector body:Zinc diecast (ZnAl4Cu1)
- Connector body finish:black chrome
