Neutrik NC3FRX XLR Cable Connector - 3 Pole Female
SKU: 49079
Model: NC3FRX
Ean: 7613187000522
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 21.45 su mokesčiais
| Type of Product | Cables |
| Connector | XLR |
| Connections | XLR to XLR |
| Color | Black |

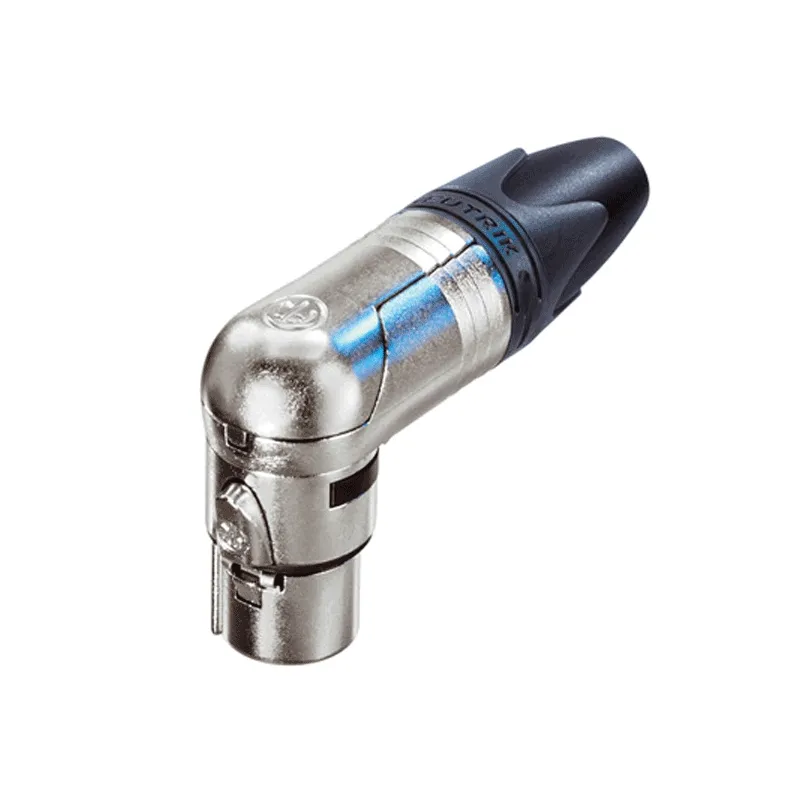

Neutrik NC3FRX -3 pole female cable connector with black metal housing and gold contacts.
The RX series is an orthogonal version of the XX series connectors. A new generation of the globally recognized XLR cable connector standard. The successor to the X Series offers several new features, more reliable, easier installation and better contact and cable clamp integrity.
Technical Specifications:
- Capacitance
- Contact resistance:≤ 3 mΩ
- Rated voltage 1min:1.5 kVdc
- Insulation resistance:> 10 GΩ
- Rated current per 1 contact: 16 A
- Rated voltage:50 V
- Cable diameter:3.5 - 8.0 mm
- Force required to connect connectors: ≤20 N
- Force required to disconnect connectors: ≤20 N
- Lifetime: > 1000 mating cycles
- Conductor: max. 2.5 mm² , max. 14 AWG
- Soldering
- Cable cap: polyurethane
- Contact surface treatment: 0.2 µm Ag layer
- Contact Material: Bronze (CuSn8)
- Polyamide (PA 6.6 30% GR)
- Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Connector body: Zinc diecast (ZnAl4Cu1)
- Connector body finish: Nickel
