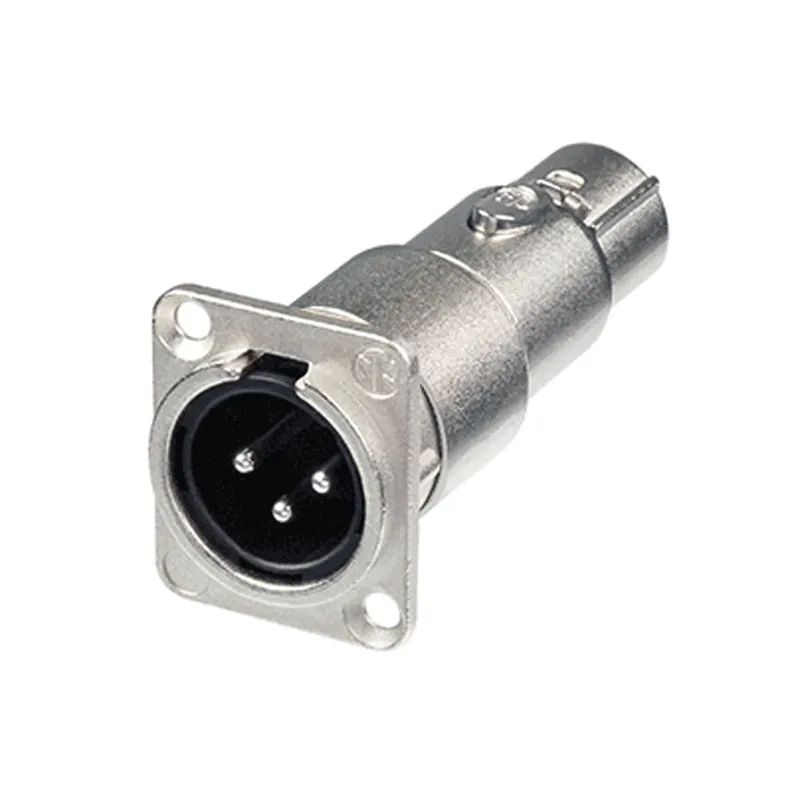

Neutrik NA3MDF XLR 3 Pole Female-Male Feedthrough Adapter
SKU: 49069
Model: NA3MDF
Ean: 7613187002243
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 22.45 su mokesčiais
| Type of Product | Cables |
| Connections | XLR to XLR |
Neutrik NA3MDF - XLR 3 pole female-male feedthrough adapter for panel mount
Neutrik NA3MDF - XLR 3 pole female-male feedthrough adapter for panel mount
Features & Benefits
- 3 pole XLR feedtrugh adapter
- D - flange chassis mount
- Female to Male and vice versa
- Utilizes XX-components
Electrical
- Capacitance between contacts -? 4 pF
- Contact resistance - ? 5 m? (inner)
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 2 G? (initial)
- Rated current per contact - 16 A
- Rated voltage - < 50 V
Mechanical
- Insertion force - ? 20 N
- Withdrawal force - ? 20 N
- Lifetime - > 1000 mating cycles
- Wiresize - max. 2.5 mm?
- Wiresize - max. 14 AWG
- Wiring - Solder contacts
- Locking device - Latch lock
- Chassis shape - D
Material
- Contact plating - 2 µm Ag over 2 µm Ni
- Insert - Polyamide (PA 6.6 30 % GR)
- Locking element - Steel Ck67
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Nickel
Environmental
- Flammability - UL 94 HB
- Standard compliance - IEC 61076-2-103
- Protection class - IP 40
- Solderability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +80 °C
