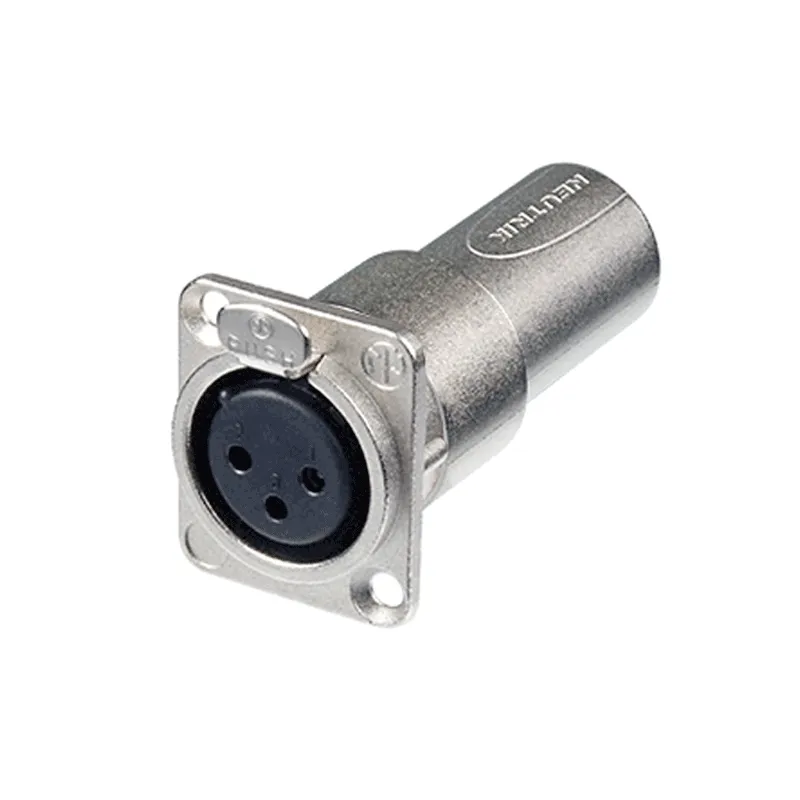

Neutrik NA3FDM XLR 3 Pole Female-Male Feedthrough Adapter
SKU: 49068
Model: NA3FDM
Ean: 7613187002199
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 22.45 su mokesčiais
| Type of Product | Cables |
| Connections | XLR to XLR |
| Color | Black |
Neutrik NA3FDM - XLR 3 pole female-male feedthrough adapter for panel mount
Neutrik NA3FDM - XLR 3 pole female-male feedthrough adapter for panel mount
Features & Benefits
- 3 pole XLR feedtrugh adapter
- D - flange chassis mount
- Male to female and vice versa
- Utilizes XX-components
Electrical
- Capacitance between contacts -? 4 pF
- Contact resistance - ? 5 m? (inner)
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 2 G? (initial)
- Rated current per contact - 16 A
- Rated voltage - < 50 V
Mechanical
Insertion force - ? 20 N
Withdrawal force - ? 20 N
Lifetime - > 1000 mating cycles
Wiresize - max. 2.5 mm?
Wiresize - max. 14 AWG
Wiring - Solder contacts
Locking device - Latch lock
Chassis shape - D
Material
Contact plating - 2 µm Ag over 2 µm Ni
Insert - Polyamide (PA 6.6 30 % GR)
Locking element - Steel Ck67
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Environmental
Flammability - UL 94 HB
Standard compliance - IEC 61076-2-103
Protection class - IP 40
Solderability - Complies with IEC 68-2-20
Temperature range - -30 °C to +80 °C
