Nauticam Underwater Housing for Panasonic Lumix GH6

Nauticam Underwater Housing for Panasonic Lumix GH6

The Panasonic GH6 is a high-end camera with impressive video features and still image enhancements. It offers up to 5.7K video recording capabilities and improved autofocus and noise levels for better performance.

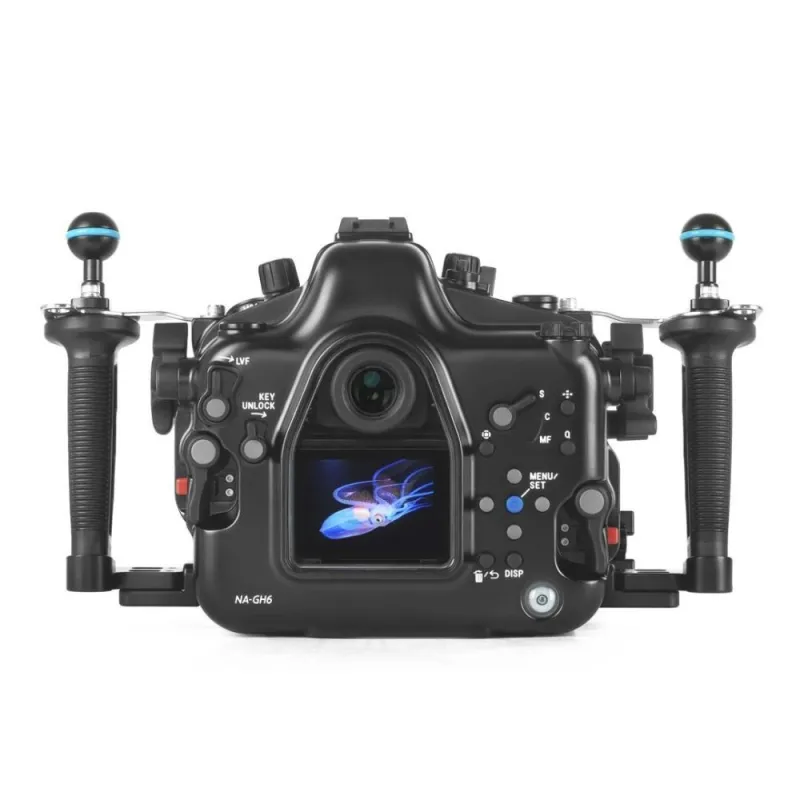

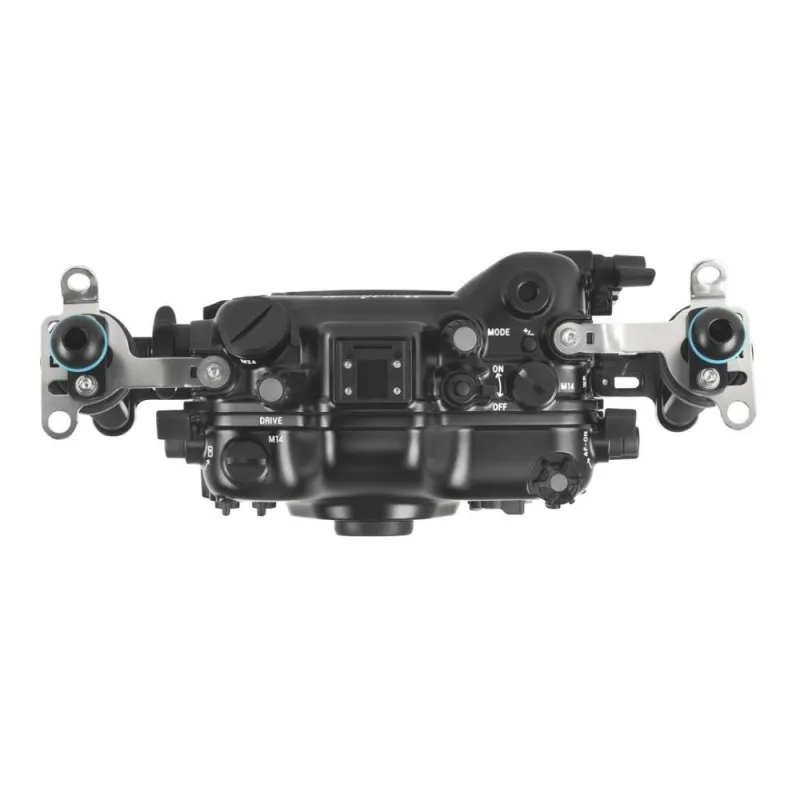

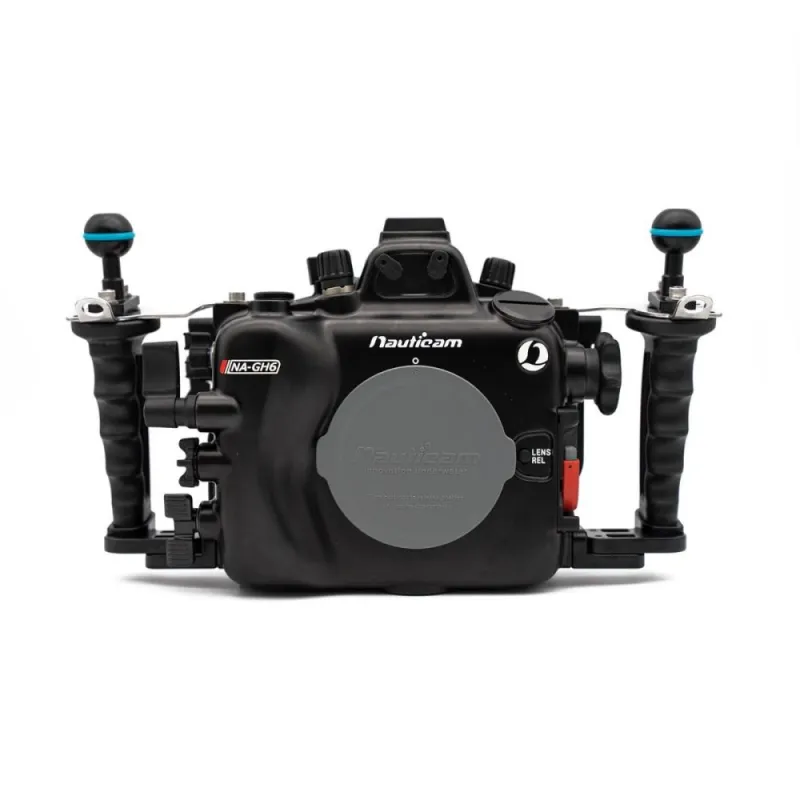

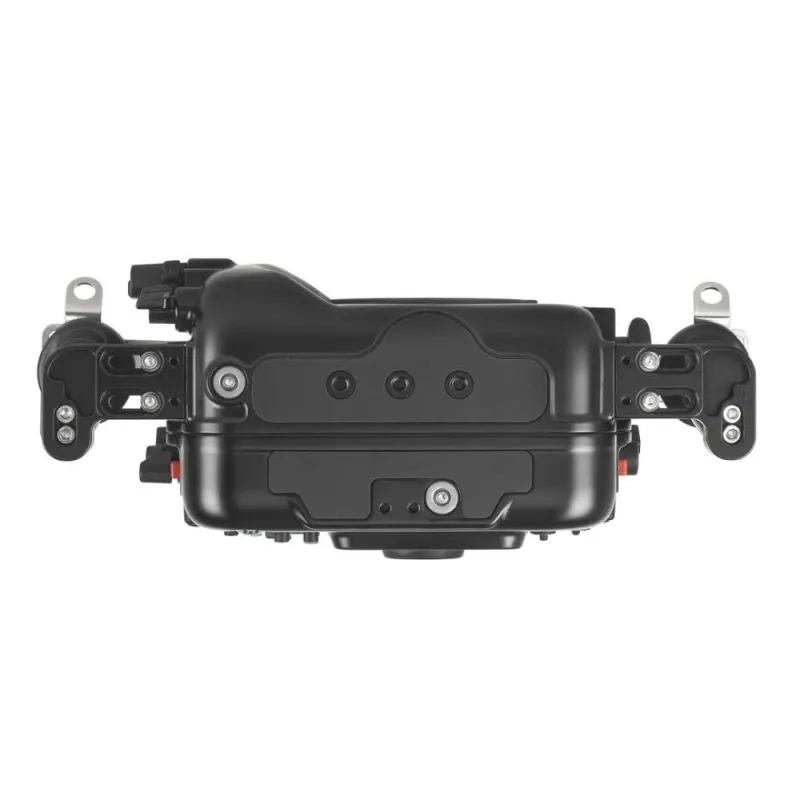

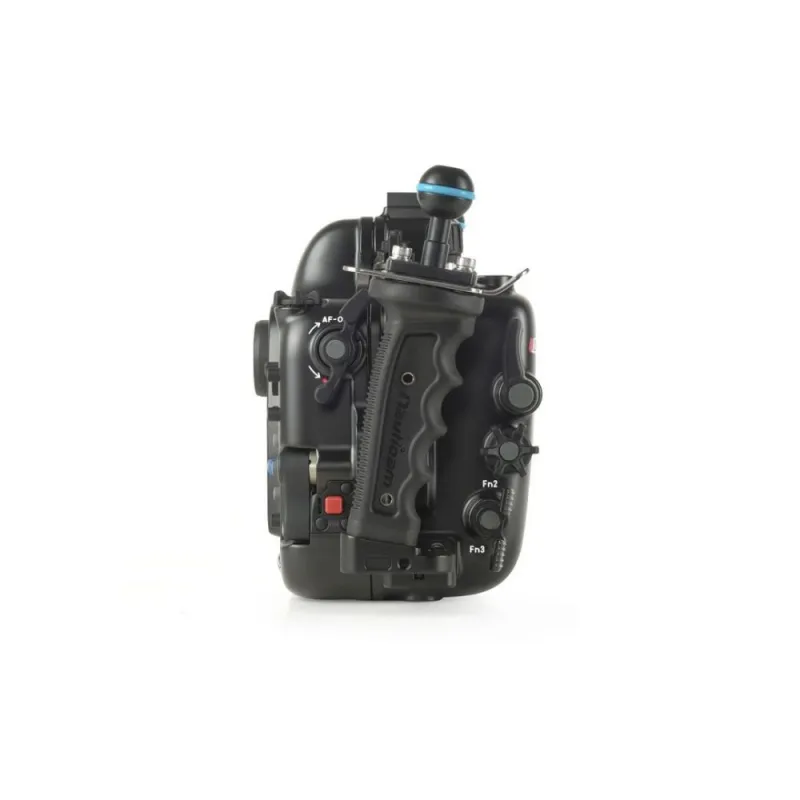

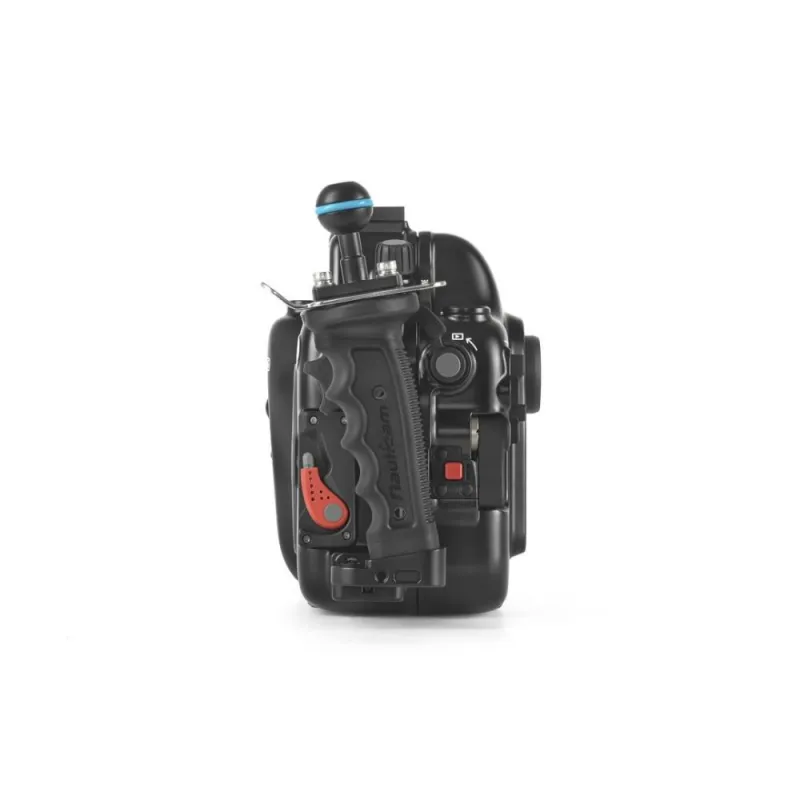

The Nauticam NA-GH6 Underwater Housing

The NA-GH6 is designed for the GH6 camera, offering a wide range of lens and port combinations. It features the N85 Port System and compatibility with Nauticams water-contact optics for improved image quality.

Mission Control

The NA-GH6 housing is designed with essential controls placed conveniently for easy access. It includes dual thumb levers and a dual-action lever for quick access to important functions.

HDMI Video Output

The housing is equipped with an M24 bulkhead and M10 threaded mount for external monitor or recorder connection over HDMI. Future firmware updates will enable RAW video output at up to 4K/120p.

Manual Optical Strobe Triggering

Rapid manual triggering is available with the 26309 Mini Flash Trigger, while the Panasonic DMW FL-70 Flash Unit is not compatible with the GH6.

Vacuum Check and Leak Detection System

The NA-GH6 comes with pre-installed electronics for Nauticams Vacuum Check and Leak Detection system, ensuring the housings water-tight integrity. It features a color-coded LED system for monitoring vacuum status and leak detection.

Technical Specifications

• Arm Attachment: 1-inch ballhead
• Body Material: aluminum
• Camera System: Mirrorless (MIL)
• Camera manufacturer: Panasonic
• Strobe connector: optical Sea&Sea
• Tripod connection: Thread
• Port system: N85

• Dimensions: 331mm(W) x 176mm (H) x 136mm(D)
• Weight in air: 2.8 kg
• Buoyancy in water: -0.5kg (incl. camera and batt)
• Depth Rating: 100m

Delivery Content

• Panasonic Lumix GH6 Underwater Housing by Nauticam
• Spare Main O-ring, O-ring remover and lubricant
• Two plugs for optical fiber cable ports
• 2x handles with mounting balls
• Panasonic CR-2032 Battery (for moisture alarm)
• Set of Allen Keys
• Manual Instruction Card
• Padded Housing Bag with shoulder strap
