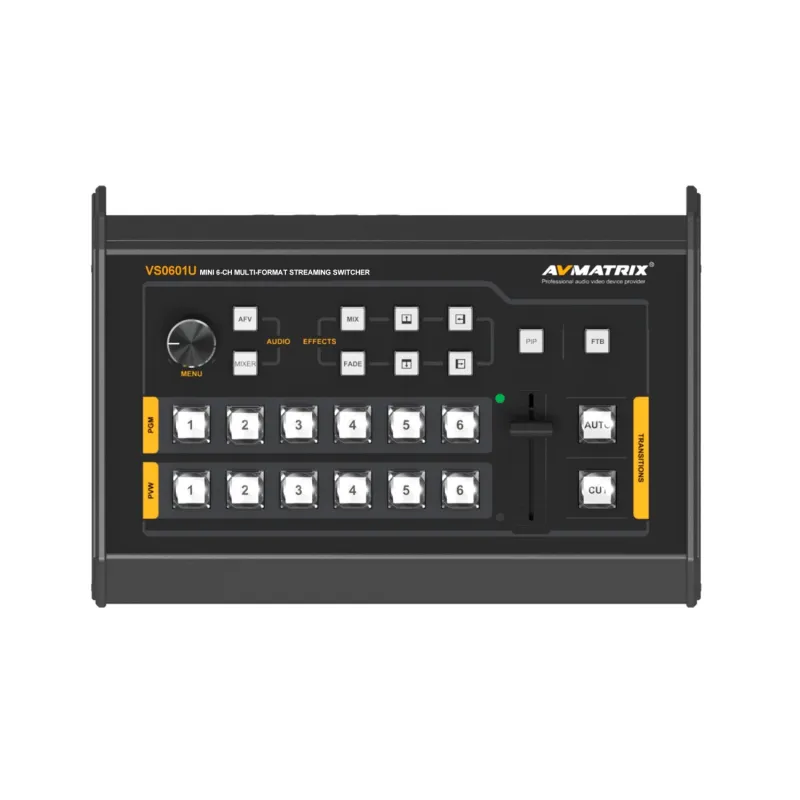

AVMATRIX 6CH HDMI SDI Streaming Video Switcher VS0601U VS0601U

6 channel HDMI/SDI switcher with integrated panel and additional USB-C streaming output. HDMI and SDI output. Multi format video detection, Picture in Picture function

• Uncompressed capture for live streaming, comply with UVC & UAC
• 6 channel inputs: 4×SDI & 2×HDMI
• 1×USB type-C output, 2×SDI & 1×HDMI PGM outputs, 1×SDI & 1×HDMI multiview outputs
• 1×SDI AUX output, can be selected as PGM or PVW
• Multi-format inputauto-detected and PGM outputs format selectable
• T-Bar/ AUTO/ CUT transitions
• Mix/ Fade/ Wipe transition effects
• PIP mode size and position adjustable
• Support audio MIXING and AFV mode
• GPIO for Tally, FTB for emergency
