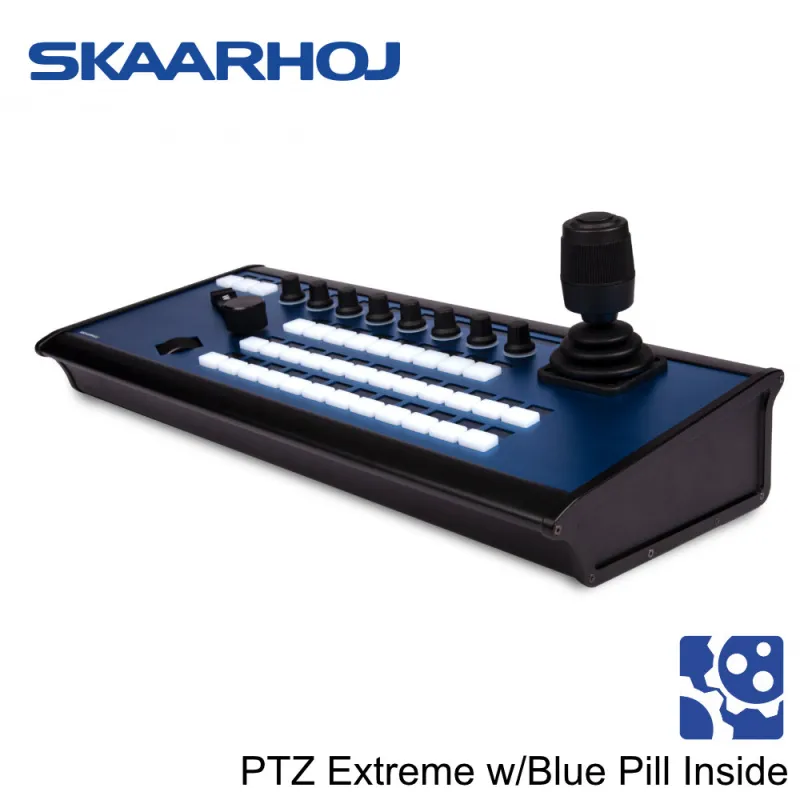

Skaarhoj PTZ Extreme w/Blue Pill Inside PTZ-EXTREME-V2B

PTZ Extreme w/Blue Pill Inside

The PTZ Extreme w/Blue Pill Inside is a premier controller for multi-axis robotic systems, designed for ultimate freedom. It features OLED labeled knobs, fine-tuned ergonomics, a Hall Effect joystick, and custom zoom and focus controls.

With Blue Pill Inside, the hardware is integrated into the controller, eliminating the need for a separate UniSketch panel. This offers a compact solution at the same cost, though it lacks some UniSketch features.

Features

• Blue Pill Inside
• Universal control for multiple devices
• Flexible user configuration
• IP-based remote control with PoE
• Auxiliary keys for iris/focus
• Four-way buttons with legends
• Freely assignable encoders with OLED
• 3-axis Hall Effect Joystick
• Custom aluminum zoom rocker
• Labeled presets for camera selection
• Stepless focus wheel
• Large assignable iris knob
• Ethernet with PoE (IEEE802.3af/t)
• Designed and built in Denmark

Included Items

• 1x PTZ Extreme w/Blue Pill Inside
• 12V power supply

Hardware Specs

• 4-way Buttons: 36
• Encoders: 8
• Analog Components: Zoom rocker, focus wheel, iris encoder, 3-axis joystick
• Customizable OLED Screens: 44
• Programming Port: Ethernet (or Micro USB for manual IP)
• Networking Port: RJ45 Ethernet
• Power Supply: 12V
• Recommended Cables: LAN Cat 6 S/FTP or better
• Power Consumption: 6.9 Watt
• Operating System: skaarOS (Blue Pill)

Dimensions

• Length: 398 mm
• Width: 178 mm
• Height: 72 mm
• Total Weight: 1.868 kg
