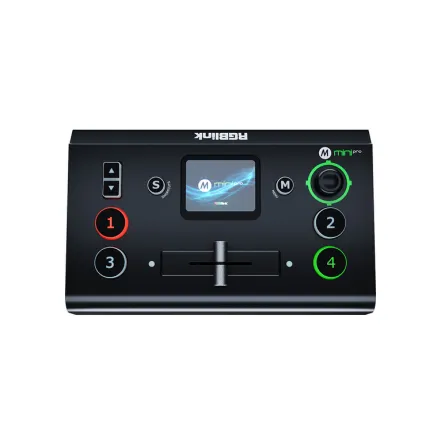

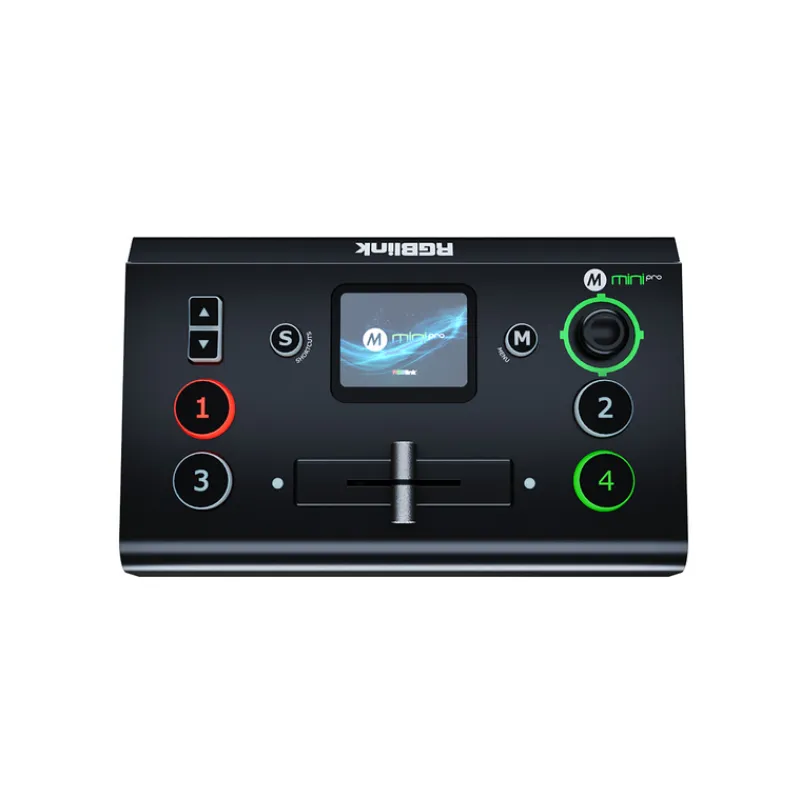

RGBLink Mini-Pro V3 Portable Video Mixer with HDMI Inputs MINI-PRO V3

RGBlink Mini Pro V3 Streaming Switcher (RGMINIP3)

This is the 3rd generation of mini-pro, mini-pro v3 features four 4K HDMI inputs and dual HDMI outputs. Both Line and Mic level audio supported on aboard with variable delay controls to bring audio into sync if needed. USB output supports YUY2, MJPEG and H.264 encoding formats, which can be recognized as webcam for streaming to Facebook, YouTube, ZOOM, etc.

mini and is convenient to carry
USB 2.0 one-key recording in exFAT or FAT32 format with bitrate up to 16Mbps
Built-in LCD for video preview and touch menu operation
USB output supports YUY2 and MJPG format, which can be recognized as webcam for streaming
Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolutions up to 4K@60
Support RTMP(S) network streaming up to 2 platforms
Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or AUX
Save and load PTZ presets. One-click for preset recall
Mix for 4-channel HDMI embedded and 2-channel external audio
5-direction joystick and toggle for controlling PTZ camera (IP VISCA Protocol supported)
AUTO and WIPE Switch mode available
Specify either green or blue as the key color for Chroma Key
15 transition effects
Support APP and TAO Cloud integrated control, compatible with mobile devices and desktop

Mini-pro is built with LCD touch screen to display video sources. mini-pro supports TAO Cloud integrated control, simultaneous streaming to 4 live streaming platforms via RTMP(S) and 24/7 recording with capacity of hard drive up to 2TB. Mini-pro is packed with features including dynamic output control, multi-view preview, picture in picture, Chroma Key, transitions, on board PTZ camera controls and much more.

In the Box
1 Mini Pro V3
1 One for two audio cables
1 External Power supply
1 International socket adapters
1 USB-C cable
1 Quick guide
