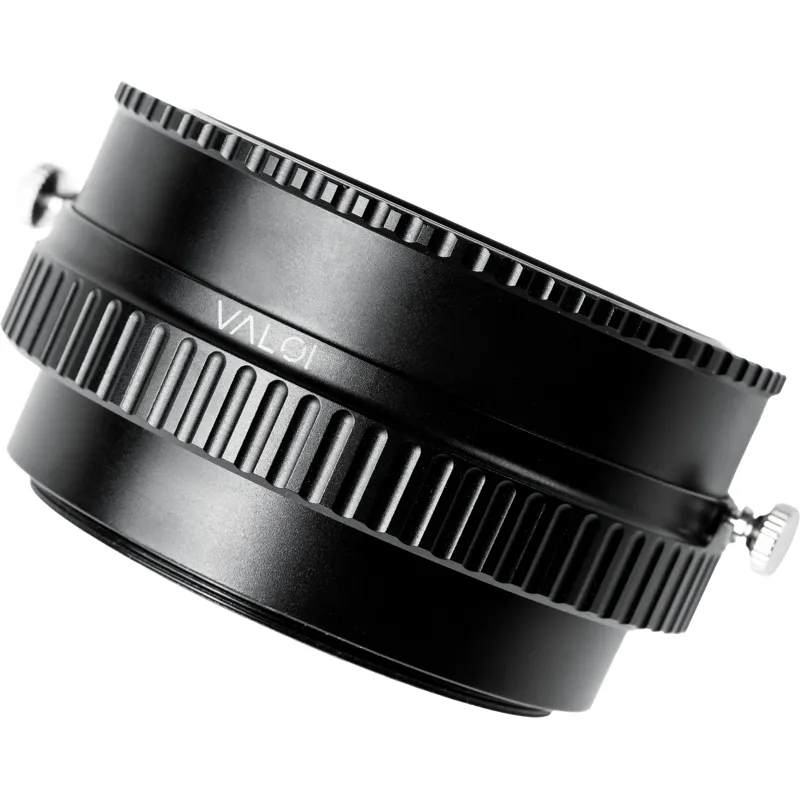

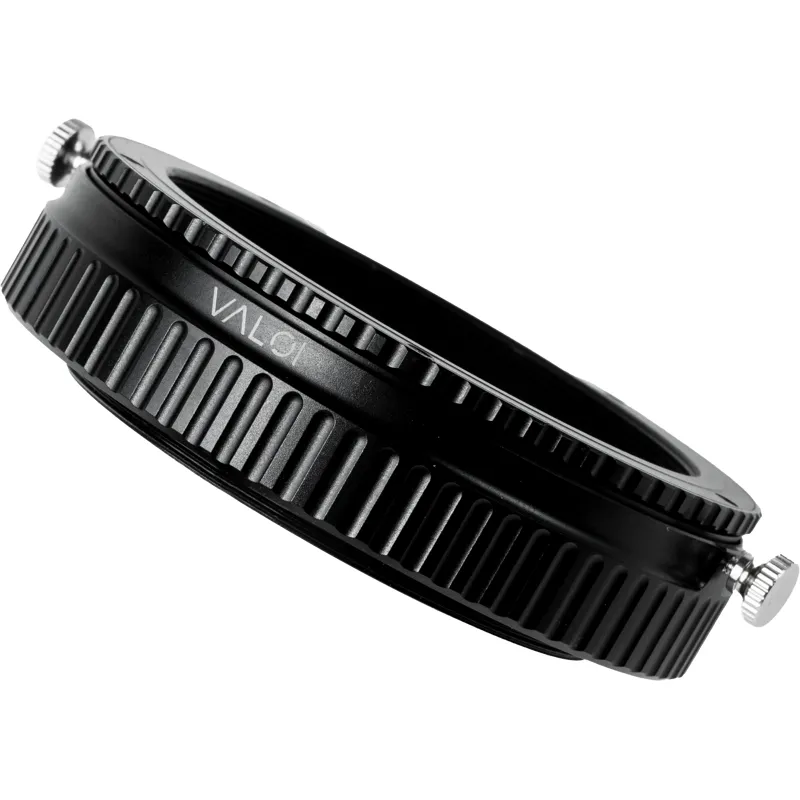

VALOI EASY PRECISION FRAMING HELICOID VLEZPFH

Helicoid for Easy35 and Easy120

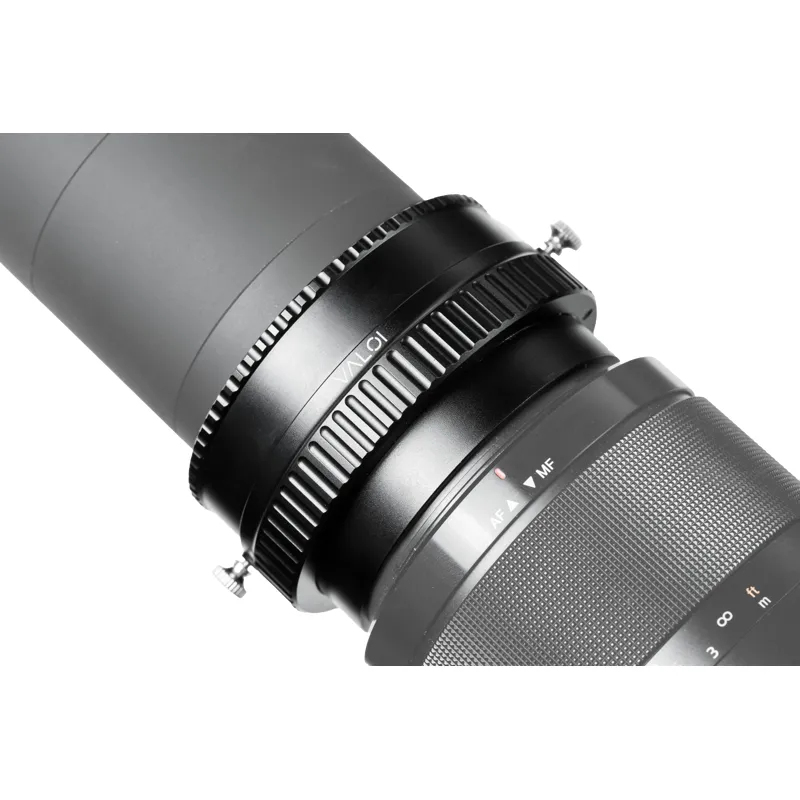

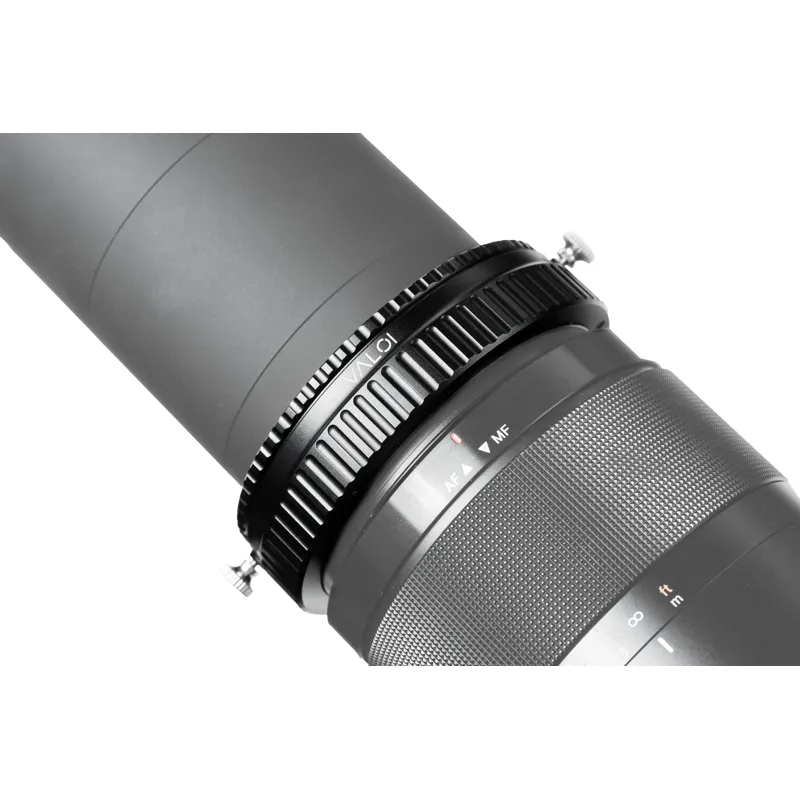

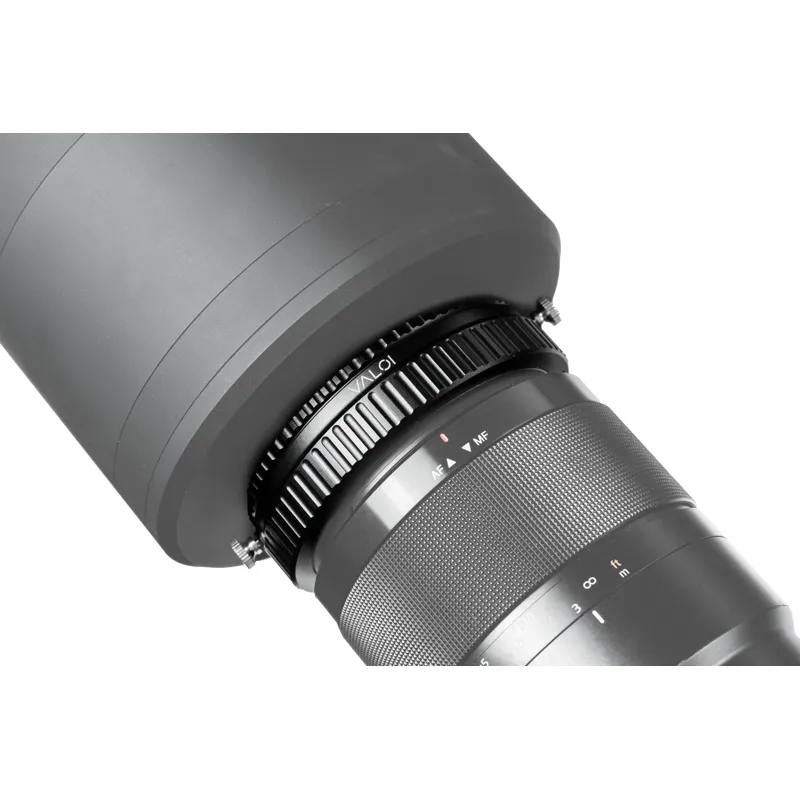

The helicoid attaches to the distance tubes of the easy35 and easy120. Simply place it between your lens and the tubes, adjust, lock, and begin scanning.

Technical Specifications

• Thread: 62x0.75 (compatible with easy35 and easy120)
• Length: 20mm (collapsed) to 40mm (extended)
• Adjustment length: 20mm
• Core material: Brass
• Shell and thread material: Anodized aluminum
• Features: Locking screw

Stepless Adjustment for Framing

For precise framing beyond standard tubes, the helicoid allows for stepless adjustments. This is beneficial for maximizing resolution and achieving desired aesthetics without cropping in post-processing.

Solid Locking Mechanism

The helicoid adjusts smoothly to your preferred length and locks securely with two thumb screws, preventing any movement and maintaining focus.

• Note: Heavy cameras may still shift the helicoid when used vertically. Test with your equipment first.

Includes

• Precision Framing Helicoid

Compatibility

Compatible with easy35 and easy120, as well as most lenses and cameras.

• Note: Heavy cameras may still shift the helicoid when used vertically. Test with your equipment first.

Materials

Constructed from durable materials, the helicoid features a brass core for precision and an aluminum shell for lightness and stability.

• Product without packaging
• Length: 92mm
• Width: 80mm
• Height: 22mm
• Weight: 128g
