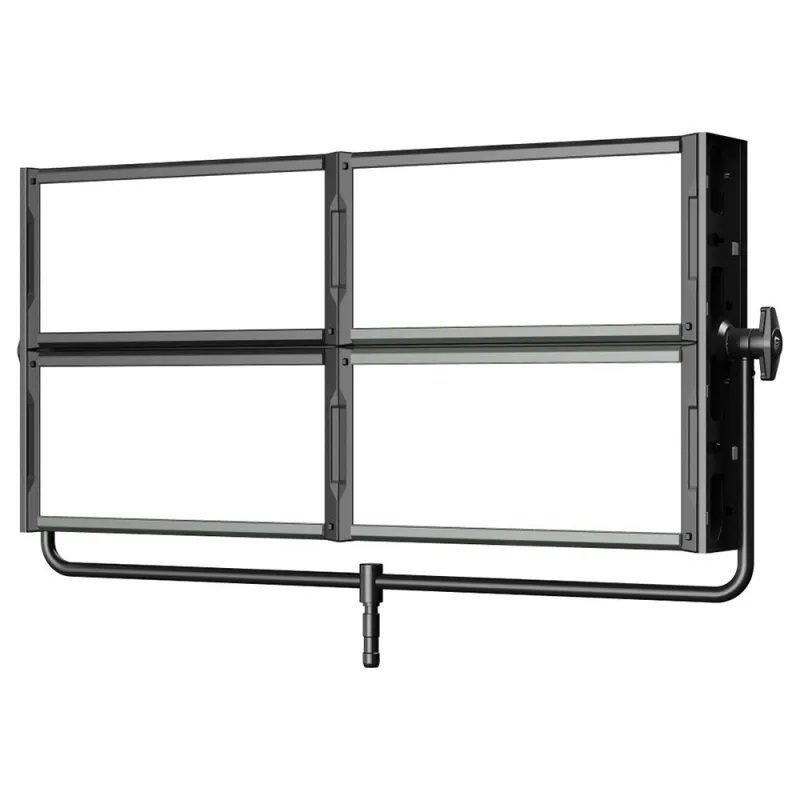

Litepanels Gemini 2x1 Hard RGBWW LED Panel Quad Array Light Kit

The Gemini 2x1 Hard Quad Array Light Kit provides exceptional power and versatility. Complete with 4x Gemini 2x1 Hard panels, quad yoke, bracket, and hardware to support four Gemini light fixtures in a stacked configuration for use as a single large light source measuring approximately 51 x 25". This array includes a steel 1 1/8" Jr pin to be used in heavy duty light stands and grip.

• Stacks 4x Gemini 2x1 Hard panels on top of each other to create a large, powerful source of quality lighting
• Fast assembly - utilizes the Gemini 2x1's yoke channel
• Control all Geminis with one menu via Master/Replica mode in settings with daisy chain of DMX (RJ45 Cat 5 or 5-Pin XLR)
• Wireless control via CRMX

Included in delivery
• 4x Gemini 2x1 Hard EU Power cable (940-2101)
• Quad Gemini 2x1 stacking Kit with Yoke (900-3604)
• 3x RJ45 connector
• 3x AC power-thru cable

Specifications

Dimensions

1300x650x180mm

Weight

55 kg

Color accuracy

CRI: 95, TLCI: 97

Lux

Daylight Lux @10ft/3m: 23,000 (no diff)
8,000 (Ultra Light diff)
2,800 (Domed diff)

Beam Angle (no diffuser)

20º

Beam Angle (Domed diffuser)

>100º

Mount

Junior pin (removable)

Voltage Range

Voltage Range: 100-240VAC, 26-33VDC

Low End Dimming

From 0.1%
