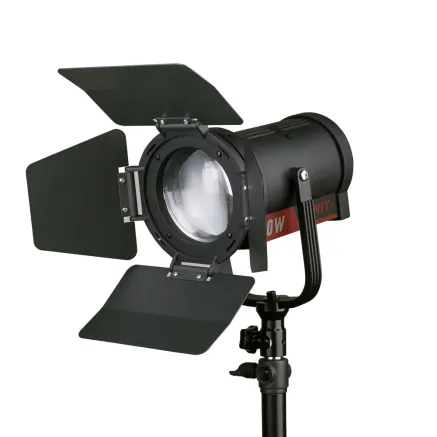

Swit FL-C60D - Bi-color Portable 60W LED Spot Light FL-C60D

Super bright and long-life COB-LED

FL-C60D portable LED spot light adopts Chip-On-Board LEDs of 50,000 hours lifetime, 60W power, bi-color, DMX adjusting focus angle, as the key light of interview light kit or field video productions.

• 60W super bright COB LED light
• 15°-60° Spot/Flood adjustable
• 2700K-8000K continuously adjustable
• 0-100% flick-free dimming
• Super high CRI Ra 95, TLCI 97
• DMX512 controlled color, dimmer, angle
• LCD display color, dimmer and DMX
• Silent mode by fans switching off
• LED overheat detection and protection
• 4-leaf metal barn doors
• U-shape and lighting stand mount

Spot /Flood Adjust

15° - 60° Electromotion/DMX adjust

FL-C60D outputs 15° - 60° beam angle adjusting by Electromotion knob or DMX. The illuminance is as high as 25000Lux @ 1 meter. The following output illuminances at different distances are for reference:

Bi-color temperature

2700K-8000K continuously adjustable

FL-C60D COB-LED alternated with 2700K and 8000K LEDs, and the output color temperature can be continuously adjustable between 2700K and 8000K.

Accurate Color Reveal

CRI Ra 95; TLCI 97

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while FL-C60D offers the super high CRI at 95 and TLCI at 97, and will not lost the object original colors.

LCD Display and Control

Press knobs to enter Quick Adjusting Mode

FL-C60D has 3 knobs to control dimmer, color temperature and spot angle. The Dimmer and Color Temperature knobs can be pressed down to enter quick adjusting mode, and long pressed down to enter DMX address setting and Fan on/off control.

DMX512 Channels

Dimmer, Color temperature and Spot angle

FL-C60D adopts standard 5-pin DMX input, supports
DMX512 protocol, and adjusts dimmer, color temperature and spot angle by DMX controller.
FL-C60D occupies 3 DMX addresses:
n = Dimmer 0-100%
n+1 = Color temperature 2700-8000K
n+2 = Spot angle 15°-60°
Long press the Dimmer knob for 2 seconds, to enter DMX address setting.

USB Power Output

To power the Wireless DMX Receiver

FL-C60D provides a 5V USB power output socket, to power the SWIT Pocket Wireless DMX Receiver.
Refer to: LA-WR8 Pocket Wireless DMX controller

11-36V Wide Input Voltage

4-pin XLR DC input, provide V/Gold mount plate

FL-C60D supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and provides with V-mount or Gold mount plate adaptor to fix onto light stand, and power the light by D-tap to 4-pin XLR DC cable.

• FL-C60D Light
• AC-DC Adaptor
• S-7200S V-mount plate with clamp
• S-7101 D-tap to 4-pin XLR cable

• Beam angle - 15°- 60°
• Max illuminance - 1m: Spot 25000Lux,Flood 4000Lux
• 2m: Spot 6250Lux,Flood 1000Lux
• 3m: Spot 2700Lux,Flood 445Lux
• Color temperature - 2700K～8000K
• CRI - 95
• TLCI - 97
• USB out - 600mA
• Power - Approx. 60W
• Working voltage - DC11V～36V
• Dimensions - 111×120×235mm
• weight-2.1kg
