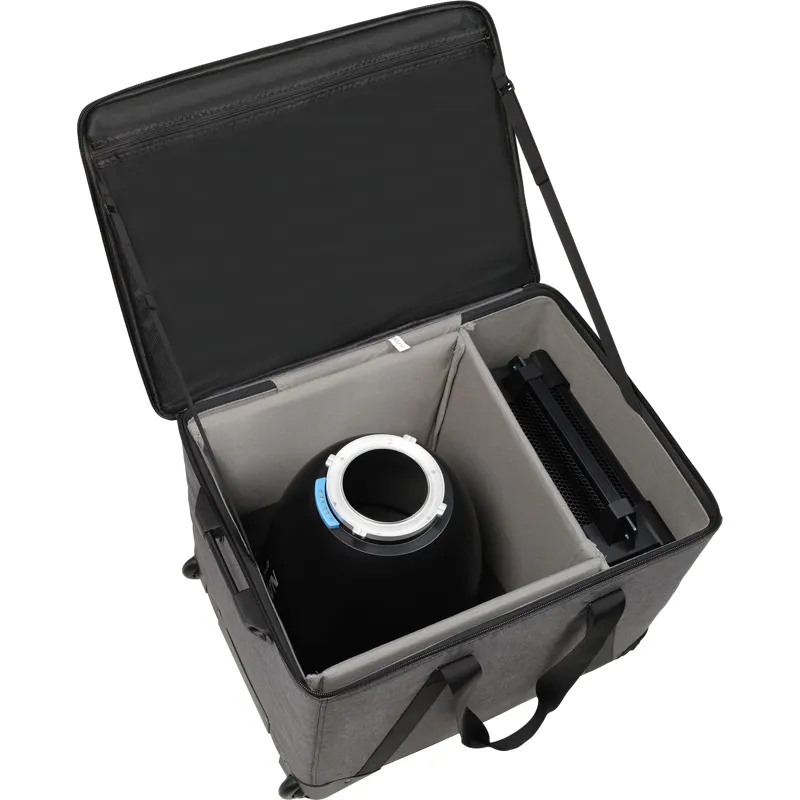

NANLUX EVOKE 2400B SPOT LIGHT WITH 45 REFLECTOR IN SOFT BAG EVOKE 2400B ST-KIT

Evoke 2400B: Leading Illumination Innovation

Nanlux: A Leader in LED Lighting
Nanlux excels in motion picture LED lighting innovation. The Evoke 2400B integrates the output of a 4KW HMI or 10KW Tungsten with Green-Magenta adjustment across the CCT range. Its IP55 weather-resistant housing is lighter than other models with similar output.

Unprecedented Illumination Output

• Output: 41,910 lux at 3M (with a 45 reflector / 5600K)
• Rated Power: 2400W
• CCT Range: 2700K-6500K

The Evoke 2400B offers exceptional efficiency, surpassing traditional light sources with features like flicker-free operation, adjustable color temperature, and no preheating delays, enhancing lighting setups and saving time during shoots.

G/M 80: From Cold to Warm

Unlike traditional bi-color LEDs, the Evoke 2400B features a green and magenta adjustment function, ensuring consistent color temperature along the Planck curve. This allows for creative flexibility in matching light sources and fine-tuning image aesthetics.

True-to-life Color Rendition

• CRI Average: 96
• TLCI Average: 97
• TM-30 Rf Average: 95
• TM-30 Rg Average: 100
• SSI (3200K): 84
• SSI (5600K): 74

Nanlux has enhanced the Evoke 2400Bs color reproduction for superior performance in demanding productions.

Lightweight & Rugged Design

Constructed with magnesium alloy and rated IP55, the Evoke 2400B is both durable and lightweight, weighing only 15kg/33lbs. Its power supply is only slightly heavier than the Evoke 1200B, making it ideal for various production setups.

User-Friendly Controls

The fixture features an intuitive interface with buttons, knobs, and a 3.5-inch LCD screen for easy control. Brightness can be adjusted in 0.1 increments, and it supports wired and wireless control methods.

Advanced Control Options

• Wire Controller: Port for wired control communication.
• DMX/RDM: 5-pin XLR ports for stable group control.
• Art-Net/sACN: Two LAN ports for efficient control.
• NANLINK APP: Wireless control via built-in modules.
• LumenRadio: CRMX signal transmission compatibility.

Intelligent Heat Dissipation

The Evoke 2400B features an adjustable cooling system with four fan modes, maintaining a low noise level of 29 dBA in SMART mode, ideal for interviews and sound-sensitive environments.

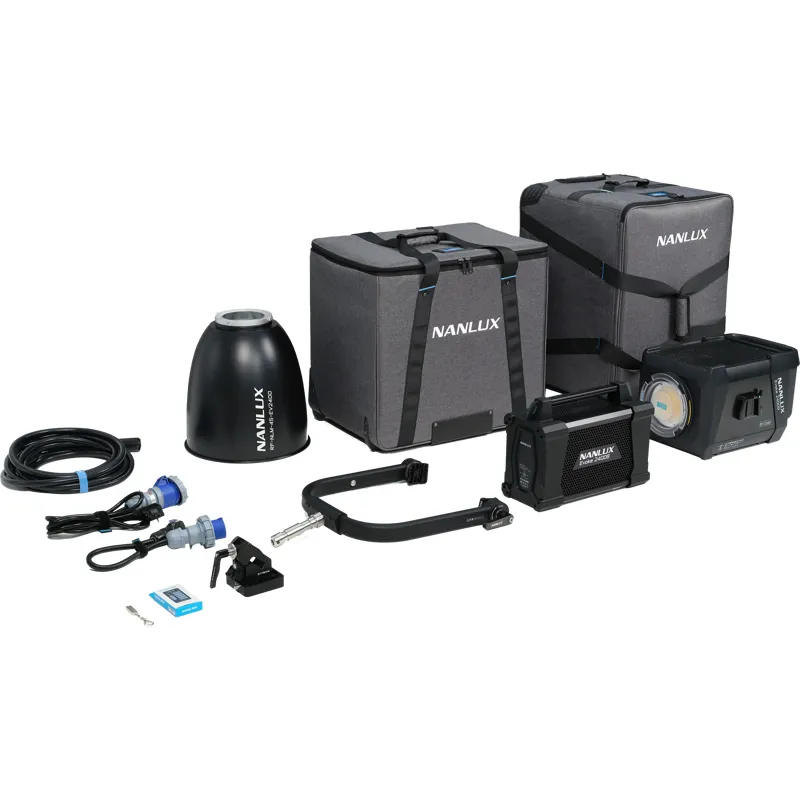

In the Box

• Evoke 2400B: 1
• Yoke: 1
• USB Flash Drive: 1
• Quick Release Clamp: 1
• Remote Controller: 1
• DC Connection Cable (7.5 m): 1
• AC Power Cable: 1
• User Manual: 1
• Trolley Case: 1
• Power Supply: 1
• 45 Reflector: 1
• Trolley Case: 1
