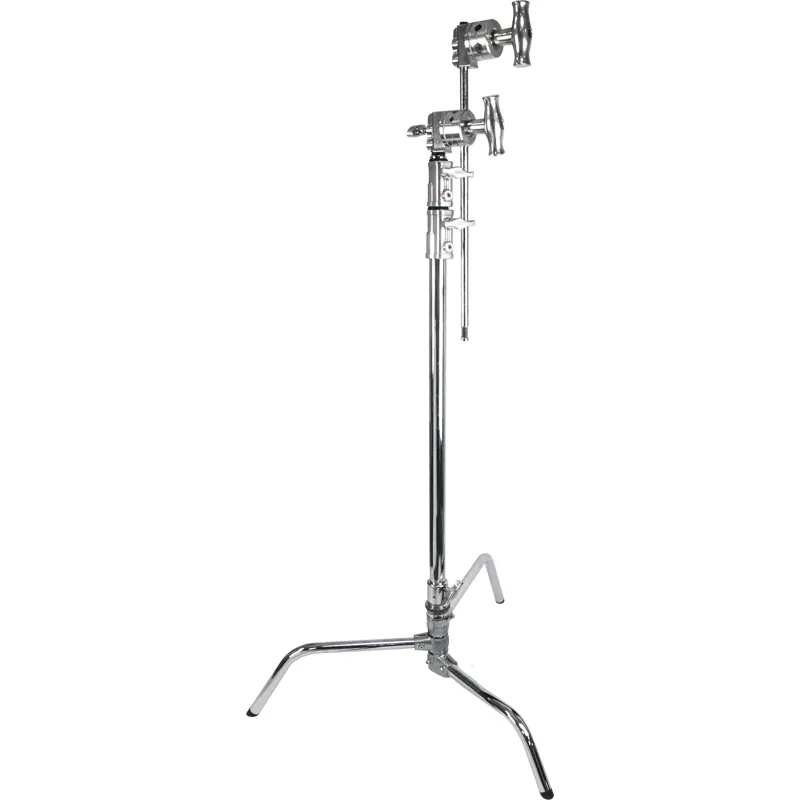

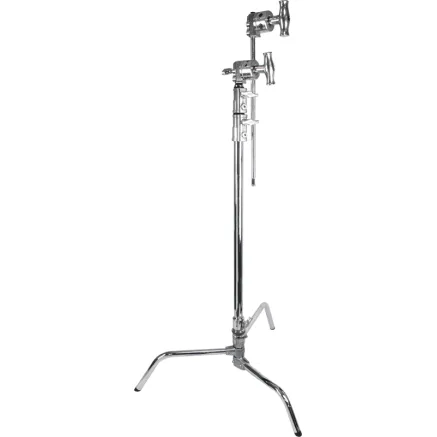

KUPO CT-20MK 20MASTER C-STAND WITH T-BASE-SI.KIT CT-20MK

Master C Stand Features

The Master C Stand is outfitted with a patented spring ring locking system that removes all tension from the legs, allowing gravity to do the work for you. A turtle base is an industry term where the riser section can be quickly removed from the base for easy transportation, and the base can be used with a stand adapter for a low mounting position.

Grip Arm Specifications

The 20 Grip Arm with Hex Stud features a 2 1/2 grip head mounted on the end of a 20 piece of steel tubing, 5/8 (16mm) in diameter, and finished with a faceted hex stud to keep lighting fixtures in position when they are placed on the end of the arm.

Grip Head Design

The surface of the tubing is painstakingly machined to create a rough texture, ensuring a non-slip surface. The 2 1/2 grip head consists of a pair of rotating aluminum discs attached to a 5/8 (16 mm) receiver. The discs have four different sized V-shaped jaws to accept any accessory with a 5/8, 1/2, 3/8, or 1/4 mounting stud or tubing. The V-shaped jaws have teeth that securely grab whatever is mounted between the plates. The 2-1/2 grip head features an oversized ergonomic T handle and dedicated roller bearings designed for maximum torque.

Included Components

• Includes 20 Master C-Stand with Turtle Base, one 2.5 Grip Head, and one 20 Grip Arm with a 5/8 hex stud to keep lighting fixtures securely in position.
• Unique patented innovative spring ring locking system allowing for easy set-up and take down.
• Base is five times stronger than aluminum.
• Easily remove the column and attach it to the Kupo Runway Base to create a strong, sturdy, and safe rolling stand.
• Fitted with captive locking t-knobs on the column.
