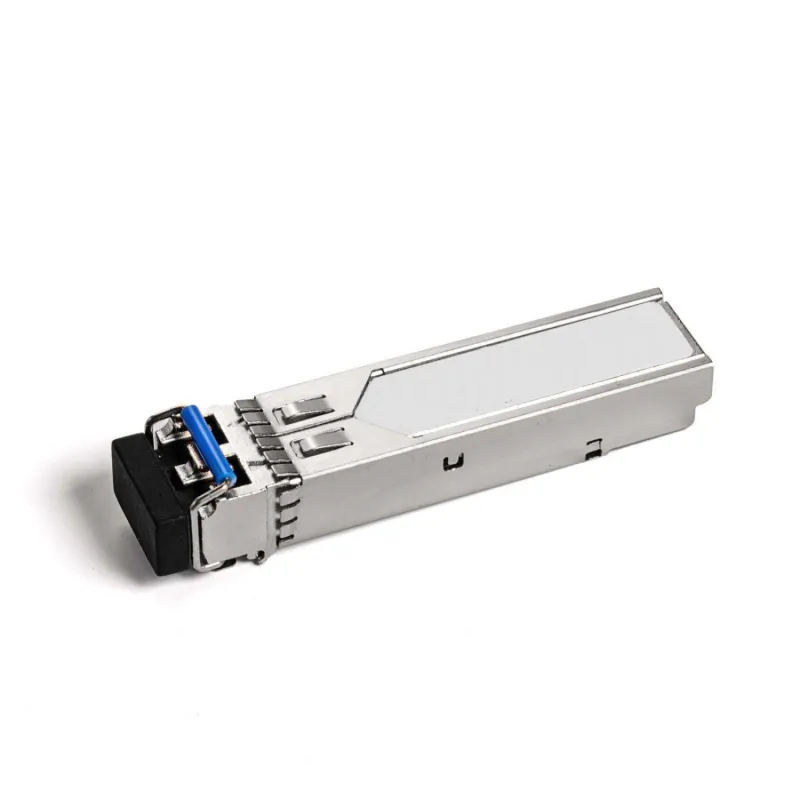

Lilliput 3 Gb/s Video SFP Optical Transmitter 3G-SFP-LC-TX
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
- Metal enclosure for lower EMI
- 1310nm DFB laser
- Supports video pathological patterns for SD-SDI, HD-SDI, and 3G-SDI
- Non-MSA pinout
- Digital diagnostic functions available through the I2C interface
- Compatible with SFP Multi-Source Agreement (MSA) and SFF-8472
- RoHS compatible
- 3.3V single power supply
| Type of Product | Wireless Video Transmission Systems |
The Lilliput 3 Gb/s Video SFP Optical Transmitter is an SFP module designed to facilitate the conversion of an electrical SDI signal into an optical signal for transmission over fiber. It's built to deliver high performance in the presence of SDI pathological patterns for SMPTE 259M, 344M, 292M, and 424M serial rates. It pairs with an optional corresponding receiver to deliver high-performance duplex video transmission via single-mode fiber over distances up to 12.4 miles. It transmits data rates from 50 Mb/s to 2.97 Gb/s and is fully compliant with the SMPTE 297M-2006 standard, which relates to fiber/SDI transmission.
Consisting of two sections, the 3 Gb/s Video SFP Optical Transmitter features a DFB laser transmitter and an MCU control unit, with both modules satisfying class I laser safety requirements
