REAN RT4FC-B Mini XLR Female Connector, 4-Pole, Black Metal RT4FC-B

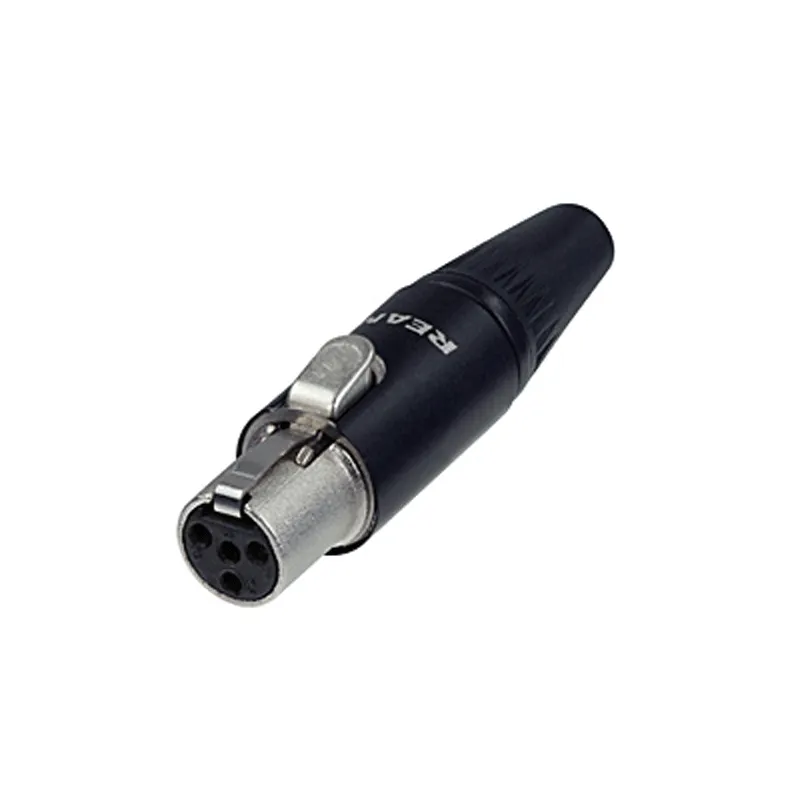

REAN RT4FC-B (Female) Mini XLR Cable Connector

The REAN RT4FC-B (Female) is a 4-pole mini XLR cable connector featuring a black metal housing and gold-plated contacts.

Technical Specifications

• Contact resistance: 10 m
• Rated voltage 1min: 0.5 kVdc
• Insulation resistance: > 1 G
• Rated current per 1 contact: 5 A
• Cable diameter: 2.0 - 4.0 mm

• Lifetime: > 5000 connection cycles
• Conductor: max. 0.22 mm, max. 24 AWG
• Soldering

• Cable cap: ABS/TPU
• Contact finish: Au
• Contact Material: Bronze (CuSn6)
• Polyamide (PA 6.6 30 GR)
• Connector body: Zinc diecast (ZnAl4Cu1)
• Connector body finish: black chrome
