Rean NYS231BG 3-Pole 3.5mm Plug Connector, Black Metal Handle NYS226BG

SKU: 25049

Model: NYS226BG

Ean: 0000000000000

Būklė: Naujas produktas

Pristatymas per 5 - 7 dienas
€ 5,45 su mokesčiais

Type of ProductJungtis
Connector3,5mm
ColorBlack

Rean NYS231BG

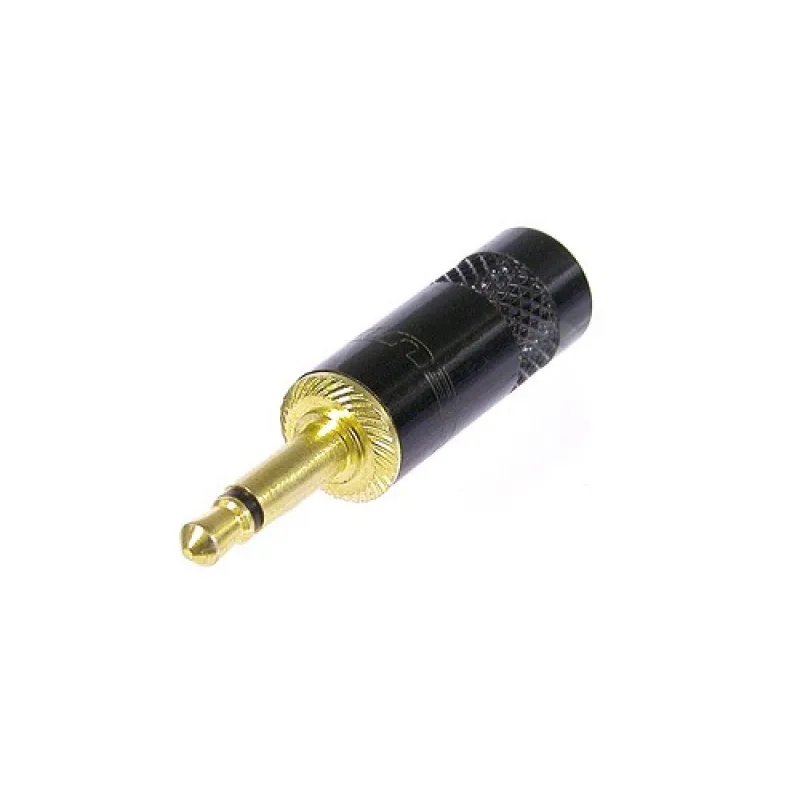

3 pole 3.5 mm plug, black metal handle, gold plated contacts

Technical Specifications

  • Rated voltage: 0.5 kVdc
  • Insulation resistance: U> 1 G
  • Cable diameter: 2.0 - 4.0 mm
  • Life span: 1,000 mating cycles
  • Force required to connect connectors: 20 N
  • Force required to disconnect connectors: 10 N
  • Wire retention: Soldering
  • Contact surface treatment: Gold (Au)
  • Contact material: Brass (CuZN39Pb3)
  • Connector body: Zinc diecast (ZnAl4Cu1)
  • Connector body surface treatment: Black chrome
