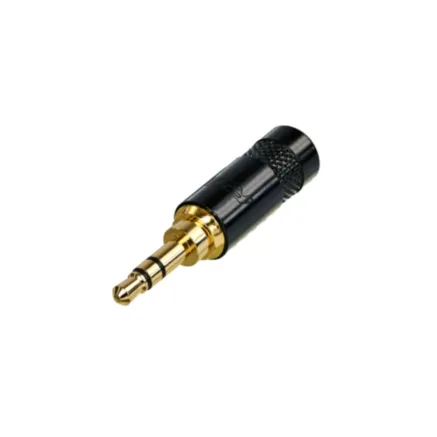

Rean NYS231BG 3-Pole 3.5mm Plug Connector, Black Metal Handle NYS231BG
Pristatymas per 15 - 27 dienas
| Type of Product | Other Accessories |
Rean NYS231BG- 3 pole 3.5 mm plug, black metal handle, gold plated contacts
Specifications
- Rated voltage: 0.5 kVdc
- Insulation resistance: U > 1 G
- Cable diameter: 2.0 - 4.0 mm
- Lifetime: 1,000 mating cycles
- Force required to connect connectors: 20 N
- Force required to disconnect connectors: 10 N
- Wire retention: Soldering
- Contact surface finish: Au
- Contact material: Bronze (CuZN39Pb3)
- Connector body: Zinc diecast (ZnAl4Cu1)
- Connector body surface finish: black chrome
- Easy to assemble
- Robust metal housing with best flex relief
- Shielded system for high noise immunity and EMI protection
- Millionfold proven chuck type strain relief for up to 4.00 mm cable diameter
