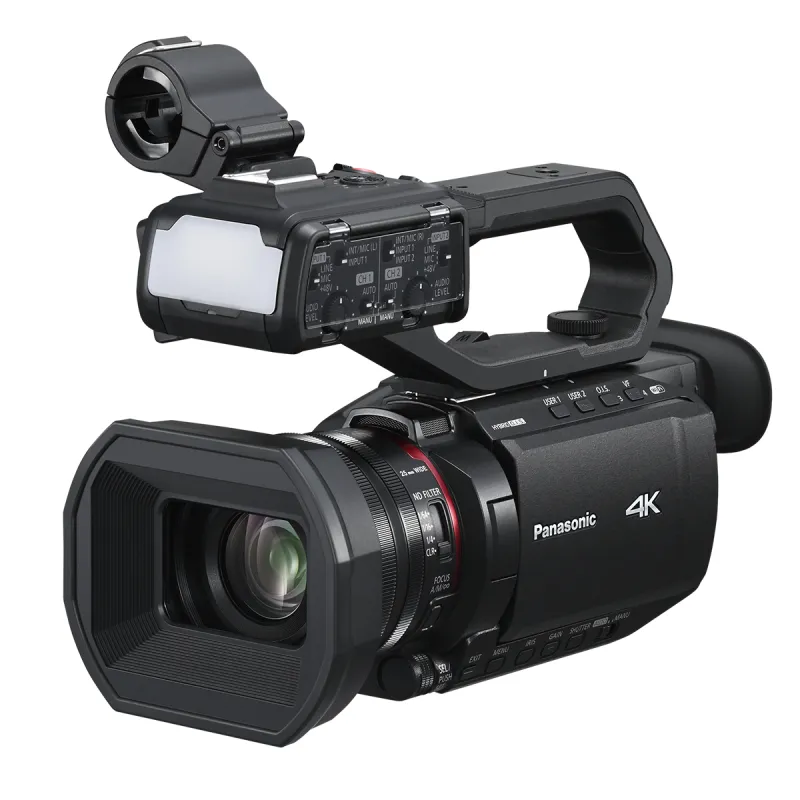

Panasonic AG-CX20EJ 4K Camcorder with 24x Optical Zoom AG-CX20EJ

AG-CX20 Camcorder Overview

The AG-CX20 features advanced optical technology in a lightweight, compact design, ideal for high-quality video production. It will be available from February 2025.

Optical Performance

The integrated lens provides a 24x optical zoom (25mm wide-angle to 600mm telephoto), achieving 32x zoom in 4K and 48x in FHD. The 4-Drive Lens System allows independent movement of four lens groups, maintaining a compact body.

Manual Control and ND Filters

Two Manual Rings enable precise adjustments for focus and zoom/aperture control. ND filters are selectable (1/4, 1/16, 1/64, and clear glass) for protection against solar condensation.

IP Video Streaming

The AG-CX20 supports live FHD streaming via Wi-Fi and Ethernet, with 3G-SDI and simultaneous HDMI output. It also supports the SRT protocol and NDI HX2 for seamless live streaming.

Autofocus and Stabilization

With AF/AE face detection, the camcorder ensures fast, stable focus tracking in both 4K and Full HD. The 5-axis HYBRID O.I.S. combines optical and electronic stabilization for sharp images, even at 24x zoom.

Recording Capabilities

It supports various data streams and formats, including internal recording in 422 10-bit at up to 29.97 fps in UHD and 59.94 fps in FHD. Future firmware updates will add low-bitrate recording formats for FHD MP4.

Key Features

• 4K 60p recording
• 25mm wide-angle lens with 24x optical zoom
• High-precision autofocus
• 5-axis hybrid image stabilization
• HEVC 420 10-bit recording
• Built-in ND filter
• Dual SD card slots
• USB PD (Type-C)
• Long battery life
• Built-in Wi-Fi
• 3G SDI output
• Simultaneous SDI/HDMI output

Available from February 2025.
